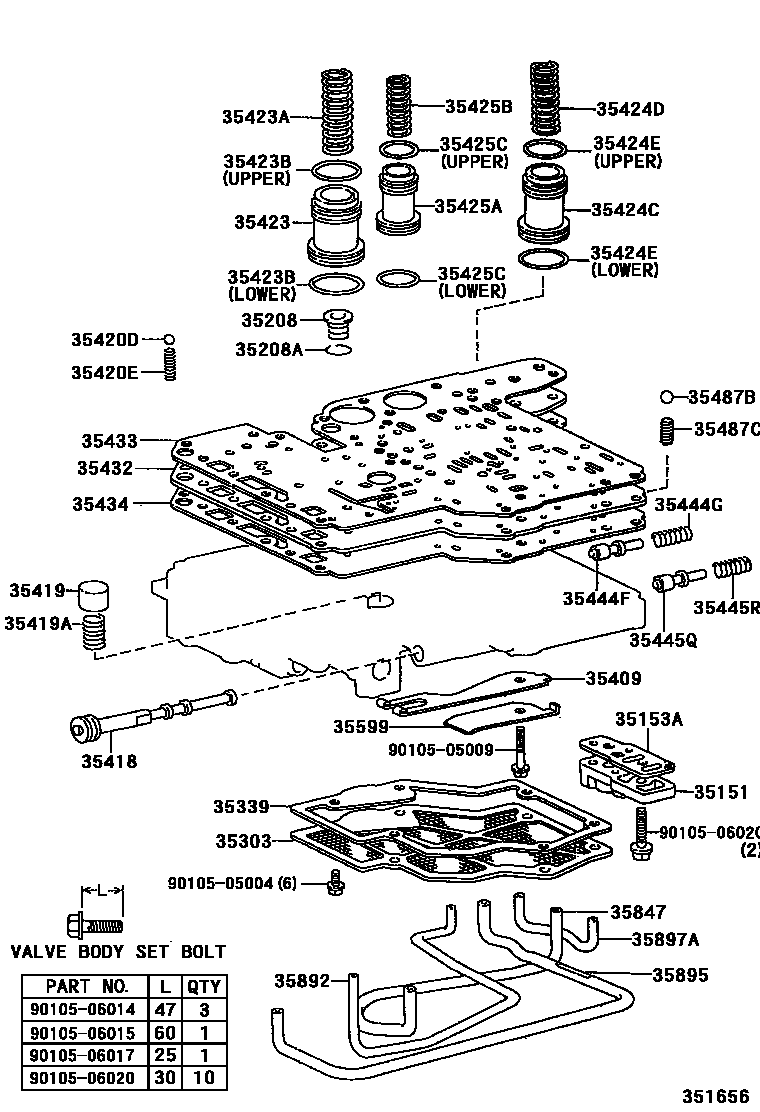

VALVE BODY & OIL STRAINER (ATM)

0001 1A43DE,A43DF,A45DE,A45DF,A46DE0002 1A43DE,A43DF,A45DE,A45DF,A46DE0003 1A43DE,A43DF,A45DE,A45DF,A46DE

35151COVER, TRANSMISSION CASE, LOWER

main35151-30020iCXR1#,2#,TCR1#,2#..ATM199201-199912

35153AGASKET, TRANSMISSION CASE LOWER COVER

main35153-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-26010iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35208-28010iCXR1#,2#..ATM199201-199608

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iCXR1#,2#,TCR1#,2#..ATM199201-199912

35303STRAINER SUB-ASSY, OIL

main35303-30060iCXR1#,2#,TCR1#,2#..ATM199201-199912

35339GASKET, OIL STRAINER

main35339-28030iCXR1#,2#,TCR1#,2#..ATM199201-199912

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-28010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35418VALVE, MANUAL

main35418-30060iCXR1#,2#,TCR1#,2#..ATM199201-199912

35419VALVE, CHECK, NO.1

main35419-22010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-15015iCXR1#,2#,TCR1#,2#..ATM199201-199503

main90501-16083iCXR1#,2#..ATM199403-199912

35420BODY ASSY, LOWER VALVE

main35420-28190iCXR1#,2#,TCR1#,2#..ATM199703-199809

main35420-28191iCXR1#,2#..ATM199809-199908

main35420-28200iTCR1#,2#199709-199912

main35420-30172iTCR1#,2#199201-199707

35420DBALL (FOR LOWER VALVE BODY)

main35496-22030iCXR1#,2#,TCR1#,2#..ATM199201-199912

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iCXR1#,2#,TCR1#,2#..ATM199201-199912

35423PISTON, B-2 ACCUMULATOR

main35421-26010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-21014iTCR1#,2#..ATM199201-199912

main90501-28005iCXR1#,2#..ATM199201-199908

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-23194iCXR1#,2#,TCR1#,2#..ATM..(D,ELU,F,G,GLUX,S,X,XLUX)199201-199808

main90301-29011iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-29187iCXR1#,2#,TCR1#,2#..ATM..(D,ELU,F,G,GLUX,S,X,XLUX)199201-199808

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iCXR1#,2#,TCR1#,2#..ATM199201-199912

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20063iCXR1#,2#,TCR1#,2#..ATM199201-199912

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21012iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-22185iCXR1#,2#,TCR1#,2#..ATM..(D,ELU,F,G,GLUX,S,X,XLUX)199201-199808

main90301-26012iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-26190iCXR1#,2#,TCR1#,2#..ATM..(D,ELU,F,G,GLUX,S,X,XLUX)199201-199808

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35425APISTON, C-2 ACCUMULATOR

main35441-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-27013iTCR1#,2#..ATM199201-199912

main90501-27016iCXR1#,2#..ATM199201-199908

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-18186iCXR1#,2#,TCR1#,2#..ATM..(D,ELU,F,G,GLUX,S,X,XLUX)199201-199808

sub90301-18010

main90301-26012iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-26190iCXR1#,2#,TCR1#,2#..ATM..(D,ELU,F,G,GLUX,S,X,XLUX)199201-199808

35432PLATE, VALVE BODY, NO.1

main35432-22101iTCR1#,2#..ATM199201-199402

main35432-22102iTCR1#,2#..ATM199402-199608

sub35432-22103

main35432-22103iTCR1#,2#199608-199912

main35432-28040iCXR1#,2#..ATM199201-199402

main35432-28041iCXR1#,2#..ATM199402-199908

35433GASKET, VALVE BODY, NO.1

main35433-22040iCXR1#,2#,TCR1#,2#..ATM199306-199610

sub35433-22041

main35433-22041iCXR1#,2#,TCR1#,2#..ATM199610-199912

main35433-30072iCXR1#,2#,TCR1#,2#..ATM199201-199306

sub35433-22040

35434GASKET, VALVE BODY, NO.2

main35434-22040iCXR1#,2#,TCR1#,2#..ATM199306-199610

sub35434-22041

main35434-22041iCXR1#,2#,TCR1#,2#..ATM199610-199912

main35434-30062iCXR1#,2#,TCR1#,2#..ATM199201-199306

sub35434-22040

35444FVALVE, INTERMEDIATE COAST MODULATOR

main35444-22010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35444GSPRING (FOR INTERMEDIATE COAST MODULATOR VALVE)

main90501-09686iCXR1#,2#,TCR1#,2#..ATM199201-199912

35445QVALVE, LOW COAST MODULATOR

main35444-22010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35445RSPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

main90501-08725iTCR1#,2#..ATM199201-199912

main90501-11009iCXR1#,2#..ATM199201-199908

35487BBALL, CHECK, NO.4

main35487-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iCXR1#,2#,TCR1#,2#..ATM199201-199912

35599COVER, MANUAL DETENT SPRING

main35599-28010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35847TUBE, TRANSMISSION LUBE APPLY

main35847-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35892TUBE, OVERDRIVE BRAKE

main35892-26010iCXR1#,2#,TCR1#,2#..ATM199703-199912

main35892-30030iCXR1#,2#,TCR1#,2#..ATM199201-199703

sub35892-26010

35895TUBE, FRONT CLUTCH APPLY

main35895-30030iCXR1#,2#,TCR1#,2#..ATM199201-199912

35897ATUBE, 1ST & REVERSE BRAKE, NO.1

main35897-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

9010505004

main90105-05004

9010505009

main90105-05009

9010506014

main90105-06014

9010506015

main90105-06015

9010506017

main90105-06017

9010506020

main90105-06020

43 parts on this diagram · 3 diagrams in section
