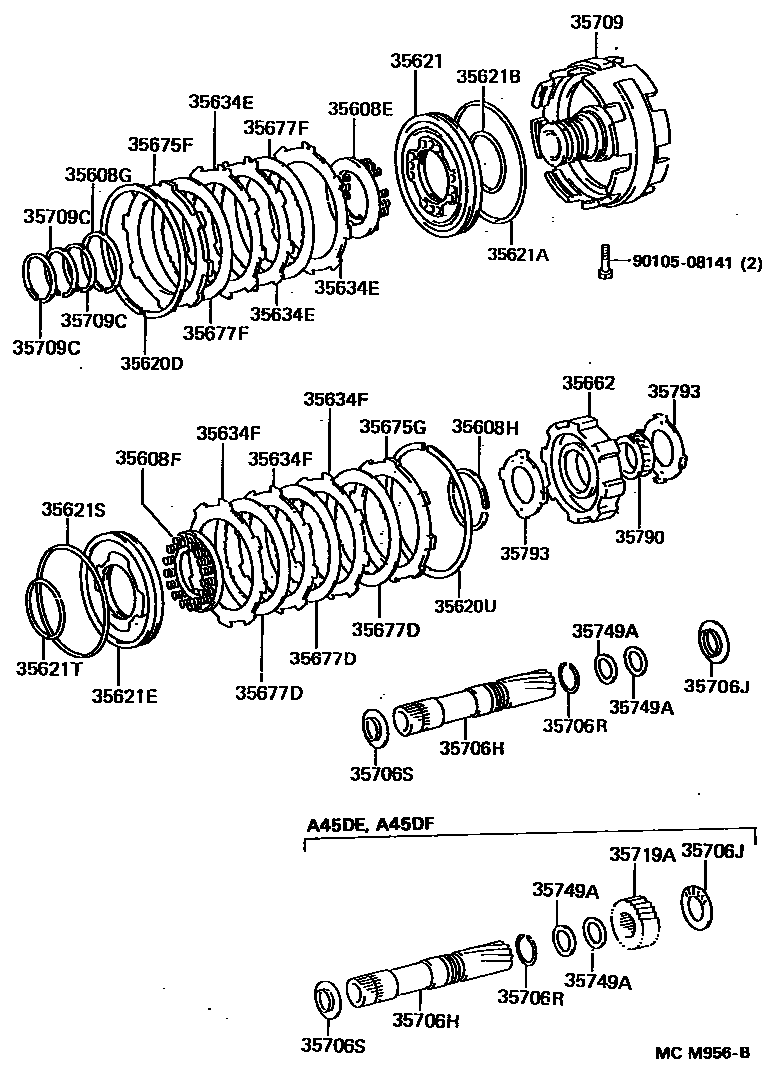

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608ESPRING SUB-ASSY, BRAKE PISTON RETURN (ATM)

main35608-20010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35608FSPRING SUB-ASSY, REAR BRAKE PISTON RETURN (ATM)

main35608-30020iCXR1#,2#,TCR1#,2#..ATM199201-199912

35608GRING, SHAFT SNAP (FOR ATM BRAKE PISTON RETURN SPRING)

main90520-52262iCXR1#,2#,TCR1#,2#..ATM199201-199912

35608HRING, SHAFT SNAP(FOR ATM REAR BRAKE PISTON RETURN SPRING)

main90520-52262iCXR1#,2#,TCR1#,2#..ATM199201-199912

35620DRING (FOR BRAKE)

main90521-99139iCXR1#,2#,TCR1#,2#..ATM199201-199912

35620URING (FOR REAR BRAKE)

main90521-99139iCXR1#,2#,TCR1#,2#..ATM199201-199912

35621PISTON, BRAKE, NO.1

main35624-22010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99110iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-99192iCXR1#,2#,TCR1#,2#..ATM199201-199808

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-56007iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-57188iCXR1#,2#,TCR1#,2#..ATM199201-199808

35621EPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iCXR1#,2#,TCR1#,2#..ATM199201-199808

sub90301-99107

main90301-99107iCXR1#,2#,TCR1#,2#..ATM199808-199912

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-56007iCXR1#,2#,TCR1#,2#..ATM199808-199912

main90301-57188iCXR1#,2#,TCR1#,2#..ATM199201-199808

35634EPLATE, CLUTCH (FOR BRAKE)

main35634-22060iCXR1#,2#,TCR1#,2#..ATM199201-199912

35634FPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22060iCXR1#,2#,TCR1#,2#..ATM199201-199608

main35648-22010iCXR1#,2#,TCR1#,2#..ATM199201-199608

main35648-30020iCXR1#,2#,TCR1#,2#..ATM199608-199912

35662HUB, BRAKE

main35662-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35675FFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iCXR1#,2#,TCR1#,2#..ATM199201-199912

sub35675-22140

35675GFLANGE, BRAKE (FOR REAR BRAKE)

main34625-22010iCXR1#,2#,TCR1#,2#..ATM199201-199912

sub35676-22030

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-22060iCXR1#,2#,TCR1#,2#..ATM199201-199608

main35677-22070iCXR1#,2#,TCR1#,2#..ATM199608-199912

35677FDISC, CLUTCH (FOR BRAKE)

main35677-30100iCXR1#,2#,TCR1#,2#..ATM199201-199608

main35677-30140iCXR1#,2#,TCR1#,2#..ATM199608-199912

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30050iCXR1#,2#..ATM199201-199908

main35706-30070iTCR1#,2#..ATM199201-199912

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-21001iCXR1#,2#..ATM199201-199908

main90374-24003iTCR1#,2#..ATM199201-199912

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iCXR1#,2#,TCR1#,2#..ATM199201-199912

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iCXR1#,2#,TCR1#,2#..ATM199201-199912

35709SUPPORT SUB-ASSY, CENTER

main35709-12020iCXR1#,2#,TCR1#,2#..ATM199201-199912

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35719AGEAR, REAR PLANETARY SUN

main35719-30050iCXR1#,2#..ATM199201-199908

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010iCXR1#,2#..ATM199201-199908

main35749-30010iTCR1#,2#..ATM199201-199912

35790CLUTCH ASSY, 1 WAY

main35791-30020iCXR1#,2#,TCR1#,2#..ATM199201-199912

35793RETAINER, 1 WAY CLUTCH

main35793-22011iCXR1#,2#,TCR1#,2#..ATM199201-199912

9010508141

main90105-08141

30 parts on this diagram · 1 diagram in section
