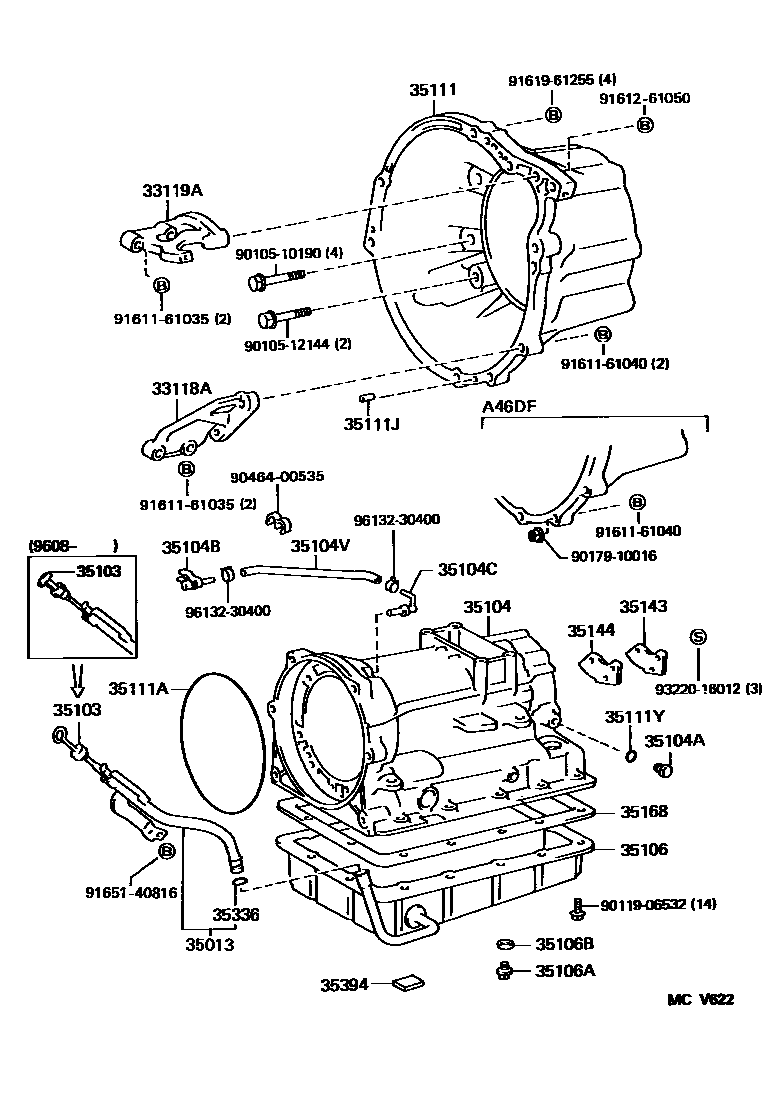

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A43DE,A43DF,A46DE,A46DF 0002 1A45DE,A45DF 0003 1A45DE,A45DF

33118APLATE, STIFFENER, RH(ATM)

main33118-28030iTCR1#..ATM199201-199912

main33118-28040iCXR1#..ATM199201-199908

33119APLATE, STIFFENER, LH(ATM)

main33119-28030iTCR1#,2#..ATM199201-199801

sub33119-28031

main33119-28031iTCR1#,2#199801-199912

main33119-28040iCXR1#,2#..ATM199201-199908

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28061iTCR1#,2#..ATM199201-199608

main35013-28062iTCR1#,2#199608-199912

main35013-28070iCXR1#,2#..ATM199201-199608

main35013-28071iCXR1#,2#..ATM199608-199908

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-28031iTCR1#,2#..ATM199201-199608

main35103-28032iTCR1#,2#199608-199912

main35103-28040iCXR1#,2#..ATM199201-199608

main35103-28041iCXR1#,2#..ATM199608-199908

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-28010iCXR1#,TCR1#..ATM199201-199408

sub35104-28011

main35104-28011iCXR1#,TCR1#..ATM199408-199912

main35104-28020iCXR2#,TCR2#..ATM199201-199408

sub35104-28021

main35104-28021iCXR2#,TCR2#..ATM199408-199912

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iCXR1#,2#,TCR1#,2#..ATM199201-199912

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03099iCXR1#,2#,TCR1#,2#..ATM199201-199912

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03098iCXR1#..ATM199201-199908

main90930-03122iCXR2#,TCR1#,2#..ATM199201-199912

35104VHOSE (FOR BREATHER PLUG)

main90445-11084iCXR2#,TCR2#..ATM199201-199204

sub90445-11090

main90445-11096iCXR1#,TCR1#..ATM199201-199912

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-28010iCXR1#,TCR1#..ATM199201-199411

main35106-28040iCXR1#,TCR1#..ATM199411-199912

sub35106-28010

main35107-28030iCXR2#,TCR2#..ATM199201-199411

sub35107-28050

main35107-28050iCXR2#,TCR2#..ATM199411-199912

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iCXR1#,2#,TCR1#,2#..ATM199201-199912

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-28020iTCR1#,2#..ATM199201-199308

sub35111-28060

main35111-28040iCXR1#,2#..ATM199201-199908

main35111-28060iTCR1#,2#..ATM199308-199912

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iCXR1#,2#,TCR1#,2#..ATM199201-199912

35111JPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10026iTCR1#,2#..ATM199201-199912

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iCXR1#,2#,TCR1#,2#..ATM199201-199912

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iCXR1#,2#,TCR1#,2#..ATM199201-199912

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCXR1#,2#,TCR1#,2#..ATM199201-199912

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCXR1#,2#,TCR1#,2#..ATM199201-199912

9010510190

main90105-10190

9010512144

main90105-12144

9011906532

main90119-06532

9017910016

main90179-10016

9046400535

main90464-00535

9161161035

main91611-61035

9161161040

main91611-61040

9161261050

main91612-61050

9161961255

main91619-61255

9165140816

main91651-40816

9322016012

main93220-16012

9613230400

main96132-30400

33 parts on this diagram · 3 diagrams in section
