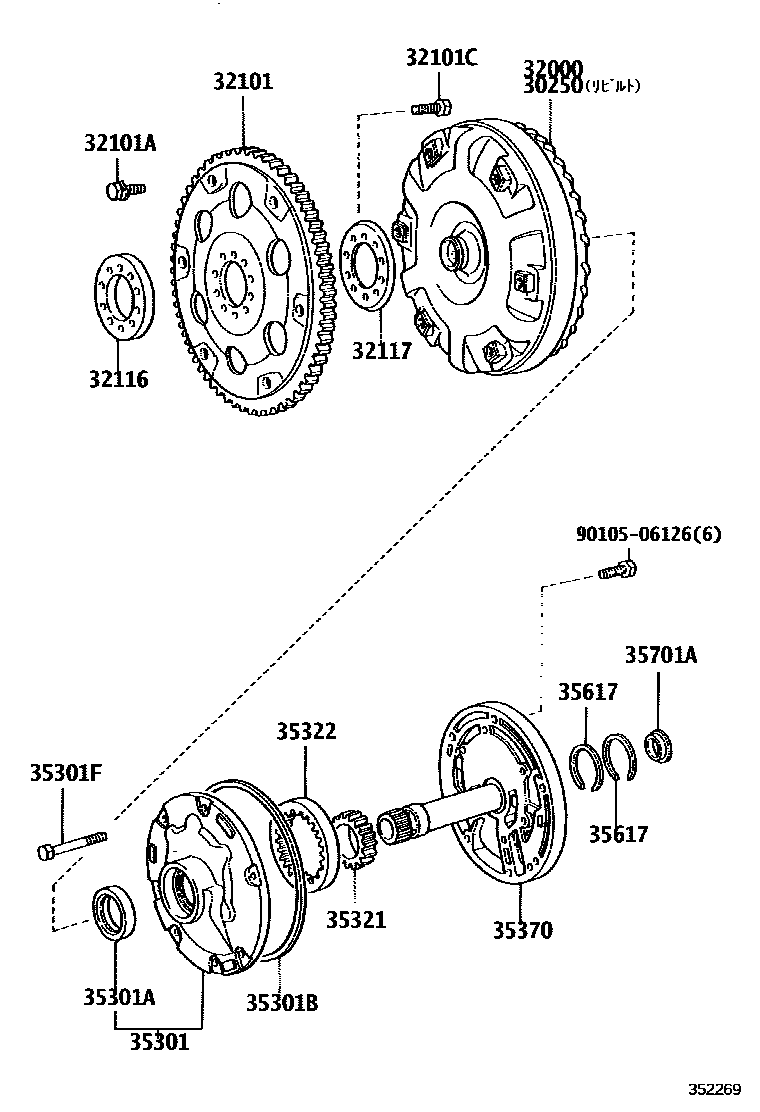

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A43DE,A43DF,A46DE,A46DF 0002 1A45DE,A45DF

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-28030iCXR1#,2#,TCR1#,2#..ATM199201-199908

main30250-28060iTCR1#,2#..ATM199308-199912

32000CONVERTER ASSY, TORQUE

main32000-28030iCXR1#,2#,TCR1#,2#..ATM199201-199908

main32000-28060iTCR1#,2#..ATM199308-199912

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTCR1#,2#..ATM199201-199912

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009iCXR1#,2#,TCR1#,2#..ATM199201-199912

main90119-09010iCXR1#,2#,TCR1#,2#..ATM199201-199912

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTCR1#,2#..ATM199201-199912

main90109-10150iCXR1#,2#..ATM199201-199908

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iTCR1#,2#..ATM199201-199912

32117SPACER, DRIVE PLATE, REAR

main32117-20040iCXR1#,2#..ATM199201-199908

main32117-26010iTCR1#,2#..ATM199201-199912

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iCXR1#,2#,TCR1#,2#..ATM199201-199912

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08137iCXR1#,2#,TCR1#,2#..ATM199201-199912

35321GEAR, FRONT OIL PUMP DRIVE

main35321-22020iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35321-22030iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35321-22040iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35321-22050iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35321-22060iCXR1#,2#,TCR1#,2#..ATM199201-199912

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22020iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35322-22030iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35322-22040iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35322-22050iCXR1#,2#,TCR1#,2#..ATM199201-199912

main35322-22060iCXR1#,2#,TCR1#,2#..ATM199201-199912

35370SHAFT ASSY, STATOR

main35370-14012iCXR1#,2#,TCR1#,2#..ATM199201-199912

35617RING, CLUTCH DRUM OIL SEAL

main35617-32010iCXR1#,2#,TCR1#,2#..ATM199201-199912

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iCXR1#,2#,TCR1#,2#..ATM199201-199912

9010506126

main90105-06126

17 parts on this diagram · 2 diagrams in section
