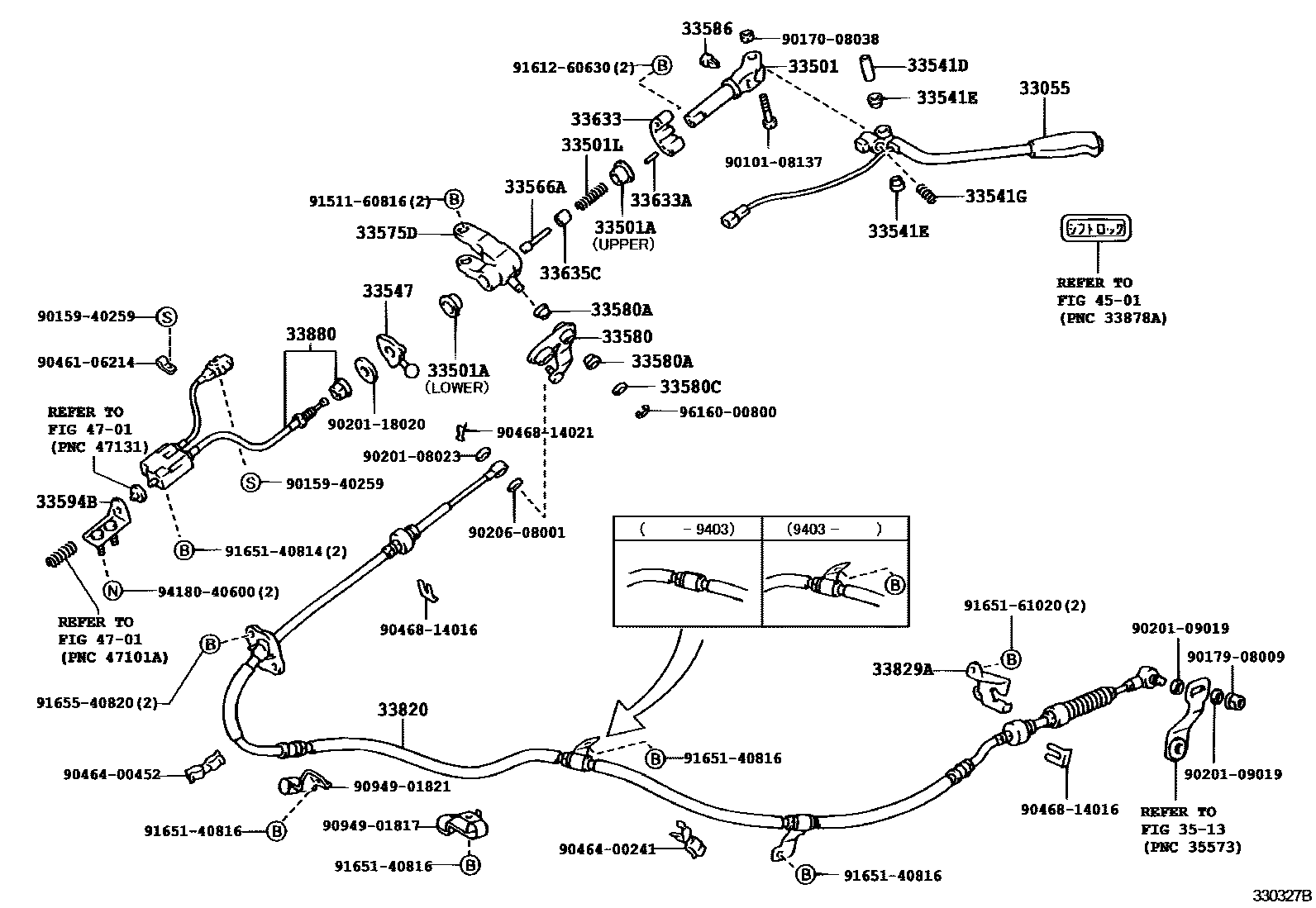

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-28110iCXR1#,2#,TCR1#,2#..ATM199201-199501

main33055-28170iCXR1#,2#,TCR1#,2#..ATM199501-199801

sub33055-28171

sub33586-28012

main33055-28171iCXR1#,2#,TCR1#,2#..ATM199801-199912

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-28160iCXR1#,2#,TCR1#,2#..ATM199201-199912

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-18003iCXR1#,2#,TCR1#,2#..ATM199201-199912

main90386-18004iCXR1#,2#,TCR1#,2#..ATM199201-199912

33501LSPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)

main90501-06077iCXR1#,2#,TCR1#,2#..ATM199201-199912

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-08112iCXR1#,2#,TCR1#,2#..ATM199201-199912

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-12013iCXR1#,2#,TCR1#,2#..ATM199201-199303

main90386-12034iCXR1#,2#,TCR1#,2#..ATM199303-199912

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16130iCXR1#,2#,TCR1#,2#..ATM199201-199301

sub90905-01008

sub33586-28011

main90905-01008iCXR1#,2#,TCR1#,2#..ATM199301-199912

33547LEVER, COLUMN SHIFT, NO.3

main33547-28040iCXR1#,2#,TCR1#,2#..ATM199201-199912

33566APIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)

main33566-28010iCXR1#,2#,TCR1#,2#..ATM199201-199912

33575DRETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33575-28040iCXR1#,2#,TCR1#,2#..ATM199201-199912

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-28020iCXR1#,2#,TCR1#,2#..ATM199201-199912

33580ABUSH (FOR SHIFTING BELLCRANK)

main90386-10017iCXR1#,2#,TCR1#,2#..ATM199201-199912

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90201-10119iCXR1#,2#,TCR1#,2#..ATM199201-199912

33586STOPPER, CONTROL SHIFT LEVER

main33586-28010iCXR1#,2#,TCR1#,2#..ATM199201-199301

sub33586-28011

main33586-28011iCXR1#,2#,TCR1#,2#..ATM199301-199801

sub33586-28012

main33586-28012iCXR1#,2#,TCR1#,2#..ATM199801-199912

33594BPLATE, SHIFT LOCK (FOR COLUMN SHIFT)

main33594-28010iCXR1#,2#,TCR1#,2#..ATM199201-199912

33633PLATE, COLUMN SHIFT LEVER DETENT

main33633-28111iCXR1#,2#,TCR1#,2#..ATM199201-199912

33633APIN, SLOTTED SPRING(FOR COLUMN SHIFT LEVER DETENT PLATE)

main90254-04036iCXR1#,2#,TCR1#,2#..ATM199201-199912

33635CGUIDE, WIRE

main33635-28040iCXR1#,2#,TCR1#,2#..ATM199201-199912

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-28230iTCR1#,2#..ATM199201-199912

main33820-28240iCXR1#,2#..ATM199201-199403

main33820-28241iCXR1#,2#..ATM199403-199908

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-28010iCXR1#,2#,TCR1#,2#..ATM199201-199912

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-28021iCXR1#,2#,TCR1#,2#..ATM199201-199912

3513

4501

4701

9010108137

main90101-08137

9015940259

main90159-40259

9017008038

main90170-08038

9017908009

main90179-08009

9020108023

main90201-08023

9020109019

main90201-09019

9020118020

main90201-18020

9020608001

main90206-08001

9046106214

main90461-06214

9046400241

main90464-00241

9046400452

main90464-00452

9046814016

main90468-14016

9046814021

main90468-14021

9094901817

main90949-01817

9094901821

main90949-01821

9151160816

main91511-60816

9161260630

main91612-60630

9165140814

main91651-40814

9165140816

main91651-40816

9165161020

main91651-61020

9165540820

main91655-40820

9418040600

main94180-40600

9616000800

main96160-00800

47 parts on this diagram · 2 diagrams in section
