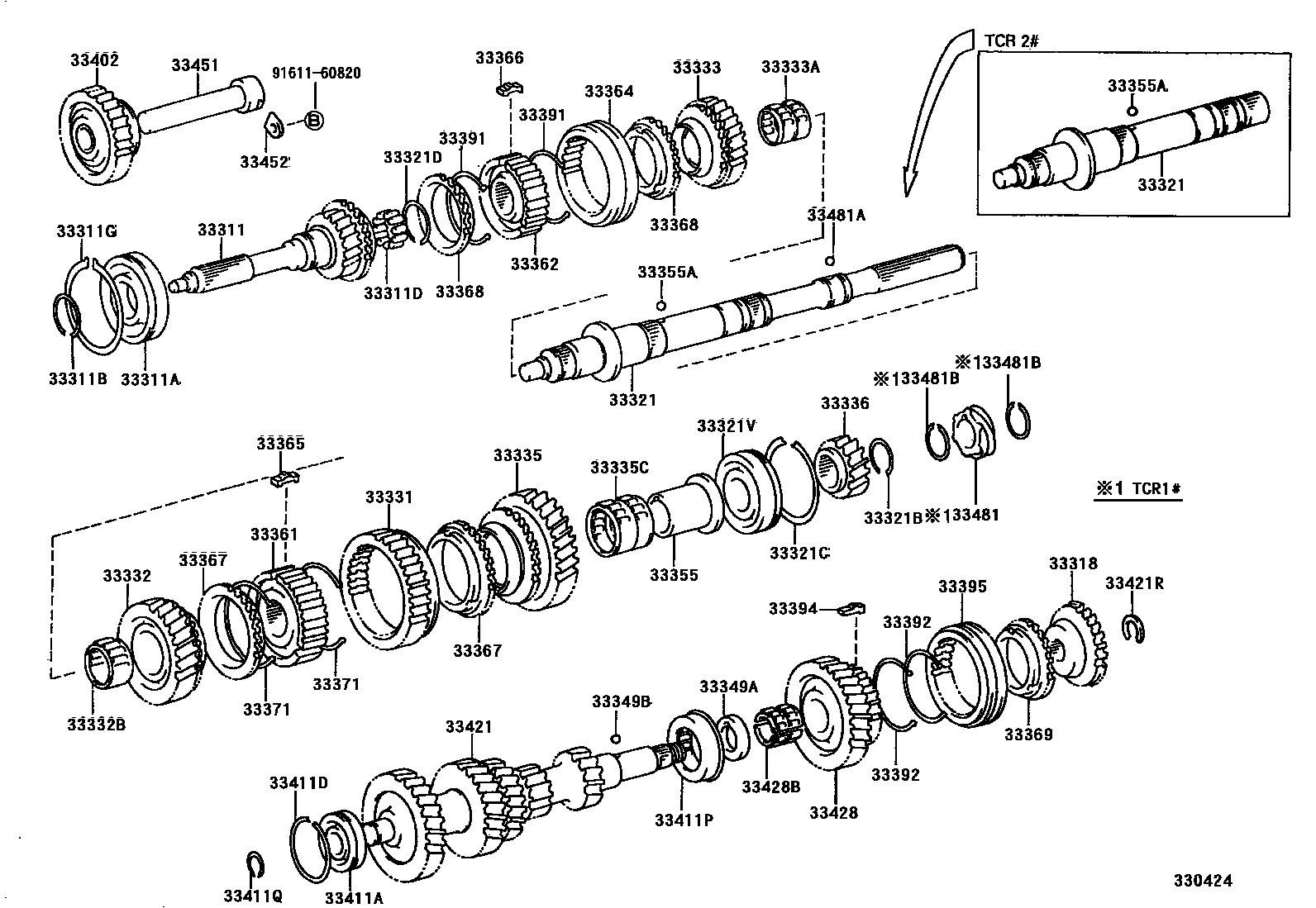

TRANSMISSION GEAR (MTM)

0001 1G53 0002 1W56

33311SHAFT, INPUT

main33301-26040iTCR10,2#..MTM199201-199608

sub33301-35071

main33301-30080iCXR1#,2#..MTM199201-199908

sub33301-30H00

sub33301-30H10

sub33301-30H20

sub33301-30H30

sub33301-30H40

sub33301-30H50

sub33301-30H60

sub33301-30H70

sub33301-30H80

sub33301-30H90

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32024iTCR10,2#..MTM199201-199608

main90363-35033iCXR1#,2#..MTM199201-199908

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iTCR10,2#..MTM199201-199608

main90520-30215iTCR10,2#..MTM199201-199608

main90520-30216iTCR10,2#..MTM199201-199608

main90520-30217iTCR10,2#..MTM199201-199608

main90520-30218iTCR10,2#..MTM199201-199608

main90520-30219iTCR10,2#..MTM199201-199608

main90520-33107iCXR1#,2#..MTM199201-199908

main90520-33132iCXR1#,2#..MTM199201-199908

main90520-33168iCXR1#,2#..MTM199201-199908

main90520-33169iCXR1#,2#..MTM199201-199908

main90520-33170iCXR1#,2#..MTM199201-199908

main90520-33171iCXR1#,2#..MTM199201-199908

main90520-33172iCXR1#,2#..MTM199201-199908

33311DBEARING, INPUT SHAFT

main90361-06002×13iTCR10,2#..MTM199201-199608

main90364-19006iCXR1#,2#..MTM199208-199908

main90364-19043iCXR1#,2#..MTM199201-199208

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-76001iCXR1#,2#..MTM199201-199908

main90520-76002iTCR10,2#..MTM199201-199608

33318PIECE, GEAR SPLINE, NO.5

main33318-35030iTCR10,2#..MTM199201-199608

33321SHAFT, OUTPUT

main33321-26050iTCR10..MTM199201-199608

main33321-28010iTCR2#..MTM199201-199608

main33321-28020iCXR2#..MTM199201-199908

sub33321-28060

sub33362-35060

sub90520-26072

sub90520-26073

sub90520-26074

sub90520-26075

sub90520-26076

sub90520-26077

sub90520-26078

main33321-30120iCXR1#..MTM199201-199908

sub33321-35210

sub33362-35060

sub90520-26072

sub90520-26073

sub90520-26074

sub90520-26075

sub90520-26076

sub90520-26077

sub90520-26078

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25003iCXR1#,2#..MTM199201-199908

main90520-25004iCXR1#,2#..MTM199201-199908

main90520-25005iTCR10,2#..MTM199201-199608

main90520-25006iTCR10,2#..MTM199201-199608

main90520-25009iTCR10,2#..MTM199201-199608

main90520-25010iTCR10,2#..MTM199201-199608

main90520-25011iTCR10,2#..MTM199201-199608

main90520-25012iTCR10,2#..MTM199201-199608

main90520-25013iTCR10,2#..MTM199201-199608

main90520-25014iTCR10,2#..MTM199201-199608

main90520-25015iTCR10,2#..MTM199201-199608

main90520-25016iTCR10,2#..MTM199201-199608

main90520-25017iTCR10,2#..MTM199201-199608

main90520-25270iCXR1#,2#..MTM199201-199908

main90520-25271iCXR1#,2#..MTM199201-199908

main90520-25272iCXR1#,2#..MTM199201-199908

main90520-25273iCXR1#,2#..MTM199201-199908

main90520-25284iCXR1#,2#..MTM199201-199908

main90520-25285iCXR1#,2#..MTM199201-199908

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-71221iTCR10,2#..MTM199201-199608

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iTCR10,2#..MTM199201-199608

main90520-28011iTCR10,2#..MTM199201-199608

main90520-28012iCXR1#,2#,TCR10,2#..MTM199201-199908

main90520-28013iTCR10,2#..MTM199201-199608

main90520-28014iCXR1#,2#..MTM199201-199908

main90520-28015iCXR1#,2#..MTM199201-199908

main90520-28016iCXR1#,2#..MTM199201-199908

main90520-28017iCXR1#,2#..MTM199201-199908

main90520-28018iCXR1#,2#..MTM199201-199908

main90520-28245iCXR1#,2#,TCR10,2#..MTM199201-199908

main90520-28246iTCR10,2#..MTM199201-199608

main90520-28248iTCR10,2#..MTM199201-199608

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-30059iTCR10,2#..MTM199201-199608

main90363-35036iCXR1#,2#..MTM199201-199908

33331GEAR, REVERSE

main33331-30060iCXR1#,2#..MTM199201-199509

main33331-30061iCXR10,20..MTM199509-199908

main33331-35061iTCR10,2#..MTM199201-199608

sub33331-35062

33332GEAR, 2ND

main33033-28010iCXR1#,2#..MTM199201-199403

main33033-28011iCXR10,20..MTM199403-199908

main33033-35021iTCR10,2#..MTM199201-199608

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-38002iTCR10,2#..MTM199201-199608

main90364-43006iCXR1#,2#..MTM199201-199908

33333GEAR, 3RD

main33034-28020iTCR10,2#..MTM199201-199608

sub33034-35030

main33034-30010iCXR1#,2#..MTM199201-199403

main33034-30011iCXR10,20..MTM199403-199908

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-32023iCXR1#,2#..MTM199201-199908

main90364-35005iTCR10,2#..MTM199201-199608

33335GEAR, 1ST

main33032-26020iTCR10,2#..MTM199201-199608

main33032-28030iCXR1#,2#..MTM199201-199908

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-39011iTCR10,2#..MTM199201-199608

main90364-43006iCXR1#,2#..MTM199201-199908

33336GEAR, 5TH

main33336-28020iTCR10,2#..MTM199201-199608

main33336-30030iCXR1#,2#..MTM199201-199908

33349AWASHER, 4TH GEAR

main33349-35010iTCR10,2#..MTM199201-199608

33349BBALL (FOR 4TH GEAR WASHER)

main90360-06004iTCR10,2#..MTM199201-199608

33355RACE, 1ST GEAR BEARING INNER

main33355-35020iTCR10,2#..MTM199201-199608

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iTCR10,2#..MTM199201-199608

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-30030iCXR1#,2#..MTM199201-199908

main33361-35020iTCR10,2#..MTM199201-199608

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-30050iCXR1#,2#..MTM199201-199610

main33362-30051iCXR10,20..MTM199610-199908

main33362-35040iTCR10,2#..MTM199201-199608

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-26020iTCR10,2#..MTM199209-199608

main33364-30030iCXR1#,2#..MTM199201-199403

main33364-30031iCXR10,20..MTM199403-199908

main33364-35030iTCR10,2#..MTM199201-199209

sub33213-35033

sub33220-26010

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-30060×3iCXR1#,2#..MTM199201-199908

main33365-35020×3iTCR10,2#..MTM199201-199608

sub33365-35021

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-30060×3iCXR1#,2#..MTM199201-199908

main33366-35040×3iTCR10,2#..MTM199201-199608

sub33366-35041

33367RING, SYNCHRONIZER, NO.1

main33367-30060iCXR1#,2#..MTM199201-199908

main33368-20012×2iTCR10,2#..MTM199201-199608

33368RING, SYNCHRONIZER, NO.2

main33367-14010×2iTCR10,2#..MTM199201-199608

main33368-30120iCXR1#,2#..MTM199201-199908

33369RING, SYNCHRONIZER, NO.3

main33367-14010iTCR10,2#..MTM199201-199608

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031×2iTCR10,2#..MTM199201-199608

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010×2iTCR10,2#..MTM199201-199608

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33371-14010×2iTCR10,2#..MTM199201-199608

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-30011×3iTCR10,2#..MTM199201-199608

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-26010iTCR10,2#..MTM199201-199305

main33395-26020iTCR10,2#..MTM199305-199608

sub33395-35020

main33395-30020iCXR1#,2#..MTM199201-199405

main33395-30021iCXR10,20..MTM199405-199908

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-30030iCXR1#,2#..MTM199201-199509

main33402-30031iCXR10,20..MTM199509-199908

main33402-35050iTCR10,2#..MTM199201-199608

sub33402-60040

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-25014iCXR1#,2#..MTM199201-199908

main90365-25023iTCR10,2#..MTM199303-199608

main90365-25025iTCR10,2#..MTM199201-199303

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-49222iCXR1#,2#,TCR10,2#..MTM199201-199908

33411PBEARING, COUNTERSHAFT CENTER

main33430-30010iCXR1#,2#..MTM199201-199908

main90365-31006iTCR10,2#..MTM199201-199608

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23057iCXR1#,2#..MTM199201-199908

main90520-23058iCXR1#,2#..MTM199201-199908

main90520-23059iCXR1#,2#..MTM199201-199908

main90520-23060iCXR1#,2#..MTM199201-199908

main90520-23061iCXR1#,2#..MTM199201-199908

main90520-23062iCXR1#,2#..MTM199201-199908

main90520-23089iTCR10,2#..MTM199201-199608

main90520-23090iTCR10,2#..MTM199201-199608

main90520-23115iTCR10,2#..MTM199201-199608

main90520-23143iTCR10,2#..MTM199201-199608

main90520-23144iTCR10,2#..MTM199201-199608

main90520-23145iTCR10,2#..MTM199201-199608

33421GEAR, COUNTER

main33421-28040iTCR10,2#..MTM199201-199608

main33421-28050iCXR1#,2#..MTM199201-199509

sub33301-30H10

main33421-28051iCXR10,20..MTM199509-199908

sub33301-30H30

33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

main90520-19008iTCR10,2#..MTM199201-199608

main90520-19009iTCR10,2#..MTM199201-199608

main90520-19010iTCR10,2#..MTM199201-199608

main90520-19011iTCR10,2#..MTM199201-199608

main90520-19012iTCR10,2#..MTM199201-199608

main90520-19013iTCR10,2#..MTM199201-199608

main90520-19014iTCR10,2#..MTM199201-199608

33428GEAR, COUNTERSHAFT 5TH

main33046-35062iTCR10,2#..MTM199201-199608

main33428-30040iCXR1#,2#..MTM199201-199908

33428BBEARING (FOR COUNTER 5TH GEAR)

main90364-26002iTCR10,2#..MTM199201-199608

33451SHAFT, REVERSE IDLER GEAR

main33451-28010iTCR10,2#..MTM199201-199608

sub33451-28011

main33451-30060iCXR1#,2#..MTM199201-199908

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-30021iCXR1#,2#..MTM199201-199908

main33452-36030iTCR10,2#..MTM199201-199608

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-22010iTCR10..MTM199201-199608

main33481-22030iCXR1#..MTM199201-199908

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-06004iTCR10..MTM199201-199608

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26061×2iTCR10..MTM199201-199608

9161160820

main91611-60820

51 parts on this diagram · 2 diagrams in section
