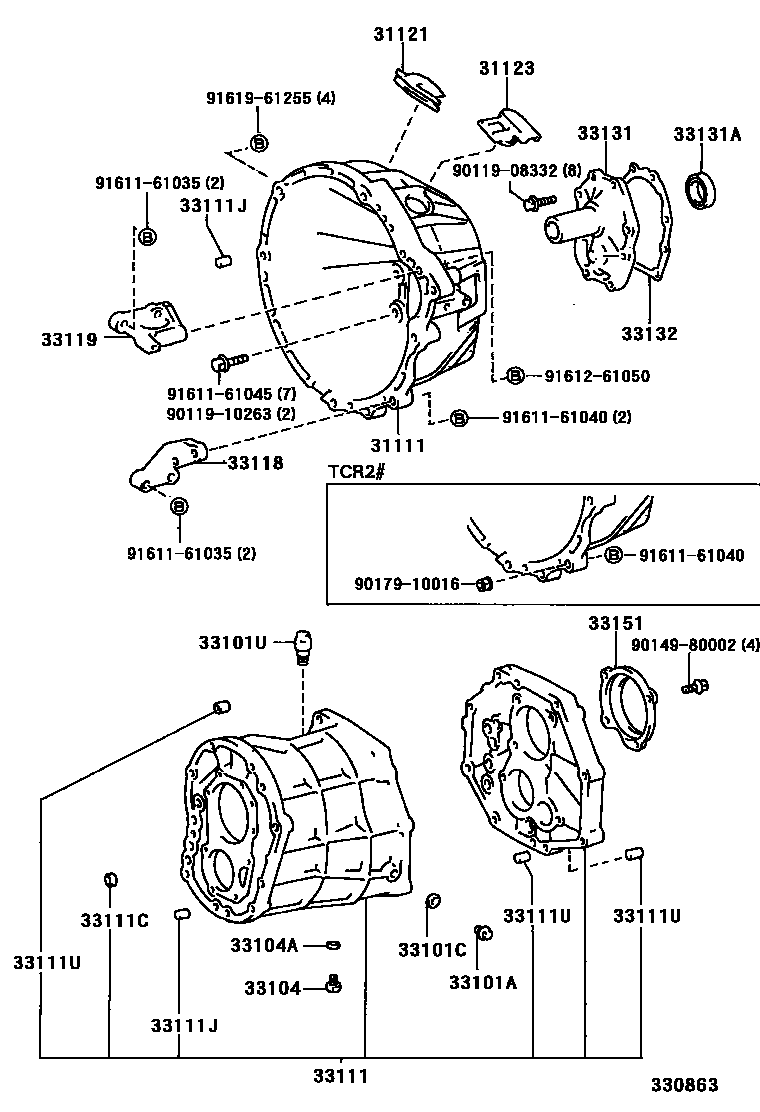

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G53 0002 1W56

31111HOUSING, CLUTCH

main31111-28041iTCR10,2#..MTM199201-199312

sub31111-28042

main31111-28042iTCR10,20..MTM199312-199608

main31111-28050iCXR1#,2#..MTM199201-199908

31121COVER, CLUTCH HOUSING, NO.1

main31121-28030iCXR1#,2#..MTM199201-199908

main31121-28040iTCR10,2#..MTM199201-199505

sub31121-28041

main31121-28041iTCR10,20..MTM199505-199608

main31121-30040iCXR1#,2#..MTM199201-199309

sub31121-35020

main31121-35020iCXR10,20..MTM199309-199908

31123COVER, CLUTCH HOUSING, NO.2

main31121-28020iTCR10,2#..MTM199201-199608

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCXR1#,2#..MTM199201-199408

main90341-18006iCXR10,20,TCR10,20..MTM199201-199908

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCXR1#,2#,TCR10,2#..MTM199201-199908

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03075iCXR1#,2#..MTM199304-199308

main90930-03085iTCR10,2#..MTM199201-199608

main90930-03114iCXR10,20..MTM199308-199908

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCXR10,20,TCR10,20..MTM199408-199908

main90341-18057iCXR1#,2#,TCR10,2#..MTM199201-199503

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCXR1#,2#,TCR10,2#..MTM199201-199908

33111CASE, MANUAL TRANSMISSION

main33101-28020iTCR10,2#..MTM199201-199608

sub33101-35060

sub90341-18032

main33101-28030iCXR1#,2#..MTM199201-199908

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iCXR1#,2#..MTM199201-199908

main96411-41800iCXR1#,2#..MTM199201-199908

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10026iTCR10,2#..MTM199201-199608

main90250-12002iCXR1#,2#..MTM199201-199908

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iTCR10,2#..MTM199201-199608

main90253-15001iTCR10,2#..MTM199201-199608

33118PLATE, STIFFENER, RH(MTM)

main33118-28030iTCR10..MTM199201-199608

main33118-28040iCXR1#..MTM199201-199305

33119PLATE, STIFFENER, LH(MTM)

main33119-28030iTCR10,2#..MTM199201-199608

sub33119-28031

main33119-28040iCXR1#,2#..MTM199201-199908

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iTCR10,2#..MTM199201-199608

main33131-30080iCXR1#,2#..MTM199201-199908

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iCXR1#,2#,TCR10,2#..MTM199201-199908

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iTCR10,2#..MTM199201-199608

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iCXR1#,2#..MTM199201-199908

main33151-35030iTCR10,2#..MTM199201-199608

9011908332

main90119-08332

9011910263

main90119-10263

9014980002

main90149-80002

9017910016

main90179-10016

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9161261050

main91612-61050

9161961255

main91619-61255

27 parts on this diagram · 2 diagrams in section
