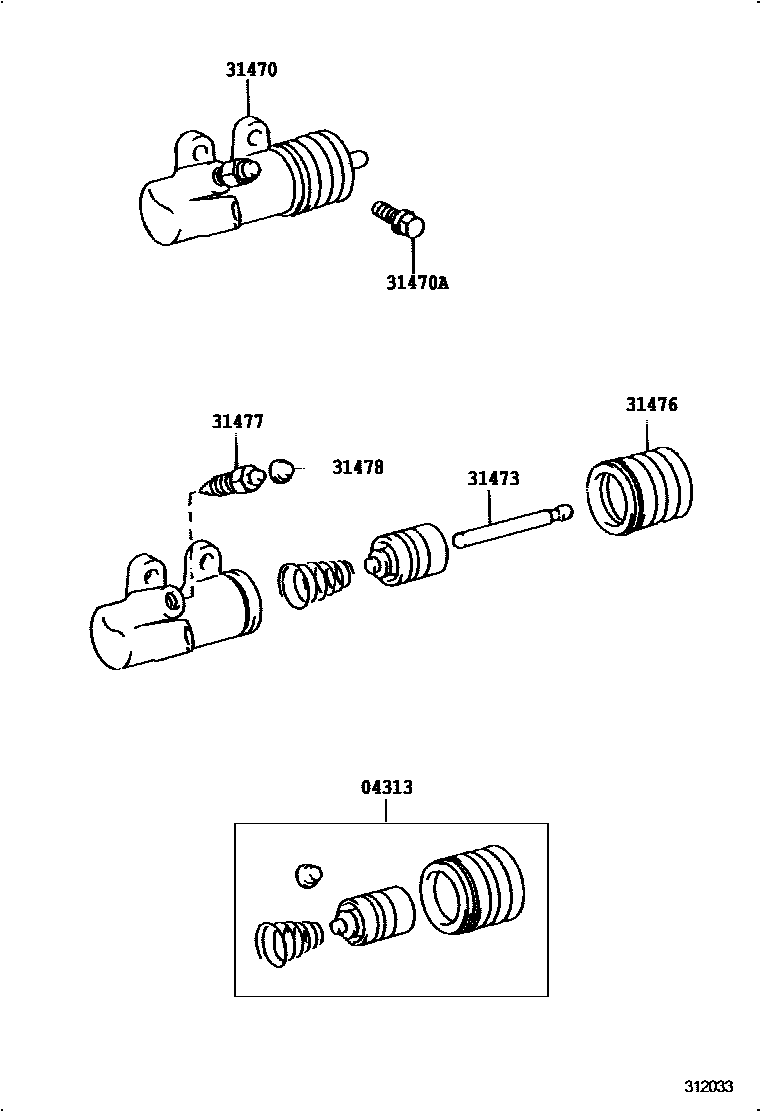

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iCXR1#,2#,TCR10,2#..MTM199201-199409

main04313-22030iCXR10,20,TCR10,20..MTM199409-199908

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28051iCXR1#,2#,TCR10,2#..MTM199201-199908

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iCXR1#,2#,TCR10,2#..MTM199201-199908

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iCXR1#,2#,TCR10,2#..MTM199201-199908

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCXR1#,2#,TCR10,2#..MTM199201-199908

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-60020iCXR1#,2#,TCR10,2#..MTM199201-199908

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCXR1#,2#,TCR10,2#..MTM199201-199908

7 parts on this diagram · 1 diagram in section
