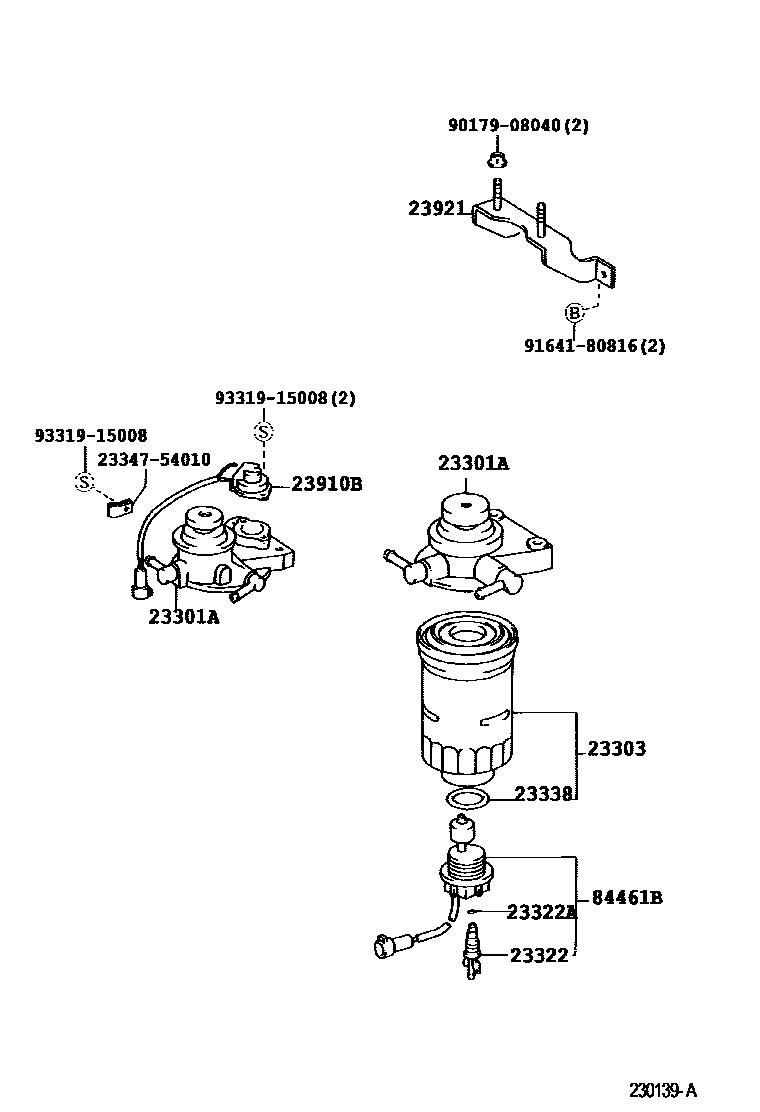

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23301-64320i3CT#..CXR1#,2#199201-199908

main23301-64330i3CT#..CXR1#,2#199201-199908

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i3CT#..CXR1#,2#199201-199908

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i3CT#..CXR1#,2#199201-199908

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i3CT#..CXR1#,2#199201-199908

23338GASKET(FOR WARNING SWITCH)

main23344-64010i3CT#..CXR1#,2#199201-199908

23910BHEATER ASSY, FUEL

main23910-54050i3CT#..CXR1#,2#199201-199908

23921SUPPORT, FUEL FILTER

main23921-64200i3CT#..CXR1#,2#199201-199908

84461BSWITCH, LEVEL WARNING

main84461-35030iCXR1#,2#199201-199908

2334754010CLIP, CORD

main23347-54010

9017908040

main90179-08040

9164180816

main91641-80816

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section
