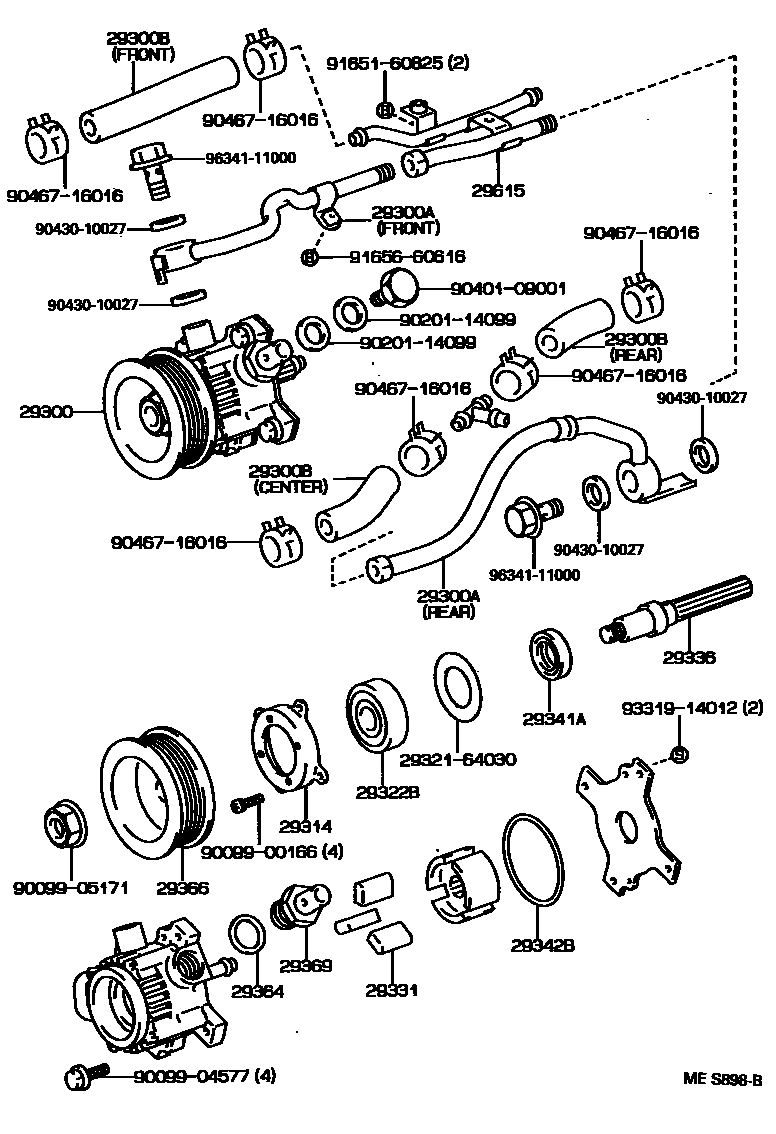

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-64080i3CT..CXR1#,2#199201-199308

main29300-64120i3CTE..CXR1#,2#199308-199908

29300AHOSE, VACUUM PUMP OIL INLET

main29611-64031i3CT..CXR1#,2#199201-199308

FRONT

main29611-64040i3CT..CXR1#,2#199201-199308

REAR

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-64050i3CT..CXR1#,2#199201-199308

FRONT

main29611-64060i3CT..CXR1#,2#199201-199308

CENTER

main29611-64070i3CT..CXR1#,2#199201-199308

REAR

29314RING, STOP

main29314-64030i3CT..CXR1#,2#199201-199308

29322BBEARING, VACUUM PUMP

main90099-10166i3CT..CXR1#,2#199201-199308

29331BLADE, VACUUM PUMP, A

main29331-64030i3CT..CXR1#,2#199201-199308

29336SHAFT, VACUUM PUMP

main29336-64031i3CT..CXR1#,2#199201-199308

29341ASEAL, OIL

main29341-64030i3CT..CXR1#,2#199201-199308

29342BRING, O

main29342-64030i3CT..CXR1#,2#199201-199308

29364WASHER, VACUUM PUMP

main29364-66010i3CT..CXR1#,2#199201-199308

29366PULLEY, VACUUM PUMP

main29366-64080i3CT..CXR1#,2#199201-199308

29369VALVE SUB-ASSY, CHECK

main29369-64030i3CT..CXR1#,2#199201-199308

29615PIPE, VACUUM PUMP OIL

main29615-64010i3CT..CXR1#,2#199201-199308

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099

9040109001

main90401-09001

9043010027

main90430-10027

9046716016

main90467-16016

9165160825

main91651-60825

9165660616

main91656-60616

9331914012

main93319-14012

9634111000

main96341-11000

25 parts on this diagram · 2 diagrams in section
