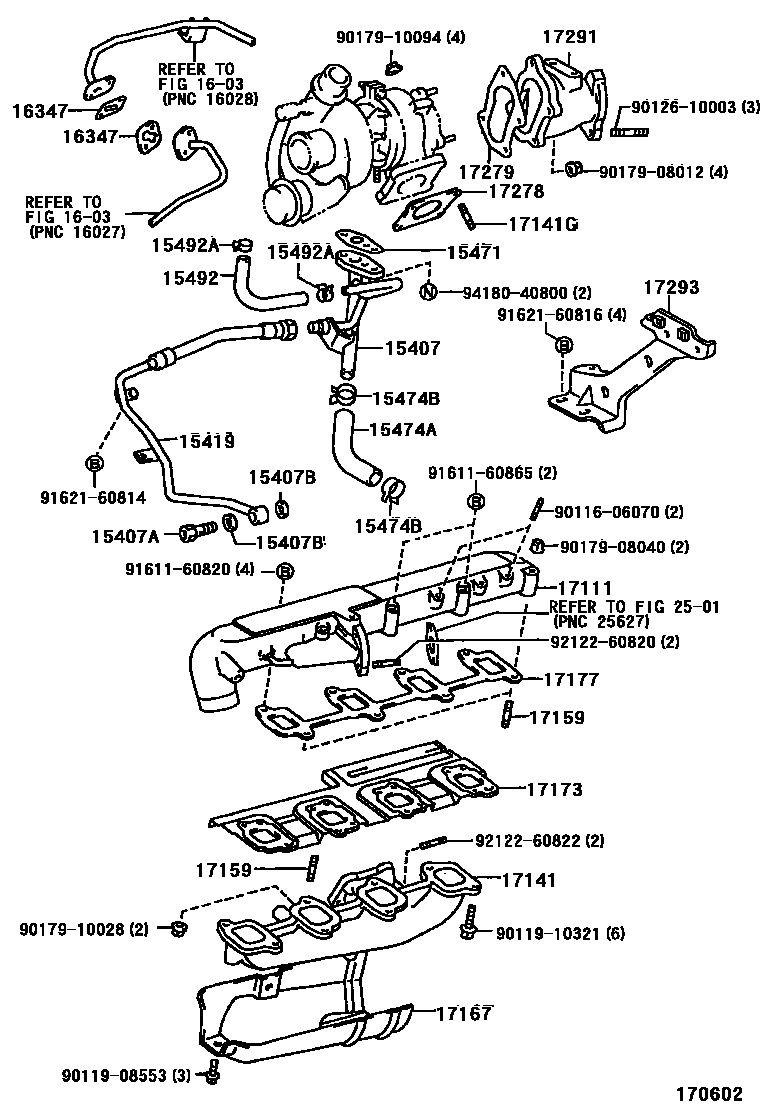

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-64050i3CT#..CXR1#,2#199201-199608

main15407-64080i3CTE..CXR1#,2#199608-199908

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-14014i3CT#..CXR1#,2#199201-199908

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-14235i3CT#..CXR1#,2#199201-199908

15419HOSE, OIL FILTER OUTLET

main15419-64010i3CT#..CXR1#,2#199201-199908

15471GASKET, TURBO OIL INLET

main15471-58010i3CT#..CXR1#,2#199201-199510

main15471-64010i3CTE..CXR1#,2#199510-199908

15474AHOSE, TURBO OIL OUTLET

main15491-64010i3CT#..CXR1#,2#199201-199608

main15491-64030i3CTE..CXR1#,2#199608-199908

15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)

main90467-28003i3CT#..CXR1#,2#199201-199908

sub90467-28007

15492HOSE, TURBO OIL OUTLET, NO.2

main15492-64010i3CT..CXR1#,2#199201-199308

main15492-64020i3CTE..CXR1#,2#199308-199908

15492ACLIP(FOR TURBO OIL OUTLET HOSE NO.2)

main90467-16003i3CT#..CXR1#,2#199201-199908

sub96134-51500

1603

16347GASKET, WATER BY-PASS

main16347-42020i3CT#..CXR1#,2#199201-199908

17111MANIFOLD, INTAKE

main17101-64130i3CT..CXR1#,2#199201-199308

main17101-76010i2TZFE..TCR1#,2#199201-199401

sub17101-76011

sub90179-08199

main17101-76011i2TZFE..TCR1#,2#199401-199403

main17101-76012i2TZFE..TCR1#,2#199403-199608

main17101-76030i2TZFE..TCR1#,2#199608-199912

main17111-64200i3CTE..CXR1#,2#199308-199812

sub17111-64201

main17111-64201i3CTE..CXR1#,2#199812-199908

17141MANIFOLD, EXHAUST

main17141-64190i3CT#..CXR1#,2#199201-199908

main17141-76040i2TZFE..TCR1#,2#199201-199501

main17141-76050i2TZFE..TCR1#,2#199501-199912

17141GBOLT, STUD(FOR TURBOCHARGER)

main90116-10148i3CT#..CXR1#,2#199201-199908

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10095i3CT#..CXR1#,2#199201-199512

EXHAUST MANIFOLD

main90126-10017i3CTE..CXR1#,2#199512-199908

EXHAUST MANIFOLD

main92122-60865i3CT#..CXR1#,2#199201-199908

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64080i3CT#..CXR1#,2#199201-199908

main17167-76010i2TZFE..TCR1#,2#199201-199912

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64070i3CT#..CXR1#,2#199201-199908

main17173-76010i2TZFE..TCR1#,2#199201-199912

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64020i3CT#..CXR1#,2#199201-199908

main17177-76011i2TZFE..TCR1#,2#199201-199401

sub17177-76020

main17177-76020i2TZFE..TCR1#,2#199401-199912

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-64030i3CT#..CXR1#,2#199201-199812

sub17278-64031

main17278-64031i3CTE..CXR1#,2#199812-199908

17279GASKET, TURBINE OUTLET ELBOW

main17279-11010i3CT..CXR1#,2#199201-199303

main17279-55011i3CT#..CXR1#,2#199303-199708

main17279-64020i3CTE..CXR1#,2#199708-199908

17291ELBOW, TURBINE OUTLET

main17291-64060i3CT#..CXR1#,2#199201-199908

17293STAY, TURBOCHARGER

main17293-64040i3CT#..CXR1#,2#199201-199412

sub17293-64041

main17293-64041i3CTE..CXR1#,2#199412-199908

2501

9011606070

main90116-06070

9011908553

main90119-08553

9011910321

main90119-10321

9012610003

main90126-10003

9017908012

main90179-08012

9017908040

main90179-08040

9017910028

main90179-10028

9017910094

main90179-10094

9161160820

main91611-60820

9161160865

main91611-60865

9162160814

main91621-60814

9162160816

main91621-60816

9212260820

main92122-60820

9212260822

main92122-60822

9418040800

main94180-40800

38 parts on this diagram · 6 diagrams in section
