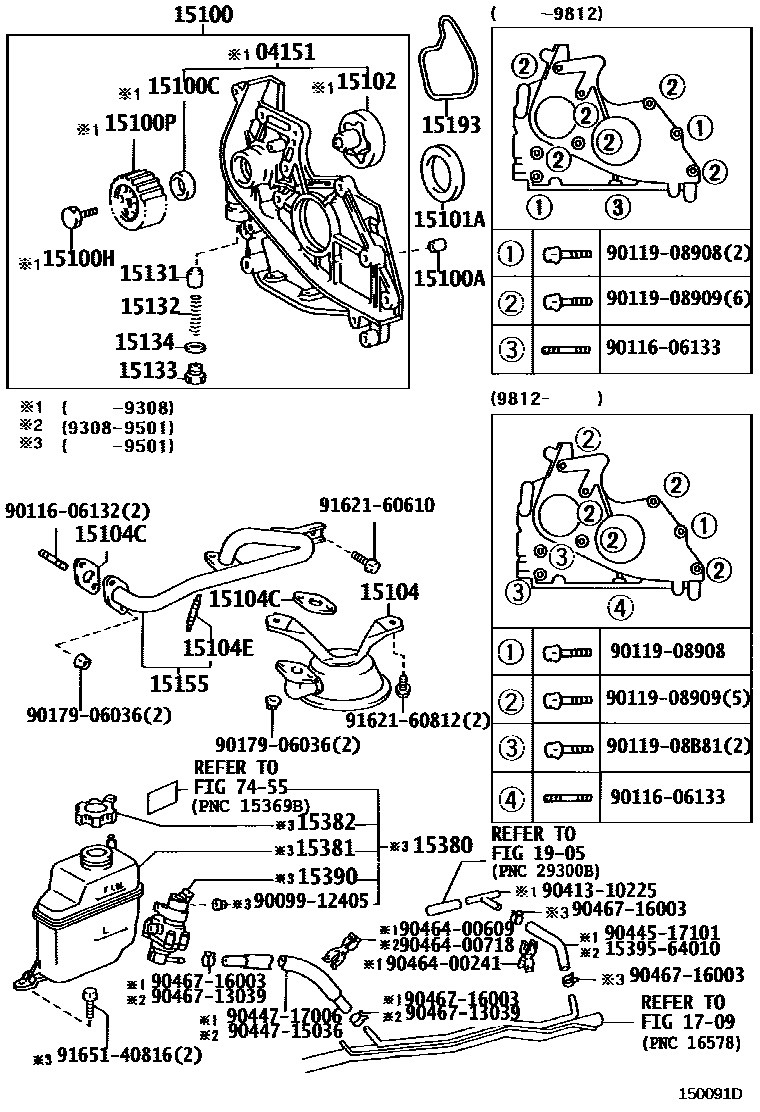

ENGINE OIL PUMP

0001 1 0002 1 0003 1

04151ROTOR KIT, OIL PUMP

main04151-64020i3CT..CXR1#,2#199201-199308

15100PUMP ASSY, OIL

main15100-64050i3CT..CXR1#,2#199201-199308

sub15100-64051

sub90119-08B81

main15100-64060i3CTE..CXR1#,2#199308-199812

sub15100-64061

sub90119-08B81

main15100-64061i3CTE..CXR1#,2#199812-199902

sub15100-64062

main15100-64062i3CTE..CXR1#,2#199902-199908

sub15100-64063

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i3CT#..CXR1#,2#199201-199908

15100CSEAL(FOR OIL PUMP)

main90029-21014i3CT..CXR1#,2#199201-199204

sub90029-21022

main90029-21022i3CT..CXR1#,2#199204-199308

sub04151-64010

sub04151-64020

15100HBOLT, SEAL

main15189-55010i3CT..CXR1#,2#199201-199308

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-64020i3CT..CXR1#,2#199201-199308

15101ASEAL(FOR CRANKSHAFT)

main90311-42026i3CT#..CXR1#,2#199201-199401

main90311-42030i3CTE..CXR1#,2#199401-199606

sub90311-42031

main90311-42031i3CTE..CXR1#,2#199606-199908

15102ROTOR SET, OIL PUMP

main15102-64040i3CT..CXR1#,2#199201-199308

sub04151-64020

main15103-75010i2TZFE..TCR1#,2#199401-199912

15104STRAINER SUB-ASSY, OIL

main15104-64040i3CT#..CXR1#,2#199201-199908

main15104-76040i2TZFE..TCR1#,2#199201-199912

15104CGASKET(FOR OIL STRAINER)

main15149-64030i3CT#..CXR1#,2#199201-199812

sub15149-64070

main15149-64070i3CTE..CXR1#,2#199812-199908

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06132i3CT#..CXR1#,2#199201-199908

15131VALVE, OIL PUMP RELIEF

main15131-24010i2TZFE..TCR1#,2#199201-199912

main15131-64020i3CT#..CXR1#,2#199201-199908

main15131-64041i3CTE..CXR1#,2#199812-199902

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i3CTE..CXR1#,2#199812-199902

main15132-64050i3CT#..CXR1#,2#199201-199908

main15132-75010i2TZFE..TCR1#,2#199201-199912

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i3CT#..CXR1#,2#199201-199908

main15133-64041i3CTE..CXR1#,2#199812-199902

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i3CTE..CXR1#,2#199201-199908

main15134-67020i3CTE..CXR1#,2#199812-199902

15155PIPE, OIL STRAINER, NO.2

main15155-64010i3CT#..CXR1#,2#199201-199908

15193GASKET, OIL PUMP

main15193-64021i3CT#..CXR1#,2#199201-199804

sub15193-64022

main15193-64022i3CTE..CXR1#,2#199804-199908

15380TANK & MOTOR ASSY, OIL

main15380-64010i3CT..CXR1#,2#199201-199308

main15380-64020i3CTE..CXR1#,2#199308-199501

main15380-76010i2TZFE..TCR1#,2#199201-199501

15381TANK, OIL

main15381-64010i3CT#..CXR1#,2#199201-199501

main15381-76010i2TZFE..TCR1#,2#199201-199501

15382CAP, OIL TANK

main15382-76010i2TZFE..TCR1#,2#199201-199501

15390MOTOR & PUMP ASSY, OIL TANK

main15390-64010i3CT..CXR1#,2#199201-199308

main15390-64020i3CTE..CXR1#,2#199308-199501

main15390-76010i2TZFE..TCR1#,2#199201-199501

1709

1905

7455

1539564010HOSE, OIL TANK

main15395-64010

9009912405

main90099-12405

9011606132

main90116-06132

9011606133

main90116-06133

9011908908

main90119-08908

9011908909

main90119-08909

9011908B81

main90119-08B81

9017906036

main90179-06036

9041310225

main90413-10225

9044517101

main90445-17101

9044715036

main90447-15036

9044717006

main90447-17006

9046400241

main90464-00241

9046400609

main90464-00609

9046400718

main90464-00718

9046713039

main90467-13039

9046716003

main90467-16003

9162160610

main91621-60610

9162160812

main91621-60812

9165140816

main91651-40816

44 parts on this diagram · 3 diagrams in section
