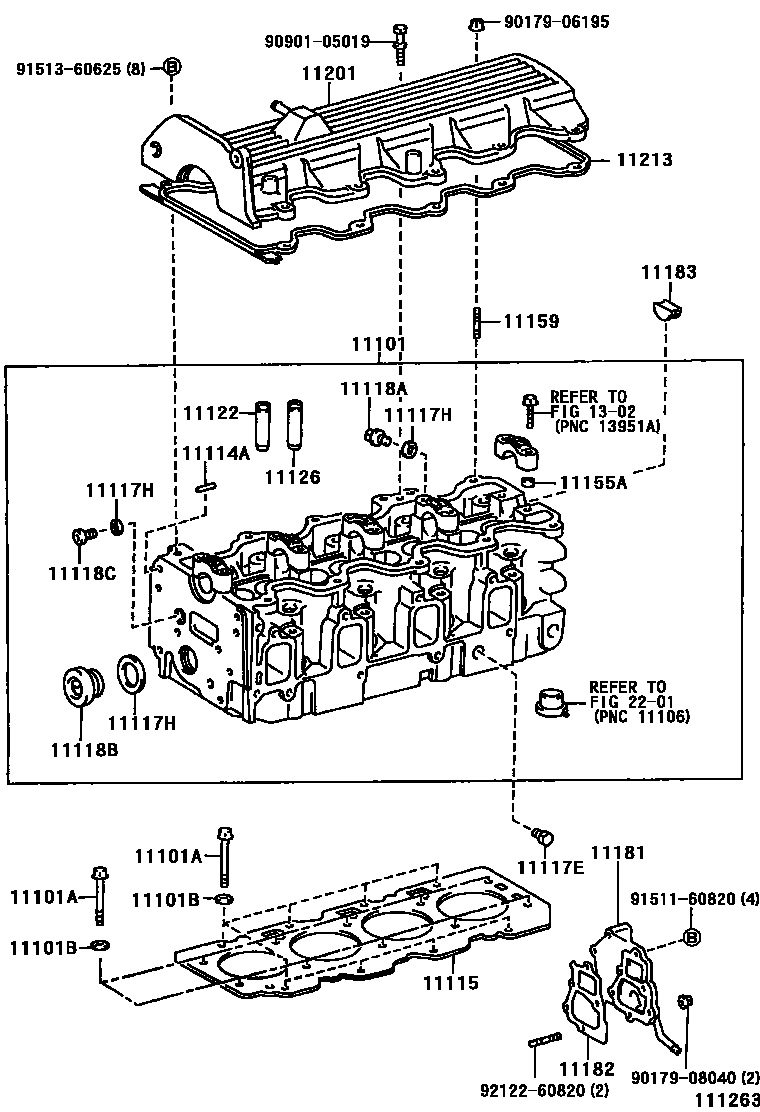

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-64150i3CT..CXR1#,2#199201-199308

sub11101-64151

sub17293-64041

main11101-64190i3CTE..CXR1#,2#199308-199501

sub11101-64191

sub17293-64041

main11101-64220i3CTE..CXR1#,2#199501-199504

sub11101-64221

sub17293-64041

main11101-64221i3CTE..CXR1#,2#199504-199705

sub11101-64222

sub90201-22010

main11101-64222i3CTE..CXR1#,2#199705-199708

sub11101-64223

sub11176-64020

main11101-64223i3CTE..CXR1#,2#199708-199808

main11101-64224i3CTE..CXR1#,2#199808-199908

main11101-79055i2TZFE..TCR1#,2#199201-199912

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02097i3CTE..CXR1#,2#199308-199908

main90910-02097i3CT..CXR1#,2#199201-199308

*11-1.25PX130-50

main90910-02099i3CTE..CXR1#,2#199308-199908

main90910-02099i3CT..CXR1#,2#199201-199308

*11-1.25PX152-50

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-12222i3CT#..CXR1#,2#199201-199908

11114APIN, STRAIGHT

main90250-06068i3CT#..CXR1#,2#199201-199908

11115GASKET, CYLINDER HEAD

main11115-64130i3CT#..CXR1#,2#199201-199708

sub11115-64131

main11115-64130-01i3CTE..CXR1#,2#199708-199808

MARK 1

sub11115-64130

sub11115-64131

main11115-64130-02i3CTE..CXR1#,2#199708-199808

MARK 2

sub11115-64130

sub11115-64131

main11115-64130-03i3CTE..CXR1#,2#199708-199808

MARK 3

sub11115-64130

sub11115-64131

main11115-64131-01i3CTE..CXR1#,2#199808-199812

MARK 1

main11115-64131-02i3CTE..CXR1#,2#199808-199812

MARK 2

main11115-64131-03i3CTE..CXR1#,2#199808-199812

MARK 3

main11115-64190-01i3CTE..CXR1#,2#199812-199908

MARK 1

main11115-64190-03i3CTE..CXR1#,2#199812-199908

MARK 3

main11115-64190-05i3CTE..CXR1#,2#199812-199908

MARK 5

main11115-76030i2TZFE..TCR1#,2#199201-199608

sub11115-76040

main11115-76040i2TZFE..TCR1#,2#199608-199912

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-16094i3CT#..CXR1#,2#199201-199908

11117HGASKET(FOR WATER HOLE)

main90430-10204i3CT#..CXR1#,2#199201-199705

main90430-12010i3CT#..CXR1#,2#199201-199705

main90430-33133i3CT#..CXR1#,2#199201-199705

11118APLUG, STRAIGHT, NO.1

main90341-10005i3CT#..CXR1#,2#199201-199705

11118BPLUG, STRAIGHT, NO.2

main90341-32070i3CT#..CXR1#,2#199201-199705

11118CPLUG, STRAIGHT, NO.3

main90341-12013i3CT#..CXR1#,2#199201-199705

11122BUSH, INTAKE VALVE GUIDE

main11122-16020i2TZFE..TCR1#,2#199201-199912

main11122-64010i3CT#..CXR1#,2#199201-199908

main11123-16010i2TZFE..TCR1#,2#199308-199912

main11123-16020i2TZFE..TCR1#,2#199201-199308

main11123-64010i3CT#..CXR1#,2#199201-199908

11126BUSH, EXHAUST VALVE GUIDE

main11126-50040i2TZFE..TCR1#,2#199201-199912

main11126-64010i3CT#..CXR1#,2#199201-199708

sub11126-64030

main11126-64030i3CTE..CXR1#,2#199708-199908

main11127-50040i2TZFE..TCR1#,2#199201-199912

main11127-64010i3CT#..CXR1#,2#199201-199708

sub11127-64030

main11127-64030i3CTE..CXR1#,2#199708-199908

11155APIN, RING W/HEAD

main90253-11021i3CT#..CXR1#,2#199201-199908

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main92122-60620i3CT..CXR1#,2#199201-199308

11181PLATE, CYLINDER HEAD, REAR

main11181-64020i3CT..CXR1#,2#199201-199308

main11181-64030i3CTE..CXR1#,2#199308-199908

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-64030i3CT#..CXR1#,2#199201-199908

11183PLUG, SEMICIRCULAR

main11183-50010i2TZFE..TCR1#,2#199201-199912

main11183-64010i3CT#..CXR1#,2#199201-199908

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-64100i3CT..CXR1#,2#199201-199308

main11201-64130i3CTE..CXR1#,2#199308-199602

sub11201-64131

main11201-64131i3CTE..CXR1#,2#199602-199908

main11201-76100i2TZFE..TCR1#,2#199201-199912

11213GASKET, CYLINDER HEAD COVER

main11213-64050i3CT..CXR1#,2#199201-199308

main11213-64060i3CTE..CXR1#,2#199308-199605

sub11213-64061

main11213-64061i3CTE..CXR1#,2#199605-199908

main11213-76020i2TZFE..TCR1#,2#199201-199912

1302

2201

9017906195

main90179-06195

9017908040

main90179-08040

9090105019

main90901-05019

9151160820

main91511-60820

9151360625

main91513-60625

9212260820

main92122-60820

27 parts on this diagram · 4 diagrams in section
