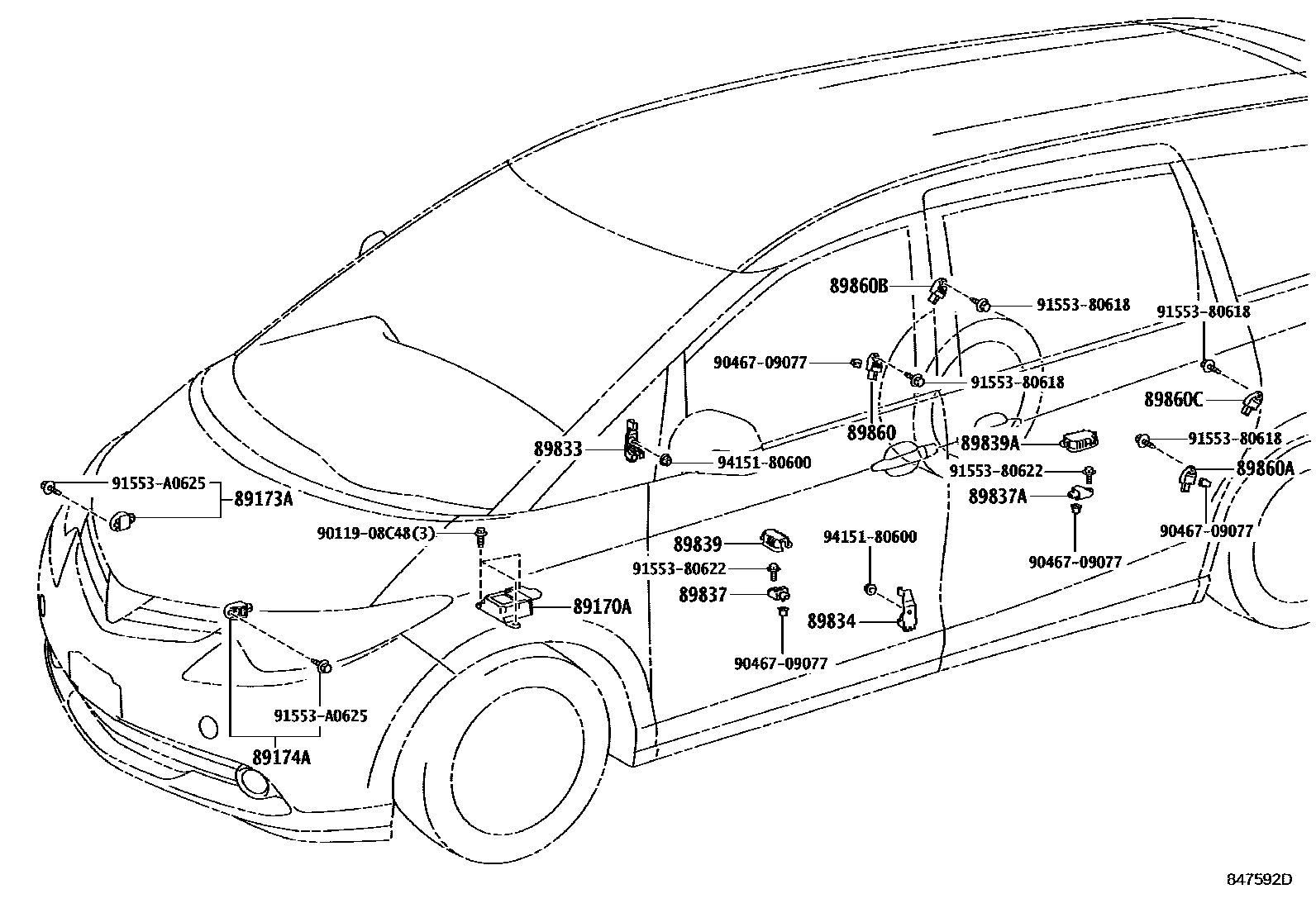

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-28240iACR5#..CBU201605-201910

main89170-28260iACR5#,GSR5#..CBU200601-201605

89173ASENSOR, AIRBAG, FRONT RH

main89173-49375iACR5#,GSR5#..CBU200601-201605

main89173-79095iACR5#..CBU201605

89174ASENSOR, AIRBAG, FRONT LH

main89173-49375iACR5#,GSR5#..CBU200601-201605

main89173-79095iACR5#..CBU201605

89833SENSOR, AIRBAG, REAR RH

main89833-28010

main89833-28020

89834SENSOR, AIRBAG, REAR LH

main89834-28010

main89834-28020

89837SENSOR, FRONT FLOOR SIDE AIRBAG

main89837-28010

main89837-58010

main89837-60010

main89837-28011

main89837-58020

main89837-28020

main89837-28021

main89837-28030

main89837-28040

main89837-28050

89837ASENSOR, REAR FLOOR SIDE AIRBAG

89839COVER, FRONT FLOOR SIDE AIRBAG SENSOR

main89839-28010

main89839-28020

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28010

main89831-42010

main89831-28060

89860ASENSOR ASSY, SIDE AIRBAG, LH

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

9011908C48

main90119-08C48

9046709077

main90467-09077

9155380618

main91553-80618

9155380622

main91553-80622

91553A0625

main91553-A0625

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
