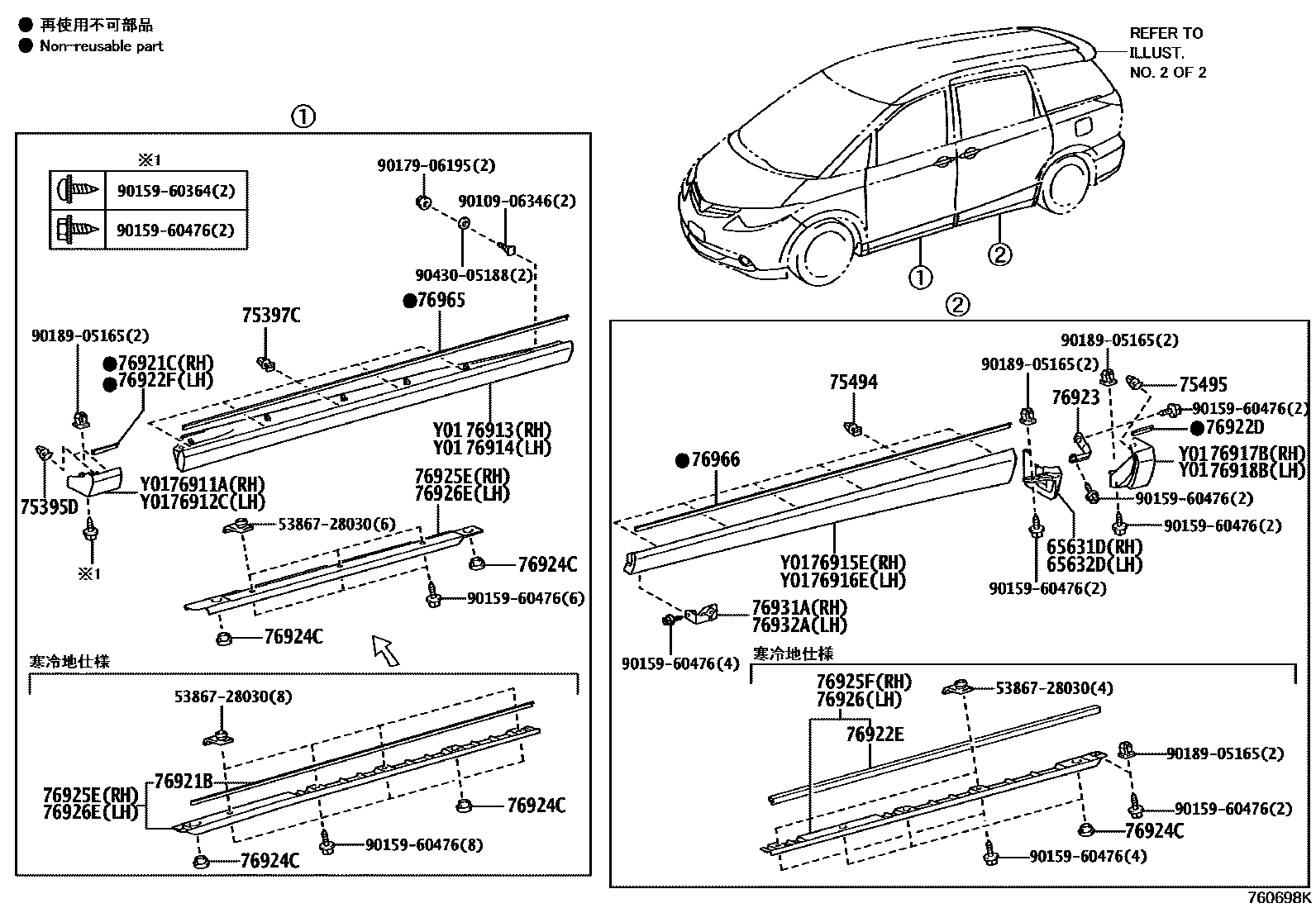

SPOILER & SIDE MUDGUARD

0001 1������������� 0002 1������������� 0003 1������������� 0004 1������������� 0005 1�������

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-28010iACR5#,GSR5#..CBU200601-200812

main65631-28010iACR5#,GSR5#..CBU200812-201910

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-28010iACR5#,GSR5#..CBU200812-201910

main65632-28010iACR5#,GSR5#..CBU200601-200812

75395DCLIP, OUTSIDE MOULDING, NO.1

main76932-26010iACR5#,GSR5#..(G,X)..CBU200601-201605

main76932-28030iACR5#,GSR5#..AERAS..CBU200601-201605

75397CCLIP, OUTSIDE MOULDING, NO.3

main76932-26010iACR5#,GSR5#..(G,X)..CBU200601-201605

main76932-28030iACR5#,GSR5#..AERAS..CBU200601-201808

main76932-28090iACR5#..CBU201809-201905

75494CLIP, OUTSIDE MOULDING, NO.3

main76932-26010iACR5#,GSR5#..(G,X)..CBU200601-201605

main76932-28030iACR5#,GSR5#..AERAS..CBU200601-201605

75495CLIP, OUTSIDE MOULDING, NO.4

main76932-26010iACR5#,GSR5#..(G,X)..CBU200601-201605

main76932-28030iACR5#,GSR5#..AERAS..CBU200601-201605

76911AMUDGUARD, FENDER PANEL, RH

main76911-28070iACR5#,GSR5#..(G,X)..CBU200601-201605

76912CMUDGUARD, FENDER PANEL, LH

main76912-28070iACR5#,GSR5#..(G,X)..CBU200601-201605

76913MUDGUARD, FRONT DOOR, RH

main76913-28060iACR5#,GSR5#..AERAS..CBU200811-200812

sub76903-28062

main76913-28070iACR5#,GSR5#..(G,X)..CBU200601-201605

76914MUDGUARD, FRONT DOOR, LH

main76914-28060iACR5#,GSR5#..AERAS..CBU200811-200812

sub76904-28062

main76914-28070iACR5#,GSR5#..(G,X)..CBU200601-201605

76915EMUDGUARD, SLIDE DOOR, RH

main76915-28060iACR5#,GSR5#..(G,X)..CBU200601-201605

76916EMUDGUARD, SLIDE DOOR, LH

main76916-28070iACR5#,GSR5#..(G,X)..CBU200601-201605

76917BMUDGUARD, QUARTER PANEL, RH

main76917-28080iACR5#,GSR5#..(G,X)..CBU200601-201605

76918BMUDGUARD, QUARTER PANEL, LH

main76918-28070iACR5#,GSR5#..(G,X)..CBU200601-201605

76921BPROTECTOR, SIDE MUDGUARD, NO.1

76921CPROTECTOR, SIDE MUDGUARD, RH

main76921-28040iACR5#,GSR5#..(G,X)..CBU200601-201605

76922DPROTECTOR, SIDE MUDGUARD, NO.2

main76922-28050iACR5#,GSR5#..(G,X)..CBU200601-201605

main76922-28060-B0iACR5#,GSR5#..AERAS..CBU200601-200812

LT. GRAY,070 ,1F7

main76922-28060-B2iACR5#,GSR5#..AERAS..CBU200601-200812

MEDIUM GRAY,1F8

main76922-28060-C0iACR5#,GSR5#..AERAS..CBU200601-200812

BLACK,202

main76922-28100-B1iACR5#,GSR5#..AERAS..CBU200812-201605

LT. GRAY,070

main76922-28100-B2iACR5#..CBU201605

MEDIUM GRAY,1F7 ,2NN ,2PM ,3R3 ,4W4

main76922-28100-B2iACR5#,GSR5#..AERAS..CBU201204-201605

MEDIUM GRAY,1F7

main76922-28100-B2iACR5#,GSR5#..AERAS..CBU200812-201204

MEDIUM GRAY,1F7 ,9AE

main76922-28100-C0iACR5#..07S..AERAS..CBU200812-201204

BLACK,202

main76922-28100-C0iACR5#,GSR5#..08S..AERAS..CBU200812-201204

BLACK,1G3 ,202

main76922-28100-C0iACR5#,GSR5#..08S..AERAS..CBU200812-201204

BLACK,1G3 ,202 ,3R9

main76922-28100-C0iACR5#,GSR5#..AERAS..CBU201204-201605

BLACK,1H4 ,202 ,3R9 ,8V5

main76922-28100-C0iACR5#..CBU201605

BLACK,1H4 ,202 ,220 ,2NN ,2PL ,2PM ,3R3 ,4W4

76922EPROTECTOR, SIDE MUDGUARD, NO.2

76922FPROTECTOR, SIDE MUDGUARD, LH

main76921-28040iACR5#,GSR5#..(G,X)..CBU200601-201605

76923RETAINER, SIDE MUDGUARD

main76923-28090iACR5#,GSR5#..CBU200601-201605

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-52021iACR5#,GSR5#..CBU200601-201605

76925EPROTECTOR, SIDE MUDGUARD, FRONT RH

main53821-28060iACR5#,GSR5#..CBU200601-201605

76925FPROTECTOR, SIDE MUDGUARD, RH

76926PROTECTOR, SIDE MUDGUARD, LH

main53824-28010

main53822-28040

main53822-28060

main76926-28100

main76926-28140

main76926-28170

76926EPROTECTOR, SIDE MUDGUARD, FRONT LH

main53822-28060iACR5#,GSR5#..CBU200601-201605

76931RETAINER, SIDE MUDGUARD, NO.3

main75392-35200iACR5#,GSR5#..AERAS..CBU200601-200911

main75392-35220iACR5#,GSR5#..AERAS..CBU200911-201905

76931ABRACKET, SIDE MUDGUARD, NO.1 RH

main76931-28040iACR5#,GSR5#..CBU200601-201605

76932RETAINER, SIDE MUDGUARD, NO.4

main75392-35200iACR5#,GSR5#..AERAS..CBU200601-200911

main75392-35220iACR5#,GSR5#..AERAS..CBU200911-201605

76932ABRACKET, SIDE MUDGUARD, NO.1 LH

main76932-28070iACR5#..CBU200601-201605

76965PROTECTOR, FRONT DOOR LOWER MUDGUARD

main76965-28040iACR5#,GSR5#..(G,X)..CBU200601-201605

main76965-28050-B0iACR5#,GSR5#..AERAS..CBU200601-200812

LT. GRAY,070 ,1F7

main76965-28050-B2iACR5#,GSR5#..AERAS..CBU200601-200812

MEDIUM GRAY,1F8

main76965-28050-C0iACR5#,GSR5#..AERAS..CBU200601-200812

BLACK,202

main76965-28090-B1iACR5#,GSR5#..AERAS..CBU200812-201605

LT. GRAY,070

main76965-28090-B2iACR5#,GSR5#..AERAS..CBU201204-201605

MEDIUM GRAY,1F7

main76965-28090-B2iACR5#,GSR5#..AERAS..CBU200812-201204

MEDIUM GRAY,1F7 ,9AE

main76965-28090-C0iACR5#,GSR5#..08S..AERAS..CBU200812-201204

BLACK,202

main76965-28090-C0iACR5#,GSR5#..07S..AERAS..CBU200812-201204

BLACK,1G3 ,202

main76965-28090-C0iACR5#,GSR5#..AERAS..CBU201204-201605

BLACK,1H4 ,202 ,3R9 ,8V5

main76965-28130-B0iACR5#..CBU201605-201905

sub76965-28131

main76965-28130-B1iACR5#..CBU201605-201905

sub76965-28131

main76965-28130-C0iACR5#..CBU201605-201905

sub76965-28131

main76965-28131-B0iACR5#..CBU201905

main76965-28131-B1iACR5#..CBU201905

main76965-28131-C0iACR5#..CBU201905

main76965-28140-B0iACR5#..CBU201605-201905

sub76965-28141

main76965-28140-B1iACR5#..CBU201605-201905

sub76965-28141

main76965-28140-C0iACR5#..CBU201605-201905

sub76965-28141

main76965-28141-B0iACR5#..CBU201905

main76965-28141-B1iACR5#..CBU201905

main76965-28141-C0iACR5#..CBU201905

76966PROTECTOR, SLIDE DOOR LOWER MUDGUARD

main76966-28040iACR5#,GSR5#..(G,X)..CBU200601-201605

main76966-28050-B0iACR5#,GSR5#..AERAS..CBU200601-200812

LT. GRAY,070 ,1F7

main76966-28050-B2iACR5#,GSR5#..AERAS..CBU200601-200812

MEDIUM GRAY,1F8

main76966-28050-C0iACR5#,GSR5#..AERAS..CBU200601-200812

BLACK,202

main76966-28090-B1iACR5#,GSR5#..AERAS..CBU200812-201605

LT. GRAY,070

main76966-28090-B2iACR5#,GSR5#..AERAS..CBU201204-201605

MEDIUM GRAY,1F7

main76966-28090-B2iACR5#,GSR5#..AERAS..CBU200812-201204

MEDIUM GRAY,1F7 ,9AE

main76966-28090-C0iACR5#,GSR5#..07S..AERAS..CBU200812-201204

BLACK,1G3 ,202

main76966-28090-C0iACR5#,GSR5#..07S..AERAS..CBU200812-201204

BLACK,202

main76966-28090-C0iACR5#,GSR5#..AERAS..CBU201204-201605

BLACK,1H4 ,202 ,3R9 ,8V5

main76966-28100-B1iACR5#..CBU201605

LT. GRAY,070

main76966-28100-B2iACR5#..CBU201605

MEDIUM GRAY,1F7 ,2NN ,2PM ,3R3 ,4W4

main76966-28100-C0iACR5#..CBU201605

BLACK,1H4 ,202 ,220 ,2NN ,2PL ,2PM ,3R3 ,4W4

5386728030SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-28030

9010906346

main90109-06346

9015960364

main90159-60364

9015960476

main90159-60476

9017906195

main90179-06195

9018905165

main90189-05165

9043005188

main90430-05188

38 parts on this diagram · 5 diagrams in section
