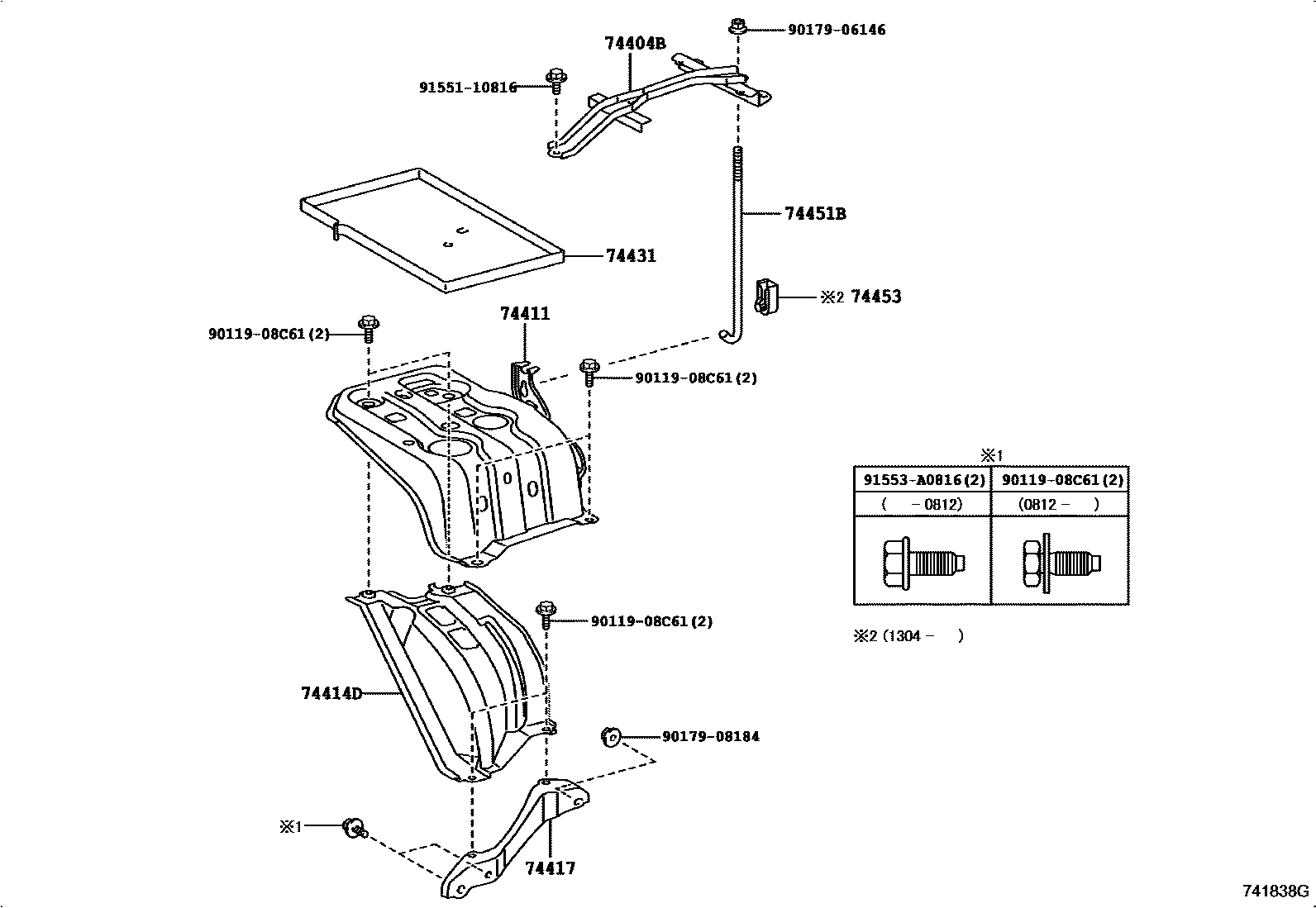

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-28190iACR5#,GSR5#..CBU200601-201605

74411CARRIER, BATTERY

main74410-28010iACR5#,GSR5#..CBU200601-201605

74414DSUPPORT, BATTERY CARRIER

main74414-42010iACR5#,GSR5#..CBU200601-200709

sub74414-42011

main74414-42011iACR5#,GSR5#..CBU200710-201605

74417BRACKET, BATTERY CARRIER

main74417-42030iACR5#,GSR5#..CBU200601-201605

74431TRAY, BATTERY

main74431-42090iACR5#,GSR5#..CBU200601-201605

74451BBOLT, BATTERY CLAMP

main74451-52010iACR5#,GSR5#..CBU200601-201605

74453SUPPORT, BATTERY CARRIER

main74454-28030iACR5#,GSR5#..CBU201304-201605

9011908C61

main90119-08C61

9017906146

main90179-06146

9017908184

main90179-08184

9155110816

main91551-10816

91553A0816

main91553-A0816

12 parts on this diagram · 1 diagram in section
