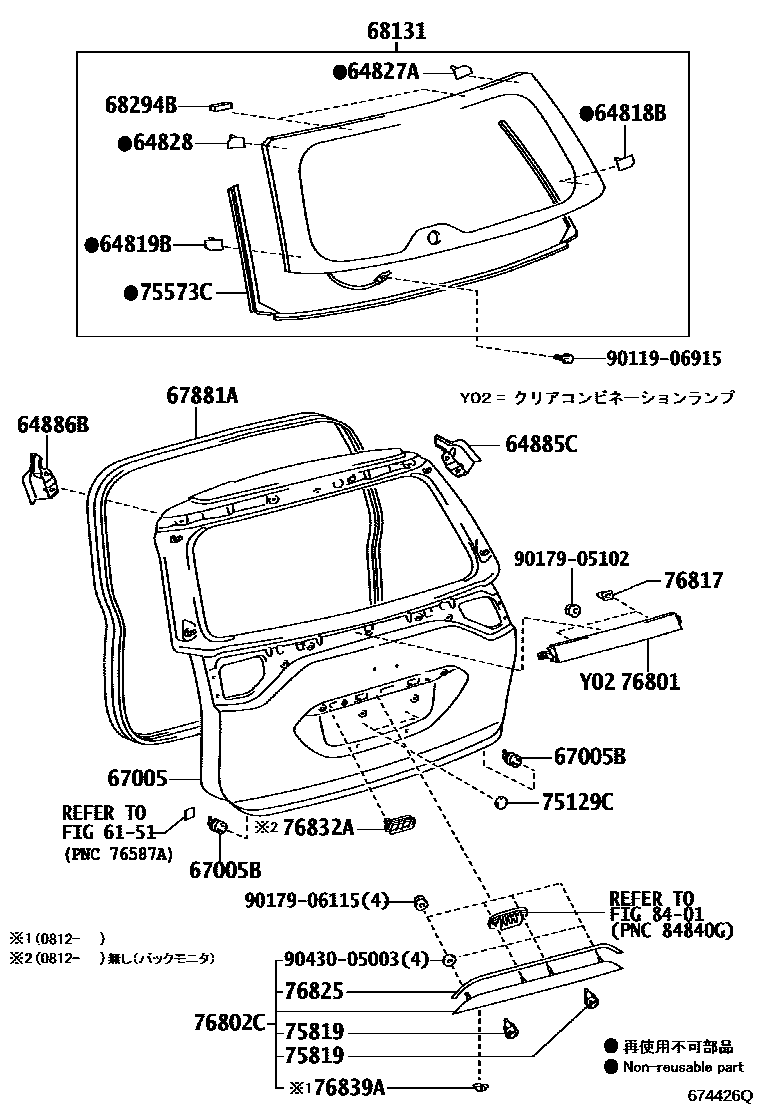

BACK DOOR PANEL & GLASS
6151
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68294BDAM, BACK DOOR GLASS ADHESIVE
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76802CGARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2
WHITE PEARL CS.,070
SILVER ME.,1F7
MEDIUM SILVER ME.,1F8
BLACK,202
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4 ,2PL
ICE TITANIUM M.M.,1H4
BLACK,202
SPARKLING BLACK PEARL CS.,220
DEEP RED M.M.,3R9
RED M.M.,2NN ,3R3
DARK SHERRY M.M.,2PM ,4W4
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76832ACOVER, BACK DOOR FINISH PANEL, LH
76839ACOVER, BACK DOOR GARNISH
8401
9011906915
9017905102
9017906115
9043005003
26 parts on this diagram · 2 diagrams in section
