SLIDE ROLLER & RAIL
57443BSUPPORT, SIDE STEP, REAR RH
57444ASUPPORT, SIDE STEP, REAR LH
5852
58747GPROTECTOR, QUARTER PANEL, REAR RH
58748DPROTECTOR, QUARTER PANEL, REAR LH
61057DRAIL SUB-ASSY, REAR SIDE, RH
61067FRAIL SUB-ASSY, REAR SIDE, LH
6151
68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
68394APLATE, SLIDE DOOR LOWER RAIL, RH
68399PLATE, SLIDE DOOR LOWER RAIL, LH
69417CCUSHION, SLIDE DOOR OPEN STOPPER, RH
69418STOP, SLIDE DOOR OPEN
69418FCUSHION, SLIDE DOOR OPEN STOPPER, LH
69419BSTOP, SLIDE DOOR OPEN, LH
8401
85005AMOTOR UNIT, SLIDE DOOR, RH
sub85005-28021
sub85005-28021
sub85005-28022
sub85005-28022
sub85005-28130
sub85005-28130
sub85005-28061
sub85005-28061
sub85005-28120
sub85005-28120
85006MOTOR UNIT, SLIDE DOOR, LH
sub85006-28051
sub85006-28051
sub85006-28051
sub85006-28052
sub85006-28052
sub85006-28052
sub85006-28120
sub85006-28120
sub85006-28120
sub85006-28081
sub85006-28110
6832652060CLIP(FOR TAIL GATE REMOTE CONTROL LINK)
main68326-52060
7539628090CLIP, OUTSIDE MOULDING, NO.2
main75396-28090
8968928020CLAMP, WIRELESS DOOR LOCK
main89689-28020
9010506168
main90105-06168
9010508187
main90105-08187
9011906595
main90119-06595
9011906779
main90119-06779
9011906911
main90119-06911
9011906A06
main90119-06A06
9014880049
main90148-80049
9015960303
main90159-60303
9018906197
main90189-06197
9054110038
main90541-10038
9095006089
main90950-06089
9155180610
main91551-80610
9155180812
main91551-80812
9155380610
main91553-80610
91621J0814
main91621-J0814
9164180818
main91641-80818

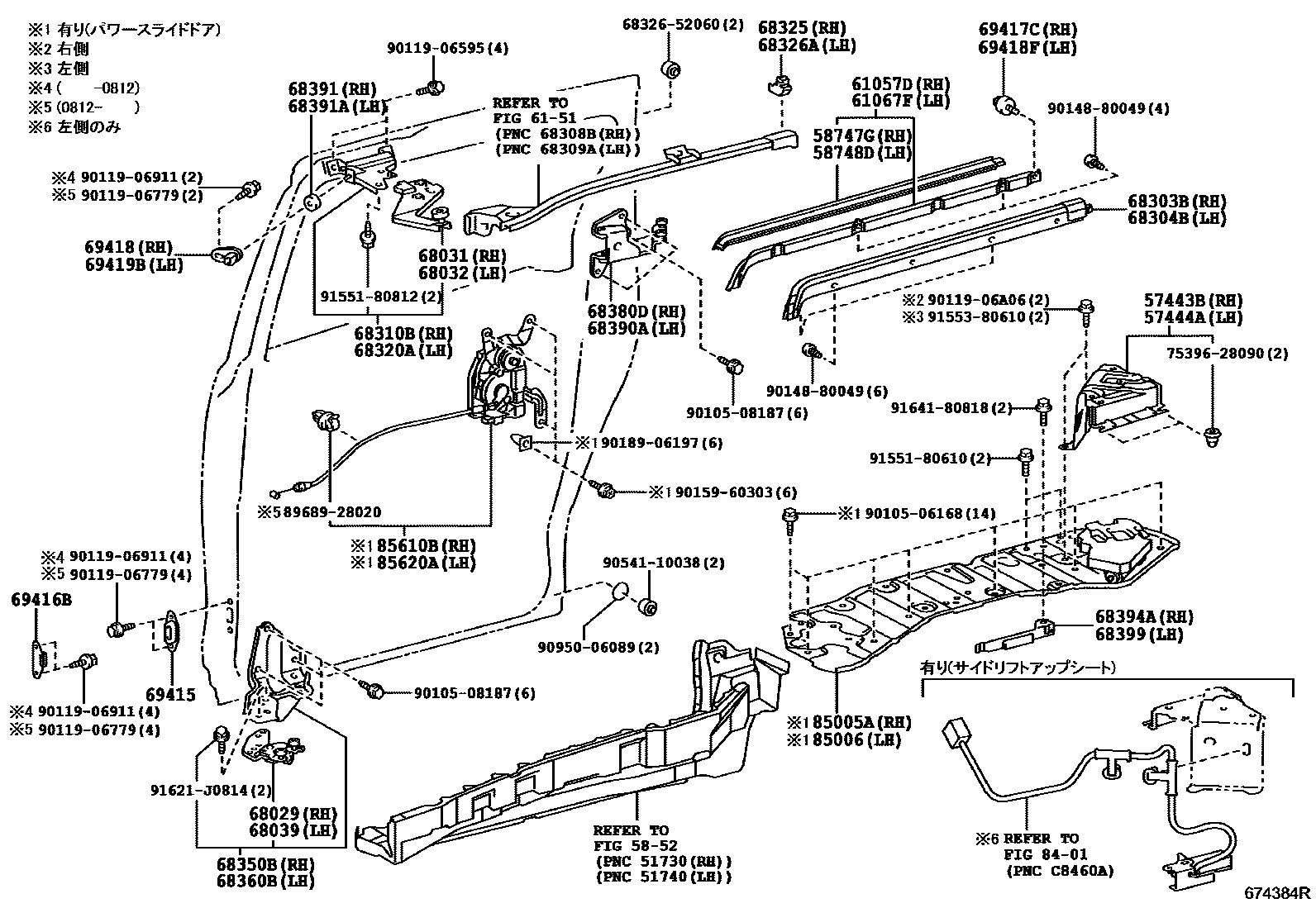

56 parts on this diagram · 1 diagram in section
