REAR DOOR LOCK & HANDLE

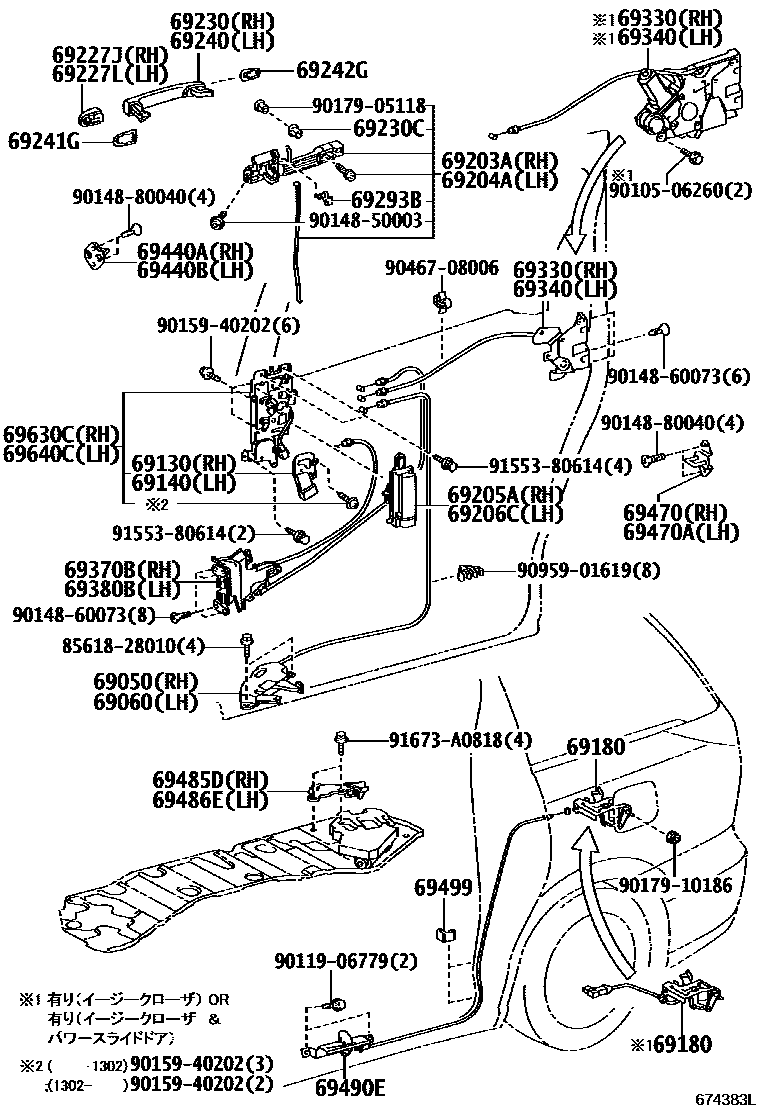

Parts diagram
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
main69050-28040i200601-200709
sub69050-28041
main69050-28041i200710-201605
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
main69060-28070i200601-200709
sub69060-28071
main69060-28071i200710-201605
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-58020i200601-201605
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
main69140-58020i200601-201605
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
main69180-28080i200601-200812
main69180-28080i200601-200812
main69180-28080i200601-200812
main69180-28080i200812-201605
main69180-28090i200601-200812
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-28020i200601-201605
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-28020i200601-201605
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69207-58010-B0i200601-200812
sub69281-58010
main69207-58010-C0i201204-201910
sub69281-58010
main69207-58010-C0i201204-201910
sub69281-58010
main69207-58010-C0i201605-201910
sub69281-58010
main69207-58010-C0i200812-201204
sub69281-58010
main69207-58010-E2i200601-201204
sub69281-58010
main69207-58010-E2i200601-200812
sub69281-58010
main69207-58010-E2i200601-200812
sub69281-58010
main69207-58010-E3i201204-201605
sub69281-58010
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69208-58010-B0i200601-200812
sub69282-58010
main69208-58010-C0i201204-201910
sub69282-58010
main69208-58010-C0i201605-201910
sub69282-58010
main69208-58010-C0i201204-201910
sub69282-58010
main69208-58010-C0i200812-201204
sub69282-58010
main69208-58010-E2i200601-201204
sub69282-58010
main69208-58010-E2i200601-200812
sub69282-58010
main69208-58010-E2i200601-200812
sub69282-58010
main69208-58010-E2i200601-200812
sub69282-58010
main69208-58010-E3i201204-201605
sub69282-58010
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-28050-A5i200601-201605
WHITE PEARL CS.,070
sub69227-28050
main69227-28050-B8i200601-201605
SILVER ME.,1F7
sub69227-28050
main69227-28050-C1i200601-201605
BLACK,202
sub69227-28050
main69227-28050-C3i201605
SPARKLING BLACK PEARL CS.,220
sub69227-28050
main69227-28050-D7i200601-201204
DK. RED M.M.,3Q3
sub69227-28050
main69227-28050-D8i201605
RED M.M.,2NN ,3R3
sub69227-28050
main69227-28050-E6i201605
DARK SHERRY M.M.,2PM ,4W4
sub69227-28050
main69227-28050-F4i200601-201204
SILKY GOLD M.M.,5A4
sub69227-28050
main69227-28050-J9i200601-201204
DK.BLUE MC.,8S6
sub69227-28050
main69227-28050-K2i200812-201204
LT.PURPLE M.M.,9AE
sub69227-28050
main69227-28050-P0i200601-201204
MEDIUM SILVER ME.,1F8
sub69227-28050
main69227-28050-P6i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69227-28050
main69227-28050-P6i201204-201605
ICE TITANIUM M.M.,1H4
sub69227-28050
main69227-28050-R1i200601-200812
LT.BLUE M.M.,8S7
sub69227-28050
main69227-28050-R3i201204-201605
GRAYISH BLUE M.M.,8V5
sub69227-28050
main69227-28050-X0i201204-201605
DEEP RED M.M.,3R9
sub69227-28050
main69250-58010-A2i200812-201605
WHITE PEARL CS.,070
sub69250-58010
main69250-58010-B1i200812-201605
SILVER ME.,1F7
sub69250-58010
main69250-58010-B4i200812-201204
MEDIUM SILVER ME.,1F8
sub69250-58010
main69250-58010-B9i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69250-58010
main69250-58010-B9i201204-201605
ICE TITANIUM M.M.,1H4
sub69250-58010
main69250-58010-C1i200812-201605
BLACK,202
sub69250-58010
main69250-58010-C2i201605
SPARKLING BLACK PEARL CS.,220
sub69250-58010
main69250-58010-D2i201204-201605
DEEP RED M.M.,3R9
sub69250-58010
main69250-58010-D3i200812-201204
DK. RED M.M.,3Q3
sub69250-58010
main69250-58010-D4i201605
RED M.M.,2NN ,3R3
sub69250-58010
main69250-58010-E2i201605
DARK SHERRY M.M.,2PM ,4W4
sub69250-58010
main69250-58010-F1i200812-201204
SILKY GOLD M.M.,5A4
sub69250-58010
main69250-58010-J2i200812-201204
DK.BLUE MC.,8S6
sub69250-58010
main69250-58010-J7i201204-201605
GRAYISH BLUE M.M.,8V5
sub69250-58010
main69250-58010-K0i200812-201204
LT.PURPLE M.M.,9AE
sub69250-58010
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69227-28050-A5i200601-201605
WHITE PEARL CS.,070
sub69227-28050
main69227-28050-B8i200601-201605
SILVER ME.,1F7
sub69227-28050
main69227-28050-C1i200601-201605
BLACK,202
sub69227-28050
main69227-28050-C3i201605
SPARKLING BLACK PEARL CS.,220
sub69227-28050
main69227-28050-D7i200601-201204
DK. RED M.M.,3Q3
sub69227-28050
main69227-28050-D8i201605
RED M.M.,2NN ,3R3
sub69227-28050
main69227-28050-E6i201605
DARK SHERRY M.M.,2PM ,4W4
sub69227-28050
main69227-28050-F4i200601-201204
SILKY GOLD M.M.,5A4
sub69227-28050
main69227-28050-J9i200601-201204
DK.BLUE MC.,8S6
sub69227-28050
main69227-28050-K2i200812-201204
LT.PURPLE M.M.,9AE
sub69227-28050
main69227-28050-P0i200601-201204
MEDIUM SILVER ME.,1F8
sub69227-28050
main69227-28050-P6i201204-201605
ICE TITANIUM M.M.,1H4
sub69227-28050
main69227-28050-P6i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69227-28050
main69227-28050-R1i200601-200812
LT.BLUE M.M.,8S7
sub69227-28050
main69227-28050-R3i201204-201605
GRAYISH BLUE M.M.,8V5
sub69227-28050
main69227-28050-X0i201204-201605
DEEP RED M.M.,3R9
sub69227-28050
main69250-58010-A2i200812-201605
WHITE PEARL CS.,070
sub69250-58010
main69250-58010-B1i200812-201605
SILVER ME.,1F7
sub69250-58010
main69250-58010-B4i200812-201204
MEDIUM SILVER ME.,1F8
sub69250-58010
main69250-58010-B9i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69250-58010
main69250-58010-B9i201204-201605
ICE TITANIUM M.M.,1H4
sub69250-58010
main69250-58010-C1i200812-201605
BLACK,202
sub69250-58010
main69250-58010-C2i201605
SPARKLING BLACK PEARL CS.,220
sub69250-58010
main69250-58010-D2i201204-201605
DEEP RED M.M.,3R9
sub69250-58010
main69250-58010-D3i200812-201204
DK. RED M.M.,3Q3
sub69250-58010
main69250-58010-D4i201605
RED M.M.,2NN ,3R3
sub69250-58010
main69250-58010-E2i201605
DARK SHERRY M.M.,2PM ,4W4
sub69250-58010
main69250-58010-F1i200812-201204
SILKY GOLD M.M.,5A4
sub69250-58010
main69250-58010-J2i200812-201204
DK.BLUE MC.,8S6
sub69250-58010
main69250-58010-J7i201204-201605
GRAYISH BLUE M.M.,8V5
sub69250-58010
main69250-58010-K0i200812-201204
LT.PURPLE M.M.,9AE
sub69250-58010
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69213-28010-A5i200601-201605
WHITE PEARL CS.,070
sub69213-28010
main69213-28010-B8i200601-201605
SILVER ME.,1F7
sub69213-28010
main69213-28010-C1i200601-201605
BLACK,202
sub69213-28010
main69213-28010-C3i201605
SPARKLING BLACK PEARL CS.,220
sub69213-28010
main69213-28010-D7i200601-201204
DK. RED M.M.,3Q3
sub69213-28010
main69213-28010-D8i201605
RED M.M.,2NN ,3R3
sub69213-28010
main69213-28010-E6i201605
DARK SHERRY M.M.,2PM ,4W4
sub69213-28010
main69213-28010-F4i200601-201204
SILKY GOLD M.M.,5A4
sub69213-28010
main69213-28010-J9i200601-201204
DK.BLUE MC.,8S6
sub69213-28010
main69213-28010-K2i200812-201204
LT.PURPLE M.M.,9AE
sub69213-28010
main69213-28010-P0i200601-201204
MEDIUM SILVER ME.,1F8
sub69213-28010
main69213-28010-P6i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69213-28010
main69213-28010-P6i201204-201605
ICE TITANIUM M.M.,1H4
sub69213-28010
main69213-28010-R1i200601-200812
LT.BLUE M.M.,8S7
sub69213-28010
main69213-28010-R3i201204-201605
GRAYISH BLUE M.M.,8V5
sub69213-28010
main69213-28010-X0i201204-201605
DEEP RED M.M.,3R9
sub69213-28010
main69230-28080-A0i201002-201605
WHITE PEARL CS.,070
sub69230-28080
main69230-28080-A0i201002-201204
sub69230-28080
main69230-28080-B0i201002-201204
sub69230-28080
main69230-28080-B0i201002-201605
SILVER ME.,1F7
sub69230-28080
main69230-28080-B4i201002-201204
MEDIUM SILVER ME.,1F8
sub69230-28080
main69230-28080-B5i201204-201605
ICE TITANIUM M.M.,1H4
sub69230-28080
main69230-28080-B5i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69230-28080
main69230-28080-C0i201002-201204
sub69230-28080
main69230-28080-C0i201002-201605
BLACK,202
sub69230-28080
main69230-28080-C2i201605
SPARKLING BLACK PEARL CS.,220
sub69230-28080
main69230-28080-D0i201204-201605
DEEP RED M.M.,3R9
sub69230-28080
main69230-28080-D1i201002-201204
DK. RED M.M.,3Q3
sub69230-28080
main69230-28080-D2i201605
RED M.M.,2NN ,3R3
sub69230-28080
main69230-28080-E2i201605
DARK SHERRY M.M.,2PM ,4W4
sub69230-28080
main69230-28080-F0i201002-201204
SILKY GOLD M.M.,5A4
sub69230-28080
main69230-28080-J0i201002-201204
DK.BLUE MC.,8S6
sub69230-28080
main69230-28080-J5i201204-201605
GRAYISH BLUE M.M.,8V5
sub69230-28080
main69230-28080-K0i201002-201204
LT.PURPLE M.M.,9AE
sub69230-28080
main69230-58020-A2i200812-201002
WHITE PEARL CS.,070
sub69230-58020
main69230-58020-B1i200812-201002
SILVER ME.,1F7
sub69230-58020
main69230-58020-B4i200812-201002
MEDIUM SILVER ME.,1F8
sub69230-58020
main69230-58020-C1i200812-201002
BLACK,202
sub69230-58020
main69230-58020-D3i200812-201002
DK. RED M.M.,3Q3
sub69230-58020
main69230-58020-F1i200812-201002
SILKY GOLD M.M.,5A4
sub69230-58020
main69230-58020-J2i200812-201002
DK.BLUE MC.,8S6
sub69230-58020
main69230-58020-K0i200812-201002
LT.PURPLE M.M.,9AE
sub69230-58020
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
main90386-08066i201204-201605
main90386-08066i200601-201204
main90386-08066i201204-201605
main90386-08066i201204-201605
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69213-28010-A5i200601-201605
WHITE PEARL CS.,070
sub69213-28010
main69213-28010-B8i200601-201605
SILVER ME.,1F7
sub69213-28010
main69213-28010-C1i200601-201605
BLACK,202
sub69213-28010
main69213-28010-C3i201605
SPARKLING BLACK PEARL CS.,220
sub69213-28010
main69213-28010-D7i200601-201204
DK. RED M.M.,3Q3
sub69213-28010
main69213-28010-D8i201605
RED M.M.,2NN ,3R3
sub69213-28010
main69213-28010-E6i201605
DARK SHERRY M.M.,2PM ,4W4
sub69213-28010
main69213-28010-F4i200601-201204
SILKY GOLD M.M.,5A4
sub69213-28010
main69213-28010-J9i200601-201204
DK.BLUE MC.,8S6
sub69213-28010
main69213-28010-K2i200812-201204
LT.PURPLE M.M.,9AE
sub69213-28010
main69213-28010-P0i200601-201204
MEDIUM SILVER ME.,1F8
sub69213-28010
main69213-28010-P6i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69213-28010
main69213-28010-P6i201204-201605
ICE TITANIUM M.M.,1H4
sub69213-28010
main69213-28010-R1i200601-200812
LT.BLUE M.M.,8S7
sub69213-28010
main69213-28010-R3i201204-201605
GRAYISH BLUE M.M.,8V5
sub69213-28010
main69213-28010-X0i201204-201605
DEEP RED M.M.,3R9
sub69213-28010
main69230-28080-A0i201002-201204
sub69230-28080
main69230-28080-A0i201002-201605
WHITE PEARL CS.,070
sub69230-28080
main69230-28080-B0i201002-201605
SILVER ME.,1F7
sub69230-28080
main69230-28080-B0i201002-201204
sub69230-28080
main69230-28080-B4i201002-201204
MEDIUM SILVER ME.,1F8
sub69230-28080
main69230-28080-B5i201204-201605
ICE TITANIUM M.M.,1H4
sub69230-28080
main69230-28080-B5i201605
ICE TITANIUM M.M.,1H4 ,2PL
sub69230-28080
main69230-28080-C0i201002-201605
BLACK,202
sub69230-28080
main69230-28080-C0i201002-201204
sub69230-28080
main69230-28080-C2i201605
SPARKLING BLACK PEARL CS.,220
sub69230-28080
main69230-28080-D0i201204-201605
DEEP RED M.M.,3R9
sub69230-28080
main69230-28080-D1i201002-201204
DK. RED M.M.,3Q3
sub69230-28080
main69230-28080-D2i201605
RED M.M.,2NN ,3R3
sub69230-28080
main69230-28080-E2i201605
DARK SHERRY M.M.,2PM ,4W4
sub69230-28080
main69230-28080-F0i201002-201204
SILKY GOLD M.M.,5A4
sub69230-28080
main69230-28080-J0i201002-201204
DK.BLUE MC.,8S6
sub69230-28080
main69230-28080-J5i201204-201605
GRAYISH BLUE M.M.,8V5
sub69230-28080
main69230-28080-K0i201002-201204
LT.PURPLE M.M.,9AE
sub69230-28080
main69230-58020-A2i200812-201002
WHITE PEARL CS.,070
sub69230-58020
main69230-58020-B1i200812-201002
SILVER ME.,1F7
sub69230-58020
main69230-58020-B4i200812-201002
MEDIUM SILVER ME.,1F8
sub69230-58020
main69230-58020-C1i200812-201002
BLACK,202
sub69230-58020
main69230-58020-D3i200812-201002
DK. RED M.M.,3Q3
sub69230-58020
main69230-58020-F1i200812-201002
SILKY GOLD M.M.,5A4
sub69230-58020
main69230-58020-J2i200812-201002
DK.BLUE MC.,8S6
sub69230-58020
main69230-58020-K0i200812-201002
LT.PURPLE M.M.,9AE
sub69230-58020
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69242-60030i200601-201605
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69241-28060i200601-201605
69293BSNAP, REAR DOOR OUTSIDE HANDLE
main69293-12030i200601-201605
main69293-12040i200601-201605
69330LOCK ASSY, REAR DOOR, RH
main69200-28040i200601-200612
sub69200-28041
main69200-28040i200601-200612
sub69200-28041
main69200-28040i200601-200612
sub69200-28041
main69200-28041i200701-200812
sub69200-28042
main69200-28041i200701-200812
sub69200-28042
main69200-28041i200701-200812
sub69200-28042
main69200-28041i200812-200911
sub69200-28042
main69200-28042i200912-201205
sub69200-28043
main69200-28043i201205-201605
main69330-28090i200601-200612
sub69330-28091
main69330-28091i200701-200812
69340LOCK ASSY, REAR DOOR, LH
main69300-28080i200601-200612
sub69300-28081
main69300-28080i200601-200612
sub69300-28081
main69300-28080i200601-200612
sub69300-28081
main69300-28081i200701-200812
sub69300-28082
main69300-28081i200701-200812
sub69300-28082
main69300-28081i200701-200812
sub69300-28082
main69300-28081i200812-200911
sub69300-28082
main69300-28082i200912-201205
sub69300-28083
main69300-28083i201205-201605
main69340-28180i200601-200612
sub69340-28181
main69340-28181i200701-200812
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
main69370-28100i200601-200701
sub69370-28101
main69370-28101i200702-201605
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
main69380-28110i200601-200701
sub69380-28111
main69380-28111i200702-201605
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
main69440-58011i200601-201605
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
main69440-58011i200601-201605
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
main69470-28120i200601-201605
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
main69470-28120i200601-201605
69485DSTRIKER, SLIDE DOOR OPEN, RH
main69485-28040i200601-201605
69486ESTRIKER, SLIDE DOOR OPEN, LH
main69486-28060i200601-201605
69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN
main69490-28040i200601-201605
69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE
main69499-28020i200601-201605
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
main69630-28150i200601-201605
main69630-28160i200601-201204
main69630-28160i200601-201204
main69630-28160i201204-201605
main69630-28160i201204-201605
main69630-28160i201204-201605
main69630-28160i201605
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
main69640-28230i200601-200812
main69640-28240i200601-200812
main69640-28240i200812-201605
main69640-28240i200601-200812
main69640-28240i200601-200812
8561828010SCREW, SLIDE ROOF MOTOR THRUST
main85618-28010
9010506260
main90105-06260
9011906779
main90119-06779
9014850003
main90148-50003
9014860073
main90148-60073
9014880040
main90148-80040
9015940202
main90159-40202
9017905118
main90179-05118
9017910186
main90179-10186
9046708006
main90467-08006
9095901619
main90959-01619
9155380614
main91553-80614
91673A0818
main91673-A0818

44 parts on this diagram · 1 diagram in section
