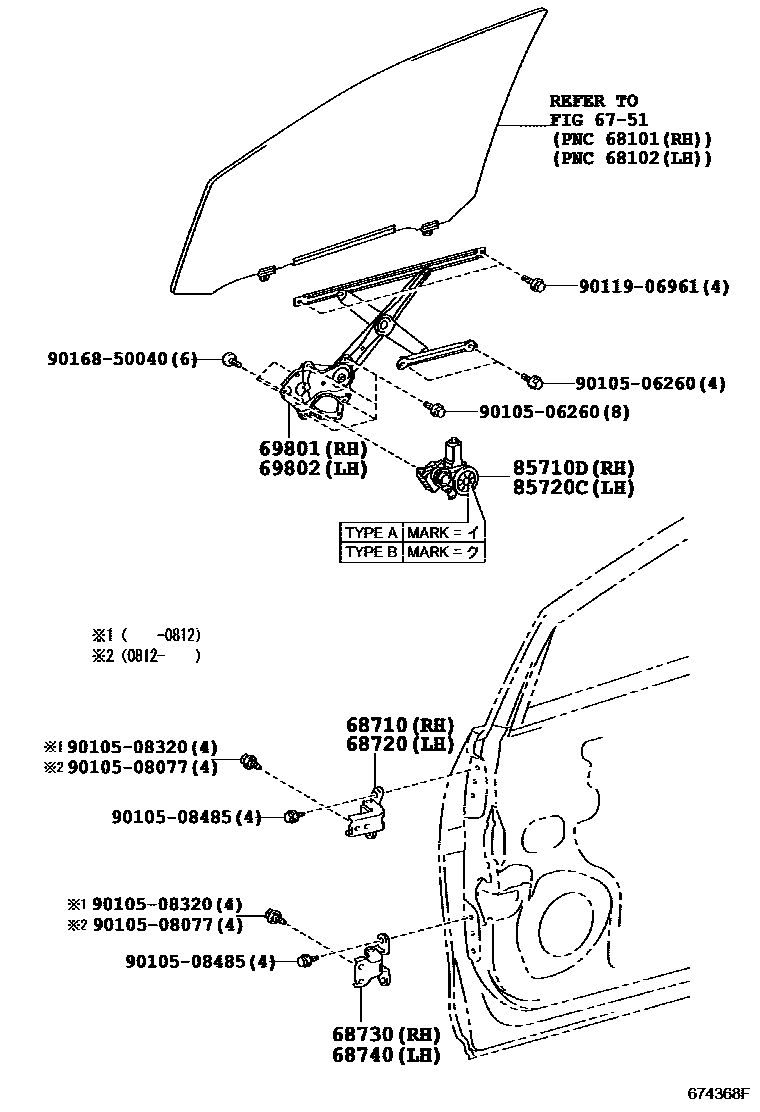

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iACR5#,GSR5#..CBU200601-200609

main68710-12151iACR5#,GSR5#..CBU200610-201605

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iACR5#,GSR5#..CBU200601-200609

main68720-12151iACR5#,GSR5#..CBU200610-201605

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iACR5#,GSR5#..CBU200601-200609

main68730-33021iACR5#,GSR5#..CBU200610-201605

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iACR5#,GSR5#..CBU200601-200609

sub68740-33021

main68740-33021iACR5#,GSR5#..CBU200610-201605

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28090iACR5#,GSR5#..CBU200601-200903

sub69801-28130

main69801-28130iACR5#,GSR5#..CBU200904-201605

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28070iACR5#,GSR5#..CBU200601-200903

sub69802-28100

main69802-28100iACR5#,GSR5#..CBU200904-201605

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-28140iACR5#,GSR5#..CBU200601-200708

sub85710-28141

main85710-28141iACR5#,GSR5#..CBU200709-201204

main85710-28141iACR5#,GSR5#..CBU201204-201312

main85710-28142iACR5#,GSR5#..CBU201312-201408

sub85710-28143

main85710-28143iACR5#,GSR5#..CBU201409-201605

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-28120iACR5#,GSR5#..CBU200601-200708

sub85720-28121

main85720-28121iACR5#,GSR5#..CBU200709-201204

main85720-28121iACR5#,GSR5#..CBU201204-201312

main85720-28122iACR5#,GSR5#..CBU201312-201408

sub85720-28123

main85720-28123iACR5#,GSR5#..CBU201409-201605

9010506260

main90105-06260

9010508077

main90105-08077

9010508320

main90105-08320

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

15 parts on this diagram · 1 diagram in section
