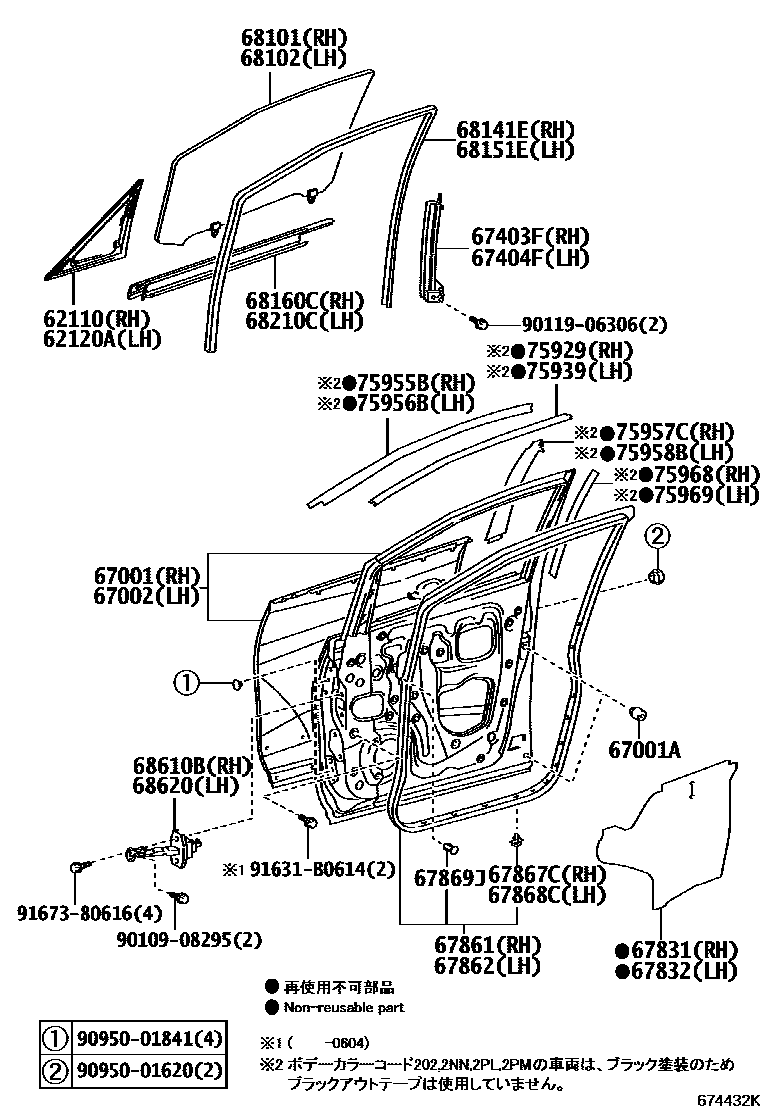

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

62110WINDOW ASSY, FRONT SIDE FIX, RH

main62110-28050iACR5#,GSR5#..CBU200601-200710

sub62110-28051

main62110-28051iACR5#,GSR5#..CBU200711-200810

sub62110-28052

main62110-28052iACR5#,GSR5#..CBU200811-201605

62120AWINDOW ASSY, FRONT SIDE FIX, LH

main62120-28180iACR5#,GSR5#..CBU200601-200710

sub62120-28181

main62120-28181iACR5#,GSR5#..CBU200711-200810

sub62120-28182

main62120-28182iACR5#..CBU200811-201605

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-28200iACR5#,GSR5#..(G,X)..CBU200601-201605

main67001-28210iACR5#,GSR5#..AERAS..CBU200601-200812

main67001-28240iACR5#,GSR5#..AERAS..CBU200812-201605

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iACR5#..CBU200601-201605

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-28210iACR5#,GSR5#..(G,X)..CBU200601-201605

main67002-28220iACR5#,GSR5#..AERAS..CBU200601-200812

main67002-28260iACR5#,GSR5#..AERAS..CBU200812-201605

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-28090iACR5#..CBU200601-201605

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-28090iACR5#..CBU200601-201605

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-28060iACR5#,GSR5#..CBU200812-200912

main67801-28060iACR5#,GSR5#..CBU200812-200912

main67801-28060iACR5#,GSR5#..(AERAS,G)..CBU200601-200812

main67801-28060iACR5#,GSR5#..(AERAS,G)..CBU201204-201605

main67801-28060iACR5#..CBU201605

main67801-28060iACR5#,GSR5#..CBU200912-201204

main67801-28060iACR5#,GSR5#..CBU200912-201204

main67801-28060iACR5#,GSR5#..CBU201204-201605

main67831-28160iACR5#,GSR5#..CBU200601-201010

sub67831-28161

sub67832-28130

main67831-28161iACR5#..CBU201010-201605

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-28070iACR5#..CBU201605

main67802-28070iACR5#,GSR5#..CBU200812-200912

main67802-28070iACR5#,GSR5#..(AERAS,G)..CBU200601-200812

main67802-28070iACR5#,GSR5#..CBU200812-200912

main67802-28070iACR5#,GSR5#..(AERAS,G)..CBU201204-201605

main67802-28070iACR5#,GSR5#..(AERAS,G)..CBU201204-201605

main67802-28070iACR5#,GSR5#..CBU200912-201204

main67802-28070iACR5#,GSR5#..CBU200912-201204

main67831-28160iACR5#,GSR5#..CBU200601-201010

sub67831-28161

sub67832-28130

main67832-28130iACR5#..CBU201010-201605

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-28080iACR5#,GSR5#..CBU200601-201205

sub67861-28081

main67861-28081iACR5#,GSR5#..CBU201206-201302

sub67861-28082

main67861-28082iACR5#,GSR5#..CBU201303-201605

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-28080iACR5#,GSR5#..CBU200601-201205

sub67862-28081

main67862-28081iACR5#,GSR5#..CBU201206-201302

sub67862-28082

main67862-28082iACR5#,GSR5#..CBU201303-201605

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iACR5#,GSR5#..CBU200601-201605

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iACR5#,GSR5#..CBU200601-201605

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iACR5#,GSR5#..CBU200601-201605

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-28240iACR5#,GSR5#..CBU200601-200812

sub68101-28241

main68101-28241iACR5#,GSR5#..CBU200812-201109

sub68101-28242

main68101-28242iACR5#,GSR5#..CBU201110-201605

main68101-28250iGSR5#..07S..CBU200601-201109

main68101-28251iGSR5#..07S..CBU;ACR5#..07S..AERAS..CBU201110-201204

main68101-28350iACR5#,GSR5#..07S..AERAS..CBU201204-201212

main68101-28351iACR5#,GSR5#..07S..AERAS..CBU201301-201605

main68101-28351iACR5#..AEPR..CBU201605

main68101-28450iACR5#..AEPG,AESM201605

main68101-28450iACR5#..07S..AERAS..CBU201409-201605

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-28240iACR5#,GSR5#..CBU200601-200812

sub68102-28241

main68102-28241iACR5#,GSR5#..CBU200812-201109

sub68102-28242

main68102-28242iACR5#..AERAS..CBU201110-201605

main68102-28250iGSR5#..07S..CBU;ACR5#..07S..AERAS..CBU200601-201109

main68102-28251iGSR5#..07S..CBU;ACR5#..07S..AERAS..CBU201110-201204

main68102-28350iACR5#,GSR5#..G201204-201212

main68102-28351iACR5#,GSR5#..07S..AERAS..CBU201301-201605

main68102-28351iACR5#..AEPR..CBU201605

main68102-28430iACR5#..07S..AERAS..CBU201409-201605

main68102-28430iACR5#..AEPG,AESM201605

68141ERUN, FRONT DOOR GLASS, RH

main68141-28120iACR5#,GSR5#..CBU200601-201204

main68141-28120iACR5#,GSR5#..CBU201204-201312

main68141-28180iACR5#,GSR5#..CBU201312-201605

main68141-28180iACR5#..CBU201605

68151ERUN, FRONT DOOR GLASS, LH

main68151-28090iACR5#,GSR5#..CBU200601-201204

main68151-28090iACR5#,GSR5#..CBU201204-201312

main68151-28150iACR5#,GSR5#..CBU201312-201605

main68151-28150iACR5#..CBU201605

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-28060iACR5#..CBU200601-201605

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-28060iACR5#,GSR5#..CBU200601-201605

68610BCHECK ASSY, FRONT DOOR, RH

main68610-28060iACR5#,GSR5#..CBU200601-201605

68620CHECK ASSY, FRONT DOOR, LH

main68610-28060iACR5#,GSR5#..CBU200601-201605

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-28020iACR5#,GSR5#..CBU200601-201605

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-28020iACR5#,GSR5#..CBU200601-201605

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-28030iACR5#,GSR5#..CBU200601-201605

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-28030iACR5#,GSR5#..CBU200601-201605

75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH

main75957-28030iACR5#,GSR5#..CBU200601-201605

75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH

main75958-28030iACR5#,GSR5#..CBU200601-201605

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75968-28020iACR5#,GSR5#..CBU200601-201605

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75969-28020iACR5#,GSR5#..CBU200601-201605

9010908295

main90109-08295

9011906306

main90119-06306

9095001620

main90950-01620

9095001841

main90950-01841

91631B0614

main91631-B0614

9167380616

main91673-80616

36 parts on this diagram · 2 diagrams in section
