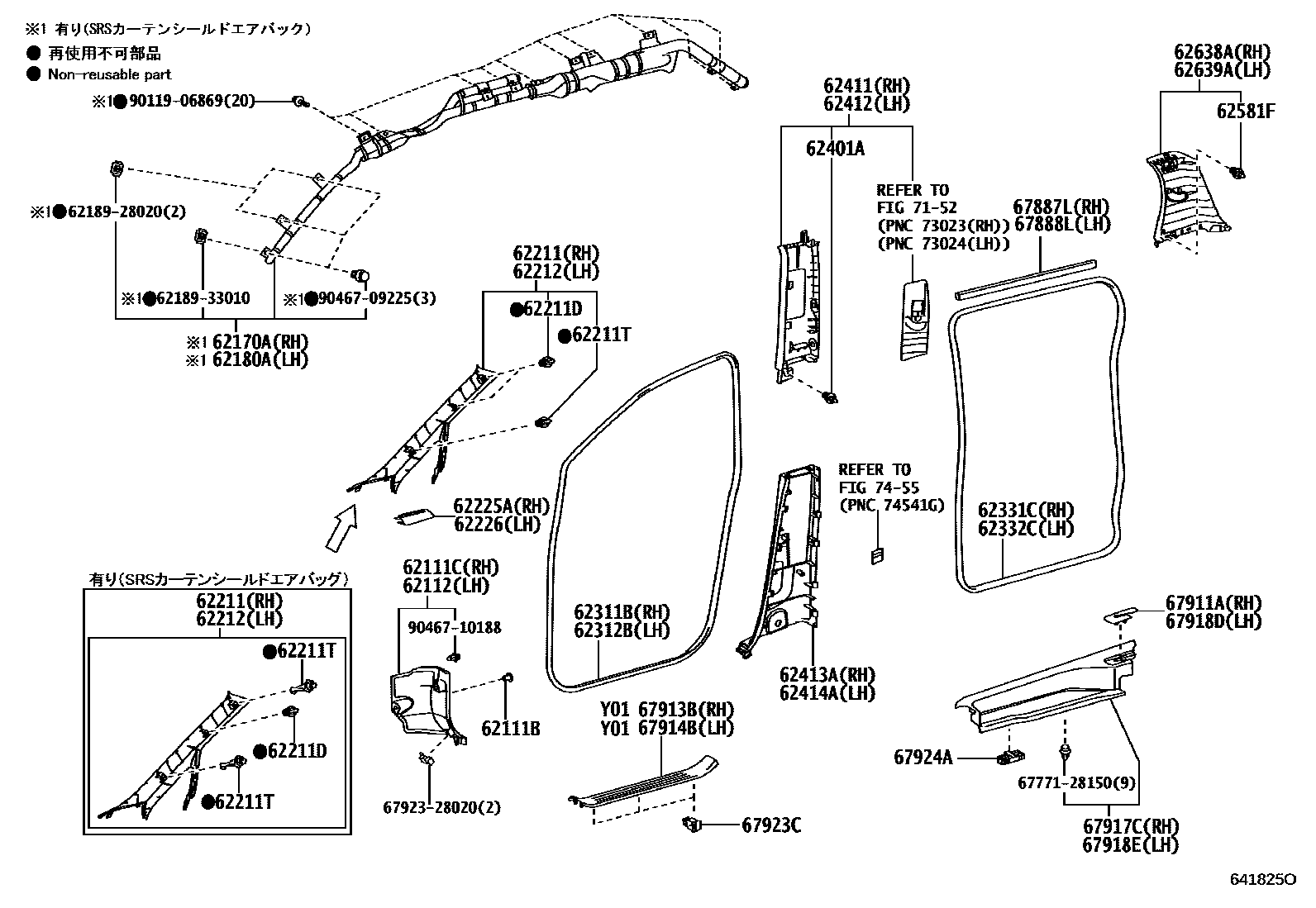

INSIDE TRIM BOARD

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iACR5#..CBU201312-201605

main90467-06155iACR5#,GSR5#..CBU201008-201311

main90467-06193-B2iACR5#,GSR5#..AERAS..CBU200812-201007

MD.GRAY,TRIM1#

main90467-06193-B3iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main90467-06193-E0iACR5#,GSR5#..CBU200601-201007

GREGE,TRIM4#

62111CBOARD, COWL SIDE TRIM, RH

main62111-28160-B0iACR5#,GSR5#..AERAS..CBU200601-200612

GRAY,TRIM1#

sub62111-28190

main62111-28160-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM4#

sub62111-28190

main62111-28190-B0iACR5#,GSR5#..AERAS..CBU200701-200812

GRAY,TRIM1#

sub62111-28200

main62111-28190-B1iACR5#,GSR5#..AERAS..CBU200812-201110

MD.GRAY,TRIM1#

sub62111-28200

main62111-28190-E0iACR5#,GSR5#..CBU200701-201110

GREGE,TRIM4#

sub62111-28200

main62111-28200-A0iACR5#,GSR5#..CBU201204-201305

SHELL,TRIM0#

sub62111-28201

main62111-28200-B0iACR5#,GSR5#..AERAS..CBU201111-201204

MD.GRAY,TRIM1#

sub62111-28201

main62111-28200-C0iACR5#,GSR5#..AERAS..CBU201204-201305

BLACK,TRIM2#

sub62111-28201

main62111-28200-E0iACR5#,GSR5#..CBU201111-201204

GREGE,TRIM4#

sub62111-28201

main62111-28201-A0iACR5#,GSR5#..CBU201306-201605

SHELL,TRIM0#

main62111-28201-C0iACR5#..07S..AERAS..CBU201306-201605

BLACK,TRIM2#,4#

main62111-28201-C0iACR5#..07S..AERAS..CBU201306-201605

BLACK,TRIM2#

main62111-28201-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-28170-A0iACR5#,GSR5#..CBU201204-201305

SHELL,TRIM0#

sub62112-28171

main62112-28170-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

sub62112-28171

main62112-28170-B1iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

sub62112-28171

main62112-28170-C0iACR5#,GSR5#..AERAS..CBU201204-201305

BLACK,TRIM2#

sub62112-28171

main62112-28170-E0iACR5#,GSR5#..CBU200601-201204

GREGE,TRIM4#

sub62112-28171

main62112-28171-A0iACR5#,GSR5#..CBU201306-201605

SHELL,TRIM0#

main62112-28171-C0iACR5#..AESM201306-201605

BLACK,TRIM2#

main62112-28171-C0iACR5#..07S..AERAS..CBU201306-201605

BLACK,TRIM2#,4#

main62112-28171-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

62211GARNISH, FRONT PILLAR, RH

main62210-28060-B0iACR5#,GSR5#..AERAS..CBU200601-200701

LT.GRAY,TRIM1#

sub62210-28120

main62210-28060-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200701

GREGE,TRIM4#

sub62210-28120

main62210-28101-A0iACR5#,GSR5#..CBU201204-201304

SHELL,TRIM0#

sub62210-28102

main62210-28101-B0iACR5#,GSR5#..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62210-28102

main62210-28101-B0iACR5#,GSR5#..AERAS..CBU201204-201304

LT.GRAY,TRIM2#

sub62210-28102

main62210-28101-E0iACR5#,GSR5#..CBU200701-201204

GREGE,TRIM4#

sub62210-28102

main62210-28102-A0iACR5#,GSR5#..CBU201305-201605

SHELL,TRIM0#

sub62210-28180

main62210-28102-B0iACR5#,GSR5#..AERAS..CBU201305-201605

LT.GRAY,TRIM2#

sub62210-28180

main62210-28180-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#

main62210-28180-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main62210-28180-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#,4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iACR5#,GSR5#..CBU200601-201605

main90467-10161iACR5#,GSR5#..CBU200812-201204

main90467-10161iACR5#,GSR5#..CBU201204-201605

main90467-10161iACR5#..CBU201605

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10167iACR5#,GSR5#..CBU200601-201605

62212GARNISH, FRONT PILLAR, LH

main62220-28060-B0iACR5#,GSR5#..AERAS..CBU200601-200701

LT.GRAY,TRIM1#

sub62220-28120

main62220-28060-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200701

GREGE,TRIM4#

sub62220-28120

main62220-28101-A0iACR5#,GSR5#..CBU201204-201304

SHELL,TRIM0#

sub62220-28102

main62220-28101-B0iACR5#,GSR5#..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62220-28102

main62220-28101-B0iACR5#,GSR5#..AERAS..CBU201204-201304

LT.GRAY,TRIM2#

sub62220-28102

main62220-28101-E0iACR5#,GSR5#..CBU200701-201204

GREGE,TRIM4#

sub62220-28102

main62220-28102-A0iACR5#,GSR5#..CBU201305-201605

SHELL,TRIM0#

sub62220-28180

main62220-28102-B0iACR5#,GSR5#..AERAS..CBU201305-201605

LT.GRAY,TRIM2#

sub62220-28180

main62220-28180-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#

main62220-28180-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main62220-28180-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#,4#

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-28030-B0iACR5#,GSR5#..AERAS..CBU200601-200612

LT.GRAY,TRIM1#

sub62225-28050

main62225-28030-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM4#

sub62225-28050

main62225-28050-A0iACR5#,GSR5#..CBU201204-201306

SHELL,TRIM0#

sub62225-28051

main62225-28050-B0iACR5#,GSR5#..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62225-28051

main62225-28050-B0iACR5#,GSR5#..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62225-28051

main62225-28050-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200701-201204

GREGE,TRIM4#

sub62225-28051

main62225-28051-A0iACR5#,GSR5#..CBU201307-201605

SHELL,TRIM0#

main62225-28051-B0iACR5#,GSR5#..AERAS..CBU201307-201605

LT.GRAY,TRIM2#

main62225-28080-C0iACR5#..AESM201605

BLACK,TRIM2#

main62225-28080-C0iACR5#..AESM201605

BLACK,TRIM0#,4#

main62225-28080-C0iACR5#..AESM201605

BLACK,TRIM2#,4#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-28030-B0iACR5#,GSR5#..AERAS..CBU200601-200612

LT.GRAY,TRIM1#

sub62226-28050

main62226-28030-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM4#

sub62226-28050

main62226-28050-A0iACR5#,GSR5#..CBU201204-201306

SHELL,TRIM0#

sub62226-28051

main62226-28050-B0iACR5#,GSR5#..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62226-28051

main62226-28050-B0iACR5#,GSR5#..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62226-28051

main62226-28050-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200701-201204

GREGE,TRIM4#

sub62226-28051

main62226-28051-A0iACR5#,GSR5#..CBU201307-201605

SHELL,TRIM0#

main62226-28051-B0iACR5#,GSR5#..AERAS..CBU201307-201605

LT.GRAY,TRIM2#

main62226-28080-C0iACR5#..AESM201605

BLACK,TRIM2#

main62226-28080-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main62226-28080-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#,4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-28100-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main62311-28100-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main62311-28100-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#,4#

main62311-28100-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#

main62311-28100-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main62311-28100-C0iACR5#,GSR5#..AERAS..CBU200812-201204

BLACK,TRIM1#

main62311-28100-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-201204

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-28100-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main62312-28100-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main62312-28100-C0iACR5#..AEPG201204-201605

BLACK,TRIM2#,4#

main62312-28100-C0iACR5#,GSR5#..AERAS..CBU200812-201204

BLACK,TRIM1#

main62312-28100-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#

main62312-28100-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main62312-28100-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-201204

GREGE,TRIM4#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main67871-28060-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main67871-28060-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main67871-28060-C0iACR5#..AESM201204-201605

BLACK,TRIM2#,4#

main67871-28060-C0iACR5#..AESM201204-201605

BLACK,TRIM2#

main67871-28060-C0iACR5#..AESM201605

BLACK,TRIM0#,4#

main67871-28060-C0iACR5#,GSR5#..AERAS..CBU200812-201204

BLACK,TRIM1#

main67871-28060-E0iACR5#..07S..AERAS..CBU200601-200812

main67871-28060-E0iGSR5#..CBU;ACR5#..(G,X)..CBU200601-201204

GREGE,TRIM4#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main67872-28110-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main67872-28110-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

main67872-28110-C0iACR5#..AEPG201204-201605

BLACK,TRIM2#,4#

main67872-28110-C0iACR5#..AESM201605

BLACK,TRIM0#,4#

main67872-28110-C0iACR5#..AEPG201204-201605

BLACK,TRIM2#

main67872-28110-C0iACR5#,GSR5#..AERAS..CBU200812-201204

BLACK,TRIM1#

main67872-28110-E0iACR5#..07S..AERAS..CBU200601-200812

main67872-28110-E0iACR5#..07S..AERAS..CBU200601-201204

GREGE,TRIM4#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161iACR5#,GSR5#..CBU200601-201605

62411GARNISH, CENTER PILLAR, RH

main62410-28080-B1iACR5#,GSR5#..AERAS..CBU200601-200612

LT.GRAY,TRIM13

sub62410-28100

main62410-28080-E1iGSR5#..CBU;ACR5#..(G,X)..CBU200601-200612

GREGE,TRIM4#

sub62410-28100

main62410-28080-E1iGSR5#..CBU;ACR5#..(G,X)..CBU200601-200612

GREGE,TRIM45

sub62410-28100

main62410-28100-A0iACR5#,GSR5#..CBU201204-201306

SHELL,TRIM0#

sub62410-28101

main62410-28100-B0iACR5#,GSR5#..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62410-28101

main62410-28100-B0iACR5#,GSR5#..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62410-28101

main62410-28100-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200701-201204

GREGE,TRIM4#

sub62410-28101

main62410-28101-A0iACR5#,GSR5#..CBU201307-201512

SHELL,TRIM0#

sub62410-28140

main62410-28101-B0iACR5#,GSR5#..AERAS..CBU201307-201512

LT.GRAY,TRIM2#

sub62410-28140

main62410-28130-C0iACR5#..AEPG201605

BLACK,TRIM0#,4#

main62410-28130-C0iACR5#..AEPG201605

BLACK,TRIM2#,4#

main62410-28130-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#

main62410-28140-A0iACR5#,GSR5#..CBU201601-201605

SHELL,TRIM0#

main62410-28140-B0iACR5#,GSR5#..AERAS..CBU201601-201605

LT.GRAY,TRIM2#

62412GARNISH, CENTER PILLAR, LH

main62420-28080-B1iACR5#,GSR5#..AERAS..CBU200601-200612

LT.GRAY,TRIM13

sub62420-28100

main62420-28080-E1iACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM45

sub62420-28100

main62420-28080-E1iGSR5#..CBU;ACR5#..(G,X)..CBU200601-200612

GREGE,TRIM4#

sub62420-28100

main62420-28100-A0iACR5#,GSR5#..CBU201204-201306

SHELL,TRIM0#

sub62420-28101

main62420-28100-B0iACR5#,GSR5#..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62420-28101

main62420-28100-B0iACR5#,GSR5#..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62420-28101

main62420-28100-E0iACR5#,GSR5#..CBU200701-201204

GREGE,TRIM4#

sub62420-28101

main62420-28101-A0iACR5#,GSR5#..CBU201307-201512

SHELL,TRIM0#

sub62420-28140

main62420-28101-B0iACR5#,GSR5#..AERAS..CBU201307-201512

LT.GRAY,TRIM2#

sub62420-28140

main62420-28130-C0iACR5#..AEPG201605

BLACK,TRIM0#,4#

main62420-28130-C0iACR5#..AEPG201605

BLACK,TRIM2#,4#

main62420-28130-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#

main62420-28140-A0iACR5#,GSR5#..CBU201601-201605

SHELL,TRIM0#

main62420-28140-B0iACR5#,GSR5#..AERAS..CBU201601-201605

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-28080-B0iACR5#,GSR5#..AERAS..CBU200601-200612

GRAY,TRIM1#

sub62413-28100

main62413-28080-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM4#

sub62413-28100

main62413-28100-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main62413-28100-B0iACR5#,GSR5#..AERAS..CBU200701-200812

GRAY,TRIM1#

main62413-28100-B1iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main62413-28100-C0iACR5#..AEPG201204-201605

BLACK,TRIM2#,4#

main62413-28100-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#

main62413-28100-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main62413-28100-E0iACR5#,GSR5#..CBU200701-201204

GREGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-28110-B0iACR5#,GSR5#..AERAS..CBU200601-200612

GRAY,TRIM1#

sub62414-28130

main62414-28110-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM4#

sub62414-28130

main62414-28130-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

sub62414-28130

main62414-28130-B0iACR5#,GSR5#..AERAS..CBU200701-200812

GRAY,TRIM1#

sub62414-28130

main62414-28130-B1iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

sub62414-28130

main62414-28130-C0iGSR5#..AERAS;ACR5#..08S..AERAS..CBU201204-201605

BLACK,TRIM2#,4#

sub62414-28130

main62414-28130-C0iGSR5#..AERAS;ACR5#..08S..AERAS..CBU201204-201605

BLACK,TRIM2#

sub62414-28130

main62414-28130-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

sub62414-28130

main62414-28130-E0iACR5#,GSR5#..CBU200701-201204

GREGE,TRIM4#

sub62414-28130

62581FCLIP (FOR QUARTER PILLAR GARNISH)

main90467-10161iACR5#,GSR5#..07S..(AERAS,G)..CBU200601-201605

62638AGARNISH, QUARTER PILLAR, RH

main62638-28190-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200612

LT.GRAY,TRIM1#

sub62638-28250

main62638-28190-E0iACR5#,GSR5#..07S..CBU200601-200612

GREGE,TRIM4#

sub62638-28250

main62638-28200-B0iACR5#,GSR5#..08S..AERAS..CBU200601-200612

LT.GRAY,TRIM1#

sub62638-28260

main62638-28200-E0iGSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU200601-200612

GREGE,TRIM4#

sub62638-28260

main62638-28250-A0iACR5#,GSR5#..07S..CBU201204-201306

SHELL,TRIM0#

sub62638-28251

main62638-28250-B0iACR5#,GSR5#..07S..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62638-28251

main62638-28250-B0iACR5#,GSR5#..07S..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62638-28251

main62638-28250-E0iACR5#,GSR5#..07S..CBU200701-201204

GREGE,TRIM4#

sub62638-28251

main62638-28251-A0iACR5#,GSR5#..07S..CBU201307-201605

SHELL,TRIM0#

main62638-28251-B0iACR5#,GSR5#..07S..AERAS..CBU201307-201605

LT.GRAY,TRIM2#

main62638-28260-A0iACR5#,GSR5#..08S..CBU201204-201306

SHELL,TRIM0#

sub62638-28261

main62638-28260-B0iACR5#,GSR5#..08S..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62638-28261

main62638-28260-B0iACR5#,GSR5#..08S..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62638-28261

main62638-28260-E0iGSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU200701-201204

GREGE,TRIM4#

sub62638-28261

main62638-28261-A0iACR5#,GSR5#..08S..CBU201307-201605

SHELL,TRIM0#

main62638-28261-B0iACR5#,GSR5#..08S..AERAS..CBU201307-201605

LT.GRAY,TRIM2#

main62638-28390-C0iACR5#..AESM201605

BLACK,TRIM2#

main62638-28390-C0iACR5#..AEPG201605

BLACK,TRIM0#,4#

main62638-28390-C0iACR5#..AEPG201605

BLACK,TRIM2#,4#

main62638-28400-C0iACR5#..08S201605

BLACK,TRIM2#

62639AGARNISH, QUARTER PILLAR, LH

main62639-28220-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200612

LT.GRAY,TRIM1#

sub62639-28290

main62639-28220-E0iACR5#,GSR5#..07S..(AERAS,G)..CBU200601-200612

GREGE,TRIM4#

sub62639-28290

main62639-28230-A0iACR5#..07S..AERAS..CBU201204-201306

SHELL,TRIM0#

sub62639-28231

main62639-28230-A0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU201204-201306

sub62639-28231

main62639-28230-A0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU201204-201306

sub62639-28231

main62639-28230-A0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU201204-201306

sub62639-28231

main62639-28230-B0iACR5#..07S..AERAS..CBU201204-201306

sub62639-28231

main62639-28230-B0iACR5#..07S..AERAS..CBU201204-201306

sub62639-28231

main62639-28230-B0iACR5#..07S..AERAS..CBU201204-201306

sub62639-28231

main62639-28230-B0iACR5#..07S..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62639-28231

main62639-28230-B0iACR5#,GSR5#..08S..AERAS..CBU200601-201204

LT.GRAY,TRIM1#

sub62639-28231

main62639-28230-B0iACR5#..07S..AERAS..CBU200601-201204

sub62639-28231

main62639-28230-B0iACR5#..07S..AERAS..CBU200601-201204

sub62639-28231

main62639-28230-B0iACR5#..07S..AERAS..CBU200601-201204

sub62639-28231

main62639-28230-E0iACR5#..X..CBU;ACR5#..08S..G;GSR5#..08S..CBU200601-201204

sub62639-28231

main62639-28230-E0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU200601-201204

GREGE,TRIM4#

sub62639-28231

main62639-28230-E0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU200601-201204

sub62639-28231

main62639-28230-E0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU200601-201204

sub62639-28231

main62639-28231-A0iACR5#..07S..AERAS..CBU201307-201605

main62639-28231-A0iACR5#..07S..AERAS..CBU201307-201605

SHELL,TRIM0#

main62639-28231-A0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU201307-201605

main62639-28231-A0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU201307-201605

main62639-28231-B0iACR5#..07S..AERAS..CBU201307-201605

main62639-28231-B0iACR5#..07S..AERAS..CBU201307-201605

LT.GRAY,TRIM2#

main62639-28231-B0iACR5#..07S..AERAS..CBU201307-201605

main62639-28231-B0iACR5#..07S..AERAS..CBU201307-201605

main62639-28290-A0iACR5#,GSR5#..07S..(AERAS,G)..CBU201204-201306

SHELL,TRIM0#

sub62639-28291

main62639-28290-B0iACR5#,GSR5#..07S..AERAS..CBU200701-201204

LT.GRAY,TRIM1#

sub62639-28291

main62639-28290-B0iACR5#,GSR5#..07S..AERAS..CBU201204-201306

LT.GRAY,TRIM2#

sub62639-28291

main62639-28290-E0iACR5#,GSR5#..07S..(AERAS,G)..CBU200701-201204

GREGE,TRIM4#

sub62639-28291

main62639-28291-A0iACR5#,GSR5#..07S..(AERAS,G)..CBU201307-201605

SHELL,TRIM0#

main62639-28291-B0iACR5#,GSR5#..07S..AERAS..CBU201307-201605

LT.GRAY,TRIM2#

main62639-28410-C0iACR5#..AEPG201605

BLACK,TRIM0#,4#

main62639-28410-C0iACR5#..AESM201605

BLACK,TRIM2#,4#

main62639-28410-C0iACR5#..AESM201605

BLACK,TRIM2#

main62639-28420-C0iACR5#..08S201605

main62639-28420-C0iACR5#..07S..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#

main62639-28420-C0iACR5#..07S..(AEPR,AERAS)..CBU201605

main62639-28420-C0iACR5#..07S..(AEPR,AERAS)..CBU201605

67887LWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-28090iACR5#,GSR5#..CBU200601-201605

67888LWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-28100iACR5#,GSR5#..CBU200601-201605

67911APLATE, REAR DOOR SCUFF, RH

main67933-28020-A0iACR5#,GSR5#..08S..CBU201204-201605

SHELL,TRIM0#

main67933-28020-B0iACR5#,GSR5#..08S..AERAS..CBU200601-200812

GRAY,TRIM1#

main67933-28020-B1iACR5#,GSR5#..08S..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main67933-28020-C0iACR5#..08S201204-201605

BLACK,TRIM2#

main67933-28020-E0iACR5#,GSR5#..08S..CBU200601-201204

GREGE,TRIM4#

main67933-28030-A0iACR5#,GSR5#..07S..CBU201204-201605

SHELL,TRIM0#

main67933-28030-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

GRAY,TRIM1#

main67933-28030-B1iACR5#,GSR5#..07S..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main67933-28030-C0iACR5#..AEPG201605

BLACK,TRIM0#,4#

main67933-28030-C0iGSR5#..07S..AERAS201204-201605

BLACK,TRIM2#

main67933-28030-C0iGSR5#..07S..AERAS201204-201605

BLACK,TRIM2#,4#

main67933-28030-E0iACR5#,GSR5#..07S..CBU200601-201204

GREGE,TRIM4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-28050-B0iACR5#,GSR5#..AERAS..CBU200601-200612

GRAY,TRIM1#

sub67913-28070

main67913-28050-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM4#

sub67913-28070

main67913-28070-A0iACR5#,GSR5#..CBU201204-201305

SHELL,TRIM0#

sub67913-28071

main67913-28070-B0iACR5#,GSR5#..AERAS..CBU200701-200812

GRAY,TRIM1#

sub67913-28071

main67913-28070-B1iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

sub67913-28071

main67913-28070-C0iACR5#,GSR5#..AERAS..CBU201204-201305

BLACK,TRIM2#

sub67913-28071

main67913-28070-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200701-201204

GREGE,TRIM4#

sub67913-28071

main67913-28071-A0iACR5#,GSR5#..CBU201306-201605

SHELL,TRIM0#

main67913-28071-C0iACR5#..AESM201306-201605

BLACK,TRIM2#

main67913-28071-C0iACR5#..AESM201306-201605

BLACK,TRIM2#,4#

main67913-28071-C0iACR5#..AEPG201605

BLACK,TRIM0#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-28050-B0iACR5#,GSR5#..AERAS..CBU200601-200612

GRAY,TRIM1#

sub67914-28070

main67914-28050-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-200612

GREGE,TRIM4#

sub67914-28070

main67914-28070-A0iACR5#,GSR5#..CBU201204-201305

SHELL,TRIM0#

sub67914-28071

main67914-28070-B0iACR5#,GSR5#..AERAS..CBU200701-200812

GRAY,TRIM1#

sub67914-28071

main67914-28070-B1iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

sub67914-28071

main67914-28070-C0iACR5#,GSR5#..AERAS..CBU201204-201305

BLACK,TRIM2#

sub67914-28071

main67914-28070-E0iACR5#,GSR5#..CBU200701-201204

GREGE,TRIM4#

sub67914-28071

main67914-28071-A0iACR5#,GSR5#..CBU201306-201605

SHELL,TRIM0#

main67914-28071-C0iACR5#..(AEPR,AERAS)..CBU201306-201605

BLACK,TRIM2#

main67914-28071-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main67914-28071-C0iACR5#..(AEPR,AERAS)..CBU201306-201605

BLACK,TRIM2#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-28110-B0iACR5#,GSR5#..AERAS..CBU200601-200604

GRAY,TRIM1#

sub67917-28111

main67917-28110-E0iGSR5#..CBU;ACR5#..(G,X)..CBU200601-200604

GREGE,TRIM4#

sub67917-28111

main67917-28111-B0iACR5#,GSR5#..AERAS..CBU200605-200612

GRAY,TRIM1#

sub67917-28140

main67917-28111-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200605-200612

GREGE,TRIM4#

sub67917-28140

main67917-28140-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main67917-28140-B0iACR5#,GSR5#..AERAS..CBU200701-200812

GRAY,TRIM1#

main67917-28140-B1iACR5#,GSR5#..08S..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main67917-28140-C0iACR5#..AESM201204-201605

BLACK,TRIM2#,4#

main67917-28140-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#

main67917-28140-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main67917-28140-E0iACR5#,GSR5#..07S..(AERAS,G)..CBU200701-201204

GREGE,TRIM4#

67918DPLATE, REAR DOOR SCUFF, LH

main67934-28020-A0iACR5#..07S..AERAS..CBU201204-201605

main67934-28020-A0iACR5#..07S..AERAS..CBU201204-201605

main67934-28020-A0iACR5#..07S..AERAS..CBU201204-201605

main67934-28020-A0iACR5#..07S..AERAS..CBU201204-201605

SHELL,TRIM0#

main67934-28020-B0iACR5#..07S..AERAS..CBU200601-200812

main67934-28020-B0iACR5#..07S..AERAS..CBU200601-200812

GRAY,TRIM1#

main67934-28020-B0iACR5#..07S..AERAS..CBU200601-200812

main67934-28020-B0iACR5#,GSR5#..08S..AERAS..CBU200601-200812

main67934-28020-B1iACR5#,GSR5#..07S..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main67934-28020-B1iACR5#,GSR5#..07S..AERAS..CBU200812-201204

main67934-28020-B1iACR5#,GSR5#..07S..AERAS..CBU200812-201204

main67934-28020-B1iACR5#,GSR5#..07S..AERAS..CBU200812-201204

main67934-28020-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#

main67934-28020-C0iACR5#..07S..AERAS..CBU201204-201605

main67934-28020-C0iACR5#..07S..AERAS..CBU201204-201605

main67934-28020-C0iACR5#..07S..AERAS..CBU201204-201605

main67934-28020-E0iACR5#,GSR5#..07S..G..CBU200601-201204

GREGE,TRIM4#

main67934-28020-E0iACR5#..X..CBU;ACR5#..08S..G;GSR5#..08S..CBU200601-201204

main67934-28020-E0iACR5#..X..CBU;ACR5#..08S..G;GSR5#..08S..CBU200601-201204

main67934-28020-E0iACR5#..X..CBU;ACR5#..08S..G;GSR5#..08S..CBU200601-201204

main67934-28030-A0iACR5#,GSR5#..07S..(AERAS,G)..CBU201204-201605

SHELL,TRIM0#

main67934-28030-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

GRAY,TRIM1#

main67934-28030-B1iACR5#,GSR5#..07S..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main67934-28030-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#,4#

main67934-28030-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#

main67934-28030-C0iACR5#..AESM201605

BLACK,TRIM0#,4#

main67934-28030-E0iACR5#,GSR5#..07S..(AERAS,G)..CBU200601-201204

GREGE,TRIM4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-28100-B0iACR5#,GSR5#..AERAS..CBU200601-200604

GRAY,TRIM1#

sub67918-28101

main67918-28100-E0iGSR5#..CBU;ACR5#..(G,X)..CBU200601-200604

GREGE,TRIM4#

sub67918-28101

main67918-28101-B0iACR5#,GSR5#..AERAS..CBU200605-200612

GRAY,TRIM1#

sub67918-28140

main67918-28101-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200605-200612

GREGE,TRIM4#

sub67918-28140

main67918-28140-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

main67918-28140-B0iACR5#,GSR5#..AERAS..CBU200701-200812

GRAY,TRIM1#

main67918-28140-B1iACR5#,GSR5#..08S..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

main67918-28140-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#,4#

main67918-28140-C0iACR5#..07S..AERAS..CBU201204-201605

BLACK,TRIM2#

main67918-28140-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main67918-28140-E0iACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU200701-201204

GREGE,TRIM4#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-28030iACR5#..CBU200601-201605

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-28010iACR5#..CBU200601-201605

7152

7455

6218928020PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-28020

6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-33010

6777128150WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28150

6792328020CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-28020

9011906869

main90119-06869

9046709225

main90467-09225

9046710188

main90467-10188

42 parts on this diagram · 2 diagrams in section
