FLOOR MAT & SILENCER PAD
55215DPAD, DASH PANEL INSULATOR, NO.3
55215EPAD, DASH PANEL INSULATOR, NO.3
58510CCARPET ASSY, FRONT FLOOR, FRONT
GRAY,TRIM13
MEDIUM GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM45
SHELL,TRIM0#
DK. GREY,TRIM2#
GREGE,TRIM4#
SHELL,TRIM0#
DK. GREY,TRIM2#,4#
DK. GREY,TRIM2#
DK. GREY,TRIM0#,4#
58517CPAD, FRONT FLOOR MAT
58518BMAT, REAR FLOOR, NO.2
58518CMAT, REAR FLOOR, NO.2
58570CCARPET ASSY, REAR FLOOR
SHELL,TRIM0#
GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
DK. GREY,TRIM2#
GREGE,TRIM4#
SHELL,TRIM0#
DK. GREY,TRIM2#,4#
DK. GREY,TRIM2#
DK. GREY,TRIM0#,4#
GREGE,TRIM4#
GREGE,TRIM4#
GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
GREGE,TRIM4#
SHELL,TRIM0#
58595MOULDING, FLOOR CARPET, NO.3
SHELL,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,4#
GREGE,TRIM4#
58595CMOULDING, FLOOR CARPET, NO.1
SHELL,TRIM0#
DK.GRAY,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,4#
GREGE,TRIM4#
58625DPLATE, REAR FLOOR MAT, NO.1
GREGE,TRIM4#
sub58625-28080
SHELL,TRIM0#
BLACK,TRIM2#,4#
BLACK,TRIM0#,4#
BLACK,TRIM2#
58625ECLIP(FOR REAR FLOOR MAT PLATE)
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
64749HCOVER, BACK DOOR STRIKER
SHELL,TRIM0#
GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
GREGE,TRIM4#
67771GRETAINER, BACK DOOR CENTER GARNISH
SHELL,TRIM0#
GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
GREGE,TRIM4#
67772UCAP, BACK DOOR CENTER GARNISH RETAINER
67913ACLIP(FOR SCUFF PLATE)
67914ACLIP(FOR SCUFF PLATE)
67935PLATE, BACK DOOR SCUFF
GREGE,TRIM4#
sub67935-28090
SHELL,TRIM0#
GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#,4#
BLACK,TRIM0#,4#
BLACK,TRIM2#
GREGE,TRIM4#
67939DGARNISH, BACK DOOR, CENTER
GREGE,TRIM4#
sub67939-28040
SHELL,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,4#
7158

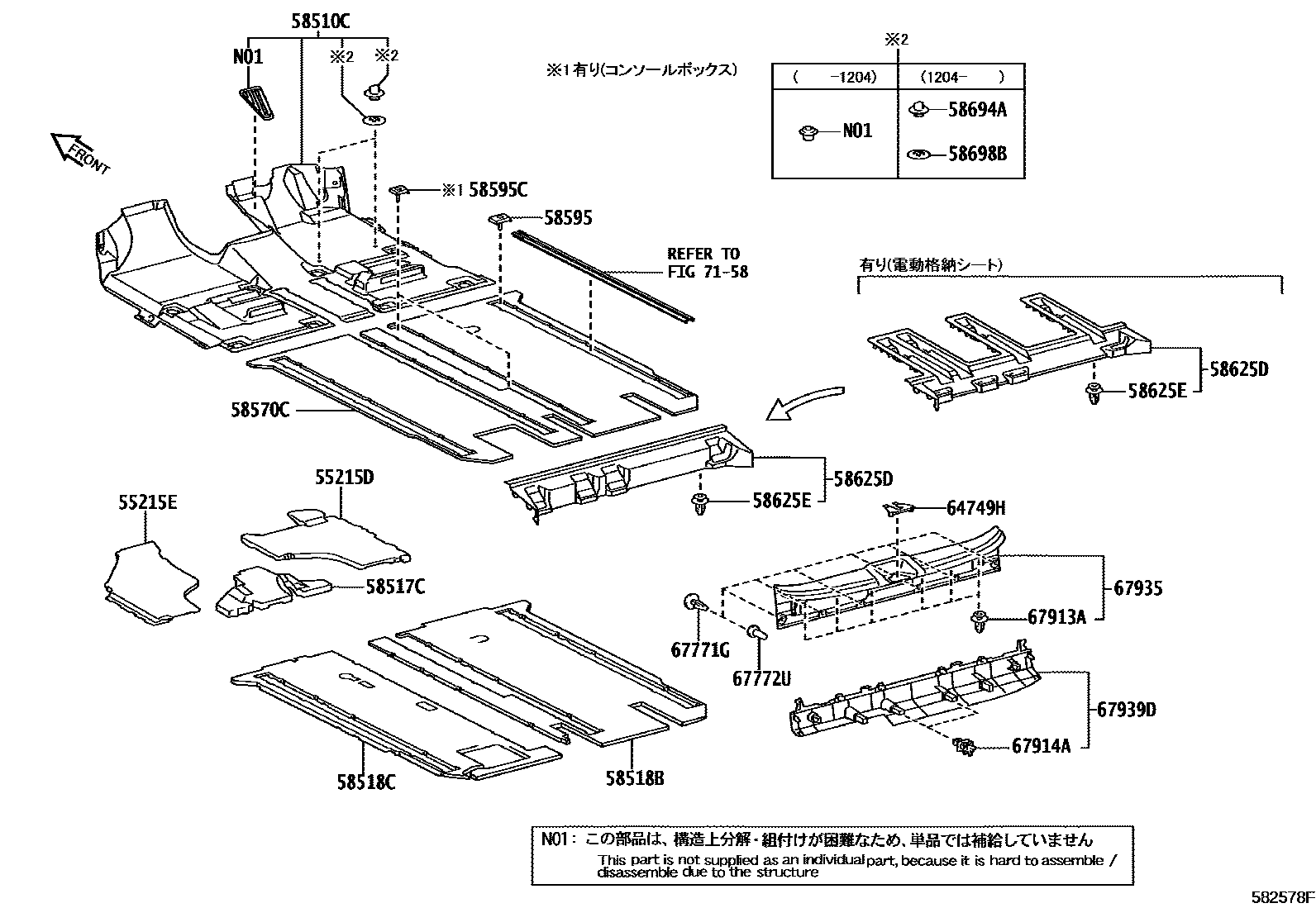

21 parts on this diagram · 2 diagrams in section
