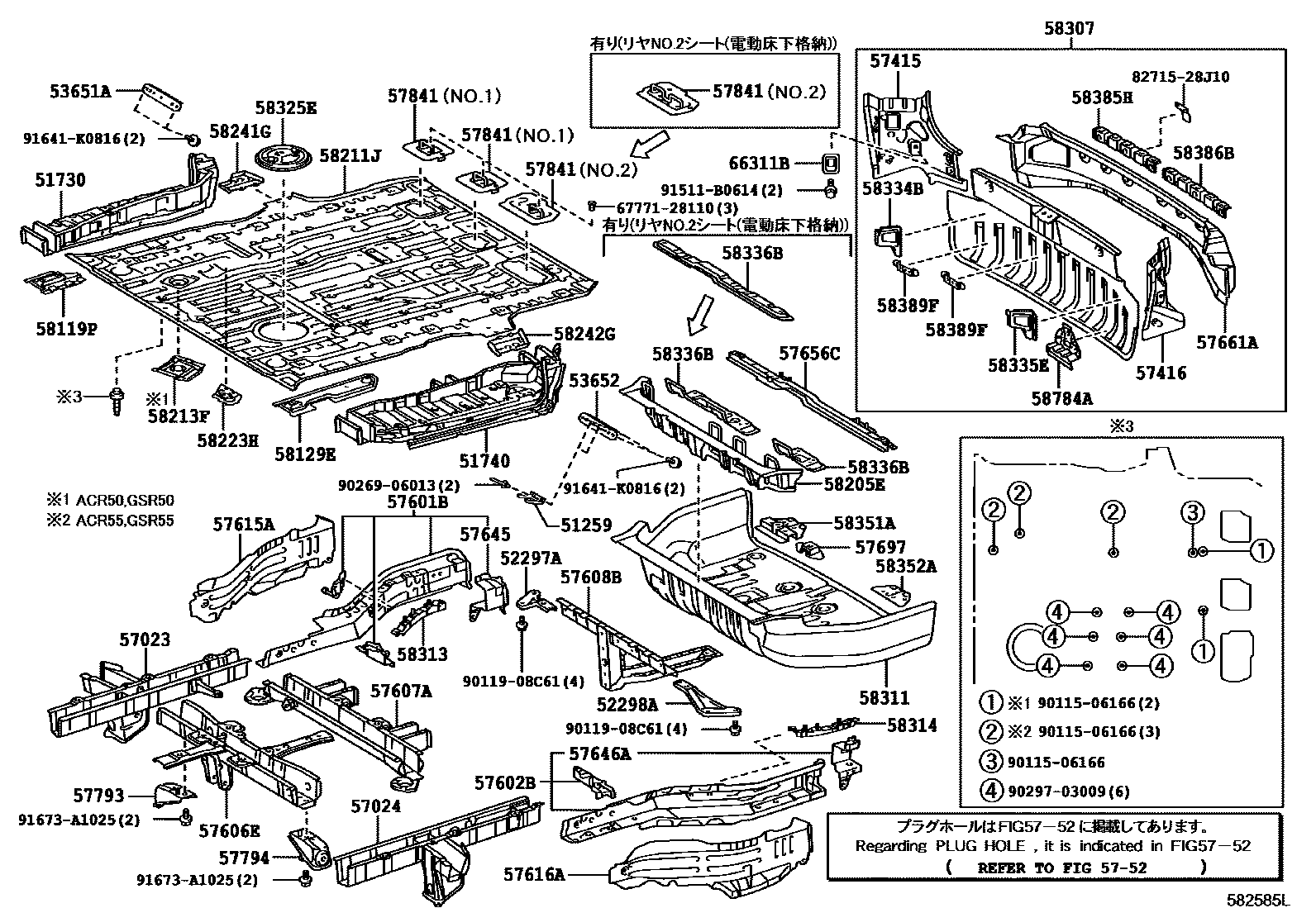

REAR FLOOR PANEL & REAR FLOOR MEMBER

51259PROTECTOR, REAR SUSPENSION MEMBER EDGE

main51259-28010iACR5#,GSR5#..CBU¥380200809-201605

51730STEP ASSY, REAR FLOOR, RH

main51730-28110iACR5#,GSR5#..(AERAS,X)..CBU¥18,600200601-201605

main51730-28120iACR5#,GSR5#..G..CBU¥13,500200601-201204

main51730-28120iACR5#,GSR5#..G..CBU¥13,500200601-201204

main51730-28120iACR5#,GSR5#..(AERAS,G)..CBU¥13,500201204-201605

main51730-28120iACR5#,GSR5#..(AERAS,G)..CBU¥13,500201204-201605

main51730-28120iACR5#,GSR5#..(AERAS,G)..CBU¥13,500201204-201605

main51730-28120iACR5#..CBU¥13,500201605

51740STEP ASSY, REAR FLOOR, LH

main51740-28110iACR5#,GSR5#..(AERAS,X)..CBU¥19,800200601-200812

main51740-28120iGSR5#..AERAS..CBU¥14,700200601-200812

main51740-28120iACR5#,GSR5#..G..CBU¥14,700200601-200812

main51740-28120iACR5#,GSR5#..G..CBU¥14,700200601-200812

main51740-28120iACR5#,GSR5#..CBU¥14,700200812-201605

52297ABRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-28010iACR5#,GSR5#..CBU¥1,740200601-201605

52298ABRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-28010iACR5#,GSR5#..CBU¥1,740200601-201605

53651ABRACE, REAR SUSPENSION, UPPER RH

main53651-28010iACR5#,GSR5#..CBU¥680200601-201605

53652BRACE, REAR SUSPENSION, UPPER LH

main53651-28010iACR5#,GSR5#..CBU¥680200601-201605

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28480iACR5#,GSR5#..07S..CBU¥25,800200601-201605

main57023-28490iACR5#,GSR5#..08S..CBU¥25,800200601-201605

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28490iACR5#,GSR5#..07S..CBU¥25,800200601-201605

main57024-28500iACR5#,GSR5#..08S..CBU¥25,800200601-201605

57415RAIL, FLOOR SIDE, REAR RH

main57415-28120iACR5#,GSR5#..CBU¥5,100200601-201605

57416RAIL, FLOOR SIDE, REAR LH

main57416-28110iACR5#..CBU¥5,300200601-201605

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-28090iACR5#,GSR5#..CBU¥23,600200601-201605

sub57601-28100¥23,600

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-28080iACR5#,GSR5#..CBU¥23,600200601-201605

sub57602-28090¥23,600

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-28800iACR50..07S..CBU¥19,500200601-201605

main57606-28810iACR50,GSR50..08S..CBU¥19,500200601-201605

main57606-28820iACR55,GSR55..07S..CBU¥21,900200601-201605

main57606-28830iACR55,GSR55..08S..CBU¥21,900200601-201605

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28420iACR50..07S..CBU¥17,400200601-201605

main57607-28430iACR50,GSR50..08S..CBU¥15,300200601-201605

main57607-28440iACR55,GSR55..07S..CBU¥17,400200601-201605

main57607-28450iACR55,GSR55..08S..CBU¥15,300200601-201605

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-28230iACR50,GSR50..CBU¥10,900200601-201605

main57608-28240iACR55,GSR55..CBU¥10,900200601-201605

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-28060iACR5#,GSR5#..CBU¥7,400200601-201605

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-28050iACR5#,GSR5#..CBU¥7,400200601-201605

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-28070iACR5#,GSR5#..CBU¥4,220200601-201605

sub57801-28050¥5,100

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-28040iACR5#,GSR5#..CBU¥4,220200601-201605

sub57802-28020¥5,100

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-28060iACR5#,GSR5#..CBU¥4,120200601-201605

57661APANEL, REAR FLOOR REAR CROSS, OUTER

main57661-28030iACR5#,GSR5#..CBU¥13,200200601-201605

57697RETAINER, REAR SEAT CUSHION

main57697-28020iACR5#,GSR5#..CBU¥490200601-201605

57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1

main57793-28030iACR5#,GSR5#..CBU¥2,650200601-201107

sub57793-28031¥2,660

main57793-28031iACR5#,GSR5#..CBU¥2,660201108-201605

57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1

main57794-28030iACR5#,GSR5#..CBU¥2,650200601-201107

sub57794-28031¥2,660

main57794-28031iACR5#,GSR5#..CBU¥2,660201108-201605

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-28050iACR5#..CBU¥2,600200601-201605

main57841-28110iACR5#,GSR5#..CBU¥3,350200601-201605

58119PPLATE, FRONT FLOOR SIDE, RH

main58119-28030iACR5#,GSR5#..CBU¥1,190200601-201605

58129EPLATE, FRONT FLOOR SIDE, LH

main58129-28030iACR5#,GSR5#..CBU¥2,380200601-201605

58205EREINFORCE SUB-ASSY, REAR SEAT HINGE

main58205-28020iACR5#,GSR5#..CBU¥5,900200601-201605

58211JPAN, CENTER FLOOR

main58211-28030iACR50,GSR50..07S..CBU¥48,400200601-200708

sub58211-28031¥40,300

main58211-28031iACR50..07S..CBU¥40,300200709-201605

sub58211-28091¥40,300

sub90467-09077¥70

sub90950-01849¥110

main58211-28050iACR50,GSR50..08S..CBU¥48,400200601-200708

sub58211-28051¥40,300

main58211-28051iACR50,GSR50..08S..CBU¥40,300200709-201605

sub58211-28111¥40,300

sub90467-09077¥70

sub90950-01849¥110

main58211-28070iACR55,GSR55..07S..CBU¥48,400200601-200708

sub58211-28071¥40,300

main58211-28071iACR55,GSR55..07S..CBU¥40,300200709-201605

sub58211-28131¥40,300

sub90467-09077¥70

sub90950-01849¥110

main58211-28080iACR55,GSR55..08S..CBU¥48,400200601-200708

sub58211-28081¥40,300

main58211-28081iACR55,GSR55..08S..CBU¥40,300200709-201605

sub58211-28141¥40,300

sub90467-09077¥70

sub90950-01849¥110

58213FREINFORCEMENT, CENTER FLOOR PANEL

main58213-28010iACR50..CBU¥1,750200601-201605

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-28030iACR5#,GSR5#..CBU¥1,280200601-201605

58241GPANEL, FLOOR SIDE, RH

main58241-28010iACR5#,GSR5#..CBU¥1,410200601-201605

58242GPANEL, FLOOR SIDE, LH

main58242-28010iACR5#,GSR5#..CBU¥1,410200601-201605

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-28110iACR5#,GSR5#..CBU¥20,200200601-201605

58311PAN, REAR FLOOR

main58311-2J870iACR5#,GSR5#..CBU¥27,100200601-201605

58313PANEL, REAR FLOOR SIDE, RH

main58313-28040iACR5#,GSR5#..CBU¥1,240200601-201605

58314PANEL, REAR FLOOR SIDE, LH

main58314-28020iACR5#,GSR5#..CBU¥1,240200601-201605

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-28090iACR5#,GSR5#..CBU¥1,930200601-201605

58334BPLATE, REAR FLOOR CROSSMEMBER, CENTER RH

main58334-28010iACR5#,GSR5#..CBU¥680200601-201605

58335EPLATE, REAR FLOOR CROSSMEMBER, CENTER LH

main58335-28030iACR5#,GSR5#..CBU¥680200601-201605

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-28040iACR5#..CBU¥4,480200601-201605

main58337-28030iACR5#,GSR5#..CBU¥2,690200601-201605

58351ABRACKET, SPARE WHEEL CARRIER

main58351-28060iACR5#,GSR5#..CBU¥1,460200601-201605

58352ABRACKET, REAR FLOOR STAY

main58352-28020iACR5#,GSR5#..CBU¥670200601-201605

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-28030iACR5#,GSR5#..CBU¥1,110200601-201605

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-28020iACR5#,GSR5#..CBU¥1,110200601-201605

58389FBRACKET, LOWER BACK COVER

main58389-28010iACR5#,GSR5#..CBU¥390200601-201605

58784ASUPPORT, TOOL BAG

main58784-28020iACR5#,GSR5#..CBU¥1,090200601-201605

66311BHOOK, ROPE

main66310-30011-A0iACR5#,GSR5#..CBU201204-201605

SHELL,TRIM0#

sub66310-30011¥1,750

main66310-30011-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

sub66310-30011¥1,750

main66310-30011-B3iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

sub66310-30011¥1,750

main66310-30011-C0iACR5#..AEPG201204-201701

BLACK,TRIM2#,4#

sub66310-30011¥1,750

main66310-30011-C0iACR5#..07S..AERAS..CBU201204-201701

BLACK,TRIM2#

sub66310-30011¥1,750

main66310-30011-C0iACR5#..(AEPR,AERAS)..CBU201605-201701

BLACK,TRIM0#,4#

sub66310-30011¥1,750

main66310-30011-C1iACR5#..(AEPR,AERAS)..CBU201701

BLACK,TRIM0#,4#

sub66310-30011¥1,750

main66310-30011-C1iACR5#..(AEPR,AERAS)..CBU201701

BLACK,TRIM2#,4#

sub66310-30011¥1,750

main66310-30011-C1iACR5#..AESM201701

BLACK,TRIM2#

sub66310-30011¥1,750

main66310-30011-E0iGSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU200601-201204

GREGE,TRIM4#

sub66310-30011¥1,750

6777128110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28110¥130

8271528J10BRACKET,WIRING HARNESS CLAMP

main82715-28J10¥240

9011506166

main90115-06166¥90

9011908C61

main90119-08C61¥80

9026906013

main90269-06013¥60

9029703009

main90297-03009¥30

91511B0614

main91511-B0614¥90

91641K0816

main91641-K0816¥130

91673A1025

main91673-A1025¥140

59 parts on this diagram · 1 diagram in section
