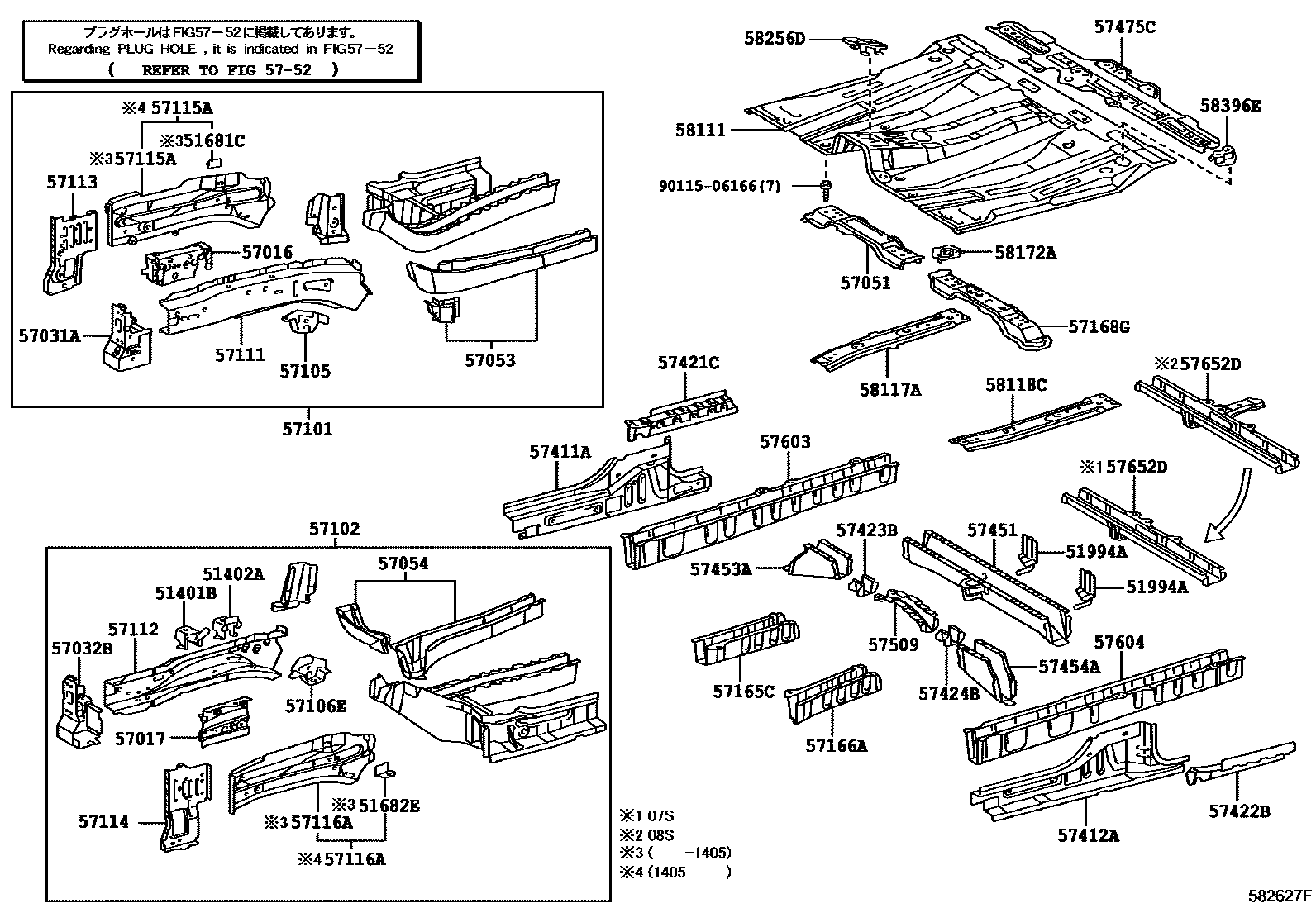

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51994AHANGER, EXHAUST PIPE, SUPPORT, NO.4
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57165CGUSSET, FLOOR MEMBER, RH
57166AGUSSET, FLOOR MEMBER, LH
57168GMEMBER, FRONT FLOOR, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57421CPLATE, FLOOR SIDE RAIL, RH
57422BPLATE, FLOOR SIDE RAIL, LH
57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH
57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH
57451MEMBER, FRONT FLOOR CROSS
57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH
57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH
57475CPLATE, FRONT FLOOR CROSSMEMBER
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
5752
57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57652DMEMBER, REAR FLOOR CROSS, NO.1
58111PAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58172APLATE, PARKING BRAKE MOUNTING
58256DBRACKET, FRONT FLOOR HARNESS
58396EBRACKET, WIRE HARNESS CLAMP
9011506166
47 parts on this diagram · 2 diagrams in section
