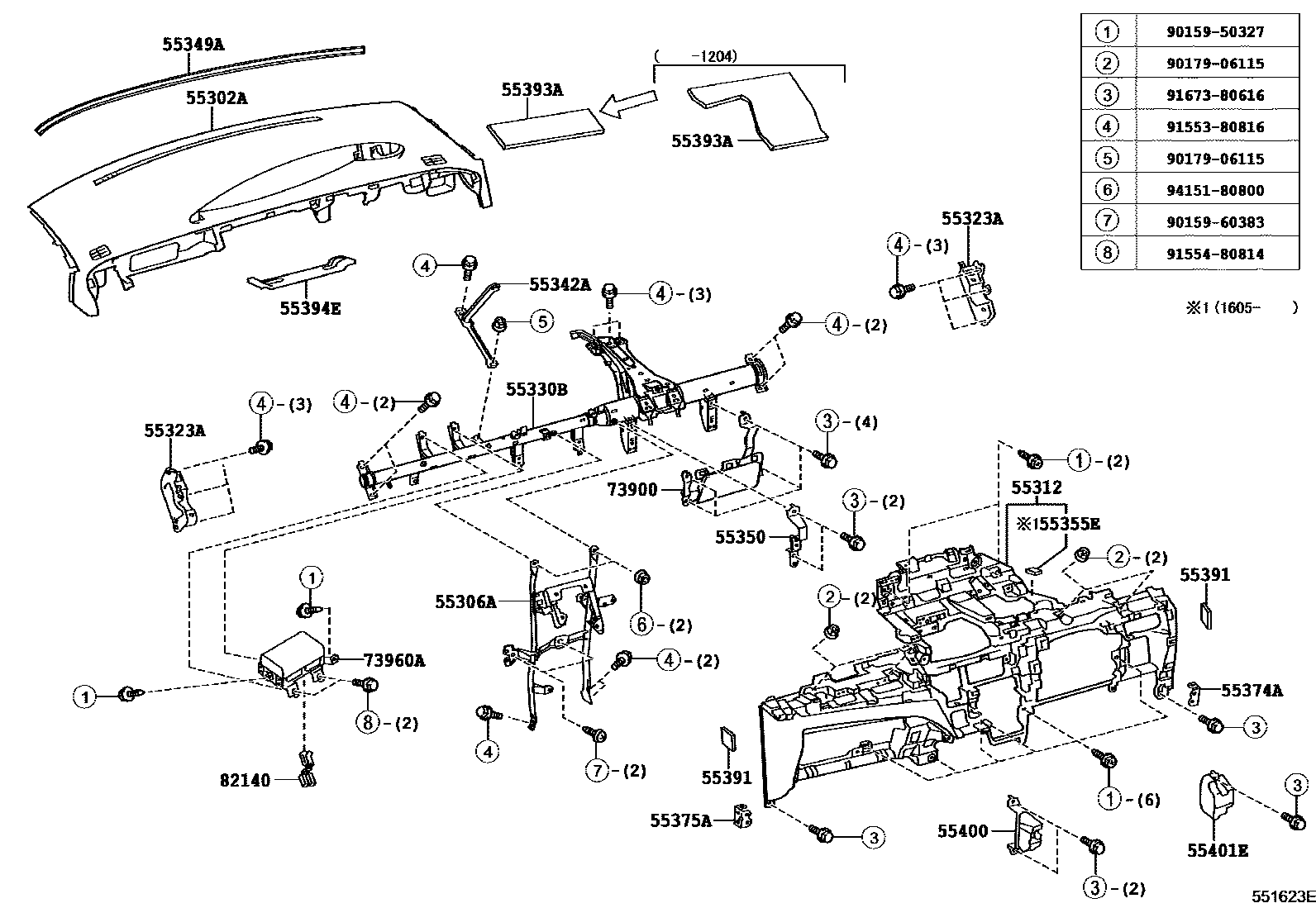

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1���������� 0005 1��������� 0006 1����� 0007 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-28060-B0iACR5#,GSR5#..AERAS..CBU200601-200612

DK.GRAY,TRIM1#

sub55302-28061¥57,100

main55302-28060-E0iACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..07S..AERAS..CBU200601-200612

ASH BROWN,TRIM4#

sub55302-28061¥57,100

main55302-28061-B0iACR5#,GSR5#..AERAS..CBU200701-200812

DK.GRAY,TRIM1#

sub55302-28190¥57,100

main55302-28061-C0iACR5#,GSR5#..AERAS..CBU200812-201204

BLACK,TRIM1#

sub55302-28190¥57,100

main55302-28061-E0iACR5#..X..CBU;ACR5#,GSR5#..07S..AERAS..CBU200701-201204

ASH BROWN,TRIM4#

sub55302-28190¥57,100

main55302-28090-E0iACR5#,GSR5#..G..CBU200601-200612

sub55302-28091¥57,100

main55302-28090-E0iGSR5#..AERAS..CBU200601-200612

ASH BROWN,TRIM4#

sub55302-28091¥57,100

main55302-28091-E0iGSR5#..AERAS..CBU200701-200812

main55302-28091-E0iACR5#,GSR5#..G..CBU200701-201204

ASH BROWN,TRIM4#

main55302-28190-C0iACR5#..(AEPR,AERAS)..CBU201204-201605

BLACK,TRIM2#

sub55302-28190¥57,100

main55302-28190-E0iACR5#,GSR5#..(AERAS,X)..CBU201204-201605

DK. BROWN,TRIM0#

sub55302-28190¥57,100

main55302-28210-C0iACR5#..AESM201605

BLACK,TRIM0#,4#

main55302-28210-C0iACR5#..AESM201605

BLACK,TRIM2#,4#

main55302-28210-E0iACR5#,GSR5#..G201204-201605

DK. BROWN,TRIM0#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28190iACR5#,GSR5#..CBU¥5,900200601-201605

55312PANEL, INSTRUMENT, LOWER

main55312-28060-A0iACR5#,GSR5#..CBU201204-201404

SHELL,TRIM0#

sub55312-28061¥30,000

main55312-28060-B0iACR5#,GSR5#..AERAS..CBU200601-200812

GRAY,TRIM1#

sub55312-28061¥30,000

main55312-28060-B1iACR5#,GSR5#..AERAS..CBU200812-201204

MD.GRAY,TRIM1#

sub55312-28061¥30,000

main55312-28060-C0iACR5#,GSR5#..AERAS..CBU201204-201404

BLACK,TRIM2#

sub55312-28061¥30,000

main55312-28060-E0iACR5#,GSR5#..CBU200601-201204

GREGE,TRIM4#

sub55312-28061¥30,000

main55312-28061-A0iACR5#,GSR5#..CBU201405-201605

SHELL,TRIM0#

main55312-28061-C0iACR5#..07S..AERAS..CBU201405-201605

main55312-28061-C0iACR5#..07S..AERAS..CBU201405-201605

main55312-28061-C0iACR5#..07S..AERAS..CBU201405-201605

main55312-28061-C0iACR5#..07S..AERAS..CBU201405-201605

BLACK,TRIM2#

main55312-28061-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM0#,4#

main55312-28061-C0iACR5#..(AEPR,AERAS)..CBU201605

BLACK,TRIM2#,4#

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55304-28020iACR5#..CBU¥2,210200601-201605

main55304-28030iACR5#,GSR5#..CBU¥2,210200601-201605

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-28190iACR5#,GSR5#..CBU¥23,000200601-201204

sub55330-28220¥19,200

main55330-28220iACR5#,GSR5#..CBU¥19,200201204-201605

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-28060iACR5#,GSR5#..CBU¥1,030200601-201605

55349ACUSHION, INSTRUMENT PANEL

main55349-28210iACR5#,GSR5#..CBU¥1,820200601-200812

main55349-28250iACR5#..CBU¥1,460200812-201605

55350BRACE ASSY, INSTRUMENT PANEL

main55350-28010¥1,010

55355ECUSHION, INSTRUMENT PANEL

main55448-28050iACR5#..CBU¥120201605-201910

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-28050iACR5#,GSR5#..CBU¥510200601-201605

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-28050iACR5#,GSR5#..CBU¥510200601-201605

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-28040iACR5#,GSR5#..CBU¥430200601-200908

55393ACUSHION, INSTRUMENT PANEL, LOWER NO.3

main55393-28060iACR5#,GSR5#..CBU¥1,470200601-201204

main55393-28080iACR5#..CBU¥1,690201204-201605

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-28040iACR5#,GSR5#..CBU¥750200601-201605

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-28010iACR5#,GSR5#..CBU¥6,400200812-201204

main55400-28010iACR5#,GSR5#..CBU¥6,400201204-201605

main55400-28010iACR5#,GSR5#..CBU¥6,400201204-201605

main55400-28010iACR5#..CBU¥6,400201605-201910

main55400-28010iACR5#..CBU¥6,400201605-201910

main55400-28010iACR5#,GSR5#..CBU¥6,400200601-200812

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-28080iACR5#,GSR5#..CBU¥6,800200601-200812

main55401-28080iACR5#,GSR5#..CBU¥6,800200812-201204

main55401-28080iACR5#,GSR5#..CBU¥6,800201204-201605

main55401-28080iACR5#,GSR5#..CBU¥6,800201204-201605

main55401-28080iACR5#..CBU¥6,800201605-201910

main55401-28080iACR5#..CBU¥6,800201605-201910

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-28010¥37,400

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-28070iACR5#,GSR5#..CBU¥99,800200601-201605

82140WIRE ASSY, INSTRUMENT PANEL

main82140-28010iACR5#,GSR5#..CBU¥720200601-201605

9015950327

main90159-50327¥70

9015960383

main90159-60383¥70

9017906115

main90179-06115¥120

9155380816

main91553-80816¥80

9155480814

main91554-80814¥140

9167380616

main91673-80616¥60

9415180800

main94151-80800¥80

26 parts on this diagram · 7 diagrams in section
