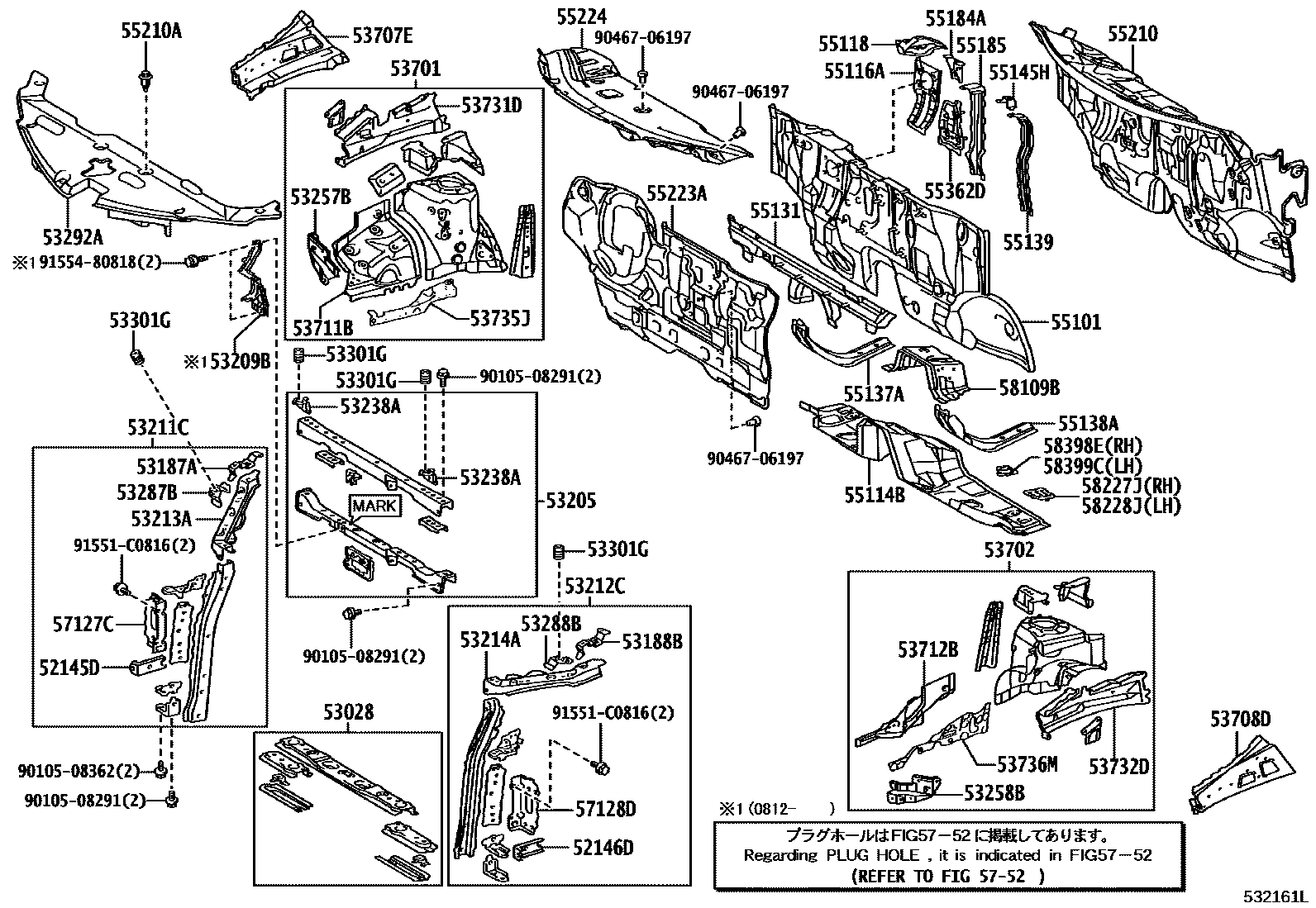

FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53238ABRACKET, HOOD BUMPER MOUNTING
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53735JPATCH, FRONT FENDER APRON, NO.5
53736MPATCH, FRONT FENDER APRON, NO.6
55101PANEL SUB-ASSY, DASH
55114BPANEL, DASH, LOWER
55116APLATE, BRAKE PEDAL SUPPORT MOUNTING
55118EXTENSION, DASH PANEL, RH
55131REINFORCEMENT, DASH PANEL
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55139REINFORCEMENT, DASH TO FRAME BRACE
55145HBASE, INSTRUMENT PANEL REINFORCEMENT MOUNTING
55184ABRACKET, DASH PANEL
55185BRACE, DASH PANEL TO COWL
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55224INSULATOR, DASH PANEL, OUTER LH
55362DBRACKET, PARKING BRAKE MOUNTING
57127CREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57128DREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
5752
58109BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58227JPLATE, FLOOR PANEL SIDE, RH
58228JPLATE, FLOOR PANEL SIDE, LH
58398ECOVER, FLOOR UNDER, NO.1
58399CCOVER, FLOOR UNDER, NO.2
9010508291
main90105-08291
9010508362
main90105-08362
9046706197
main90467-06197
91551C0816
main91551-C0816
9155480818
main91554-80818
57 parts on this diagram · 1 diagram in section
