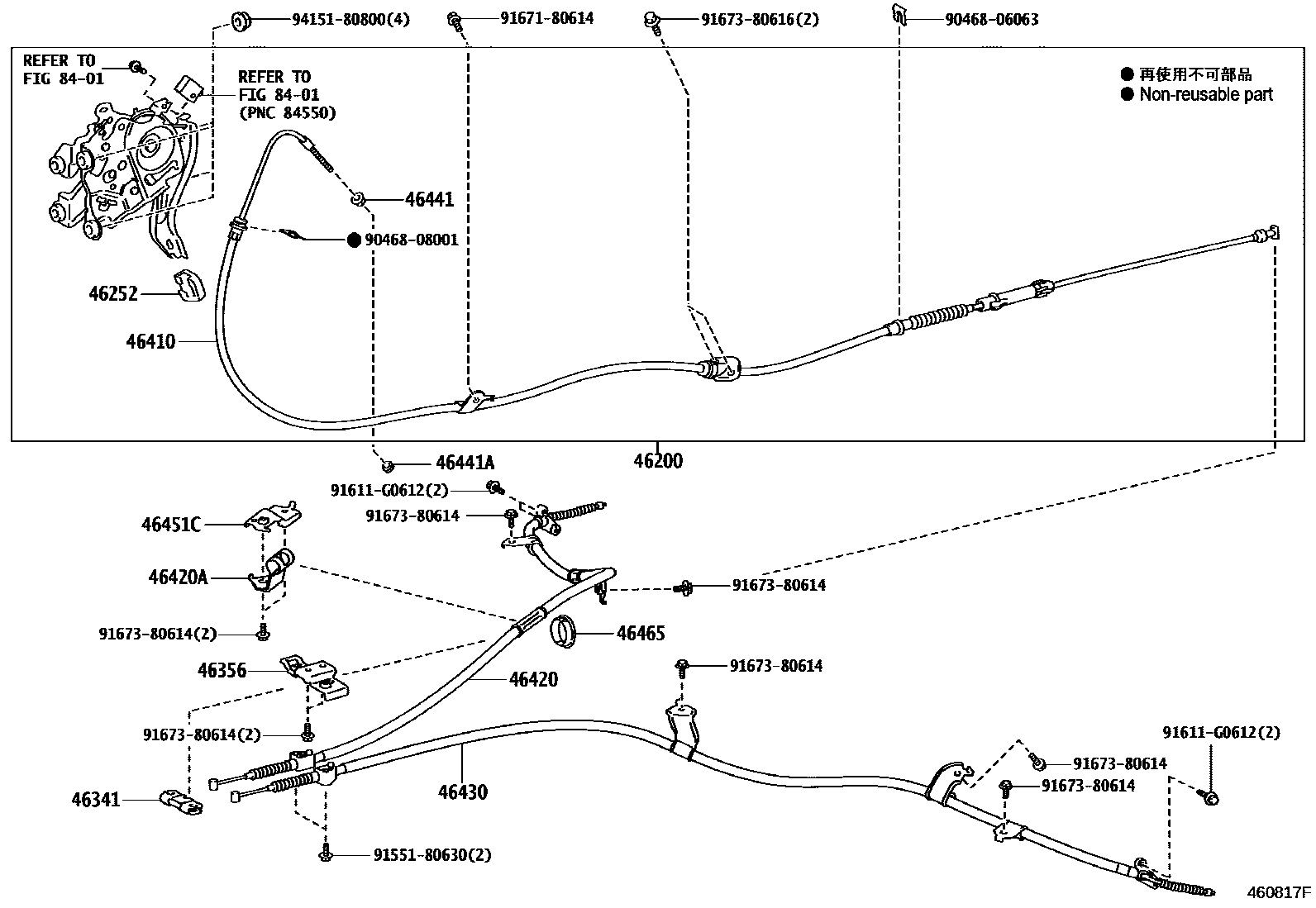

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-28050iACR5#,GSR5#..CBU200601-201401

46252PAD, PARKING PEDAL

main46252-52020iACR5#,GSR5#..CBU200601-201605

46341EQUALIZER, PARKING BRAKE

main46341-20070iACR5#,GSR5#..CBU200601-201605

46356BRACKET, EQUALIZER SUPPORT

main46356-28070iACR5#,GSR5#..CBU200601-201605

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28260iACR5#,GSR5#..CBU200601-201310

sub46410-28261

main46410-28261iACR5#,GSR5#..CBU201311-201605

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28470iACR5#,GSR5#..CBU200601-201205

sub46420-28471

main46420-28471iACR5#,GSR5#..CBU201206-201605

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B71iACR5#,GSR5#..CBU200601-201605

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28410iACR5#,GSR5#..CBU200601-201205

sub46430-28411

main46430-28411iACR5#,GSR5#..CBU201206-201605

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACR5#,GSR5#..CBU200601-201401

main90177-06003iACR5#,GSR5#..CBU201403-201605

main90182-06008iACR5#,GSR5#..CBU201401-201605

46441ANUT, WIRE ADJUSTING, NO.2

main94151-80600iACR5#,GSR5#..CBU200601-201401

main94151-80600iACR5#,GSR5#..CBU201401-201605

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-28160iACR5#,GSR5#..CBU200601-201605

46465GUIDE, PARKING BRAKE CABLE, RH

main46465-28020iACR5#,GSR5#..CBU200601-201605

8401

9046806063

main90468-06063

9046808001

main90468-08001

9155180630

main91551-80630

91611G0612

main91611-G0612

9167180614

main91671-80614

9167380614

main91673-80614

9167380616

main91673-80616

9415180800

main94151-80800

21 parts on this diagram · 3 diagrams in section
