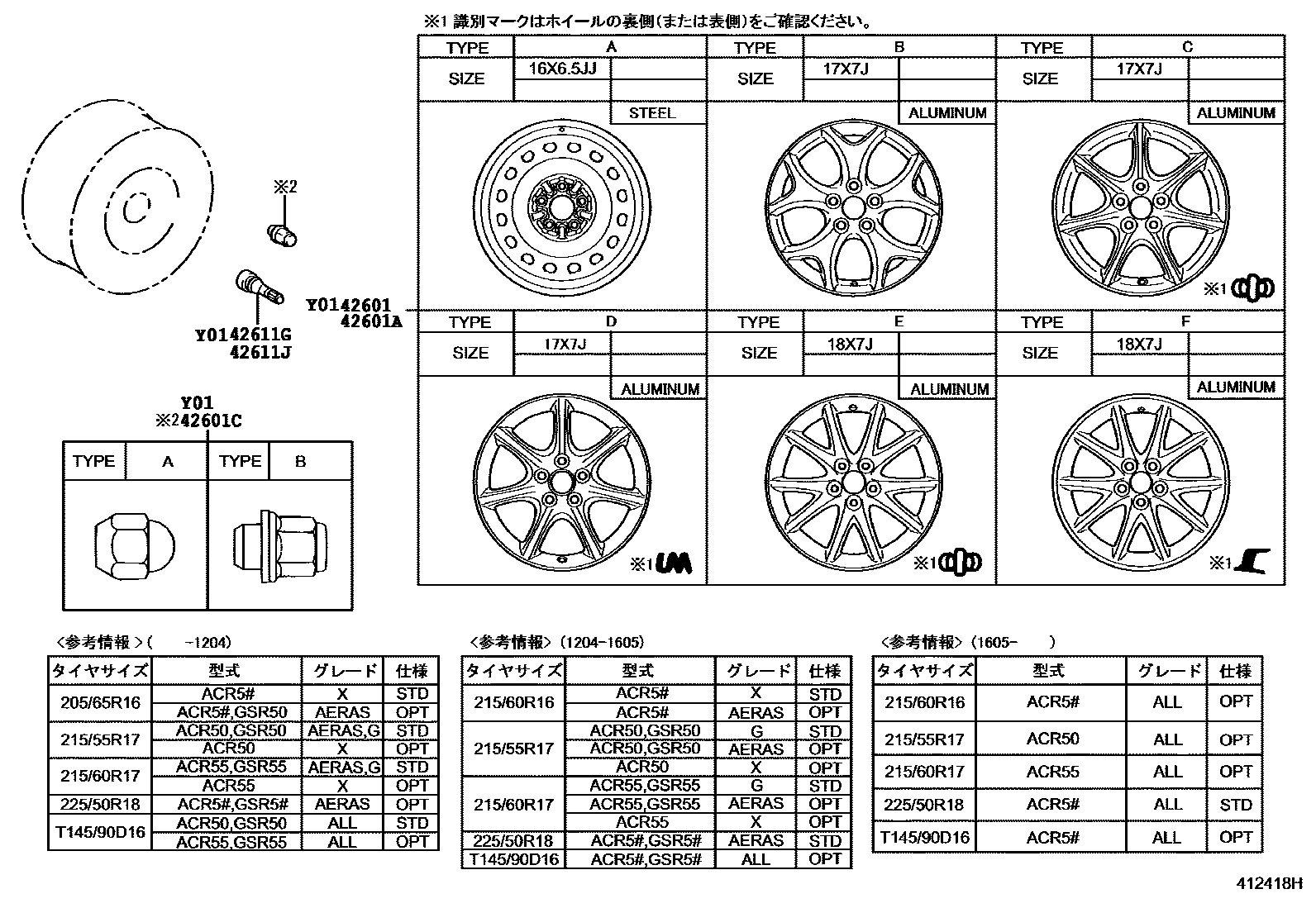

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1��������� 0003 1������������� & ��������� 0004 1���������

42601WHEEL, DISC

main42611-28640iACR5#,GSR5#..G..CBU200601-200812

main42611-28640iACR5#,GSR5#..G..CBU200601-200812

main42611-28640iACR50..X..CBU200601-200812

main42611-28650iACR5#,GSR5#..AERAS..CBU200601-200812

main42611-28660iACR5#,GSR5#..AERAS..CBU200601-200812

sub42611-28650

main42611-28760iACR50..X..CBU200812-201204

main42611-28760iACR55..X..CBU200812-201204

main42611-28760iACR5#,GSR5#..G..CBU200812-201204

main42611-28770iACR5#,GSR5#..G201204-201306

sub42611-28771

main42611-28770iACR55..X..CBU201204-201306

sub42611-28771

main42611-28770iACR55..X..CBU200812-201306

sub42611-28771

main42611-28771iACR5#,GSR5#..G201307-201512

sub42611-28772

main42611-28771iACR5#,GSR5#..G201307-201512

sub42611-28772

main42611-28771iACR5#,GSR5#..G201307-201512

sub42611-28772

main42611-28772iACR50..X..CBU201601-201605

main42611-28772iACR55..X..CBU201601-201605

main42611-28772iACR55..X..CBU201601-201605

main42611-28780iACR5#,GSR5#..AERAS..CBU200812-201204

sub42611-28770

main42611-28840iACR5#,GSR5#..AERAS..CBU201204-201605

main42611-28A40iACR5#..CBU201605

main42611-33491iACR5#..AERAS..CBU201204-201605

main42611-33491iACR5#..AERAS..CBU201204-201605

main42611-58020iACR5#,GSR50..AERAS..CBU200601-201204

sub42611-58021

main42611-58020iACR5#..X..CBU200601-200812

sub42611-58021

42601AWHEEL, DISC (FOR SPARE)

main42611-28690iACR50,GSR50..CBU200601-200912

sub42611-28691

main42611-28690iACR50,GSR50..CBU200601-200812

sub42611-28691

42601CNUT, HUB (FOR AXLE)

main90942-01021iACR5#,GSR50..AERAS..CBU200601-201605

main90942-01021iACR5#..AERAS..CBU201204-201605

main90942-01021iACR5#..X..CBU200601-200812

main90942-01033iACR50..X..CBU200601-201605

main90942-01033iACR5#,GSR5#..(AERAS,G)..CBU200601-201204

main90942-01033iACR5#,GSR5#..(AERAS,G)..CBU200601-201204

main90942-01033iACR5#,GSR5#..(AERAS,G)..CBU201204-201605

main90942-01033iACR5#,GSR5#..(AERAS,G)..CBU201204-201605

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iACR5#,GSR50..AERAS..CBU200601-200812

main90942-05009iACR5#,GSR5#..CBU200812-201605

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iACR55,GSR55..CBU200601-200812

main90942-05009iACR55..X..CBU;ACR50,GSR50..CBU200601-200812

main90942-05009iACR50,GSR50..CBU200812-200912

5 parts on this diagram · 4 diagrams in section
