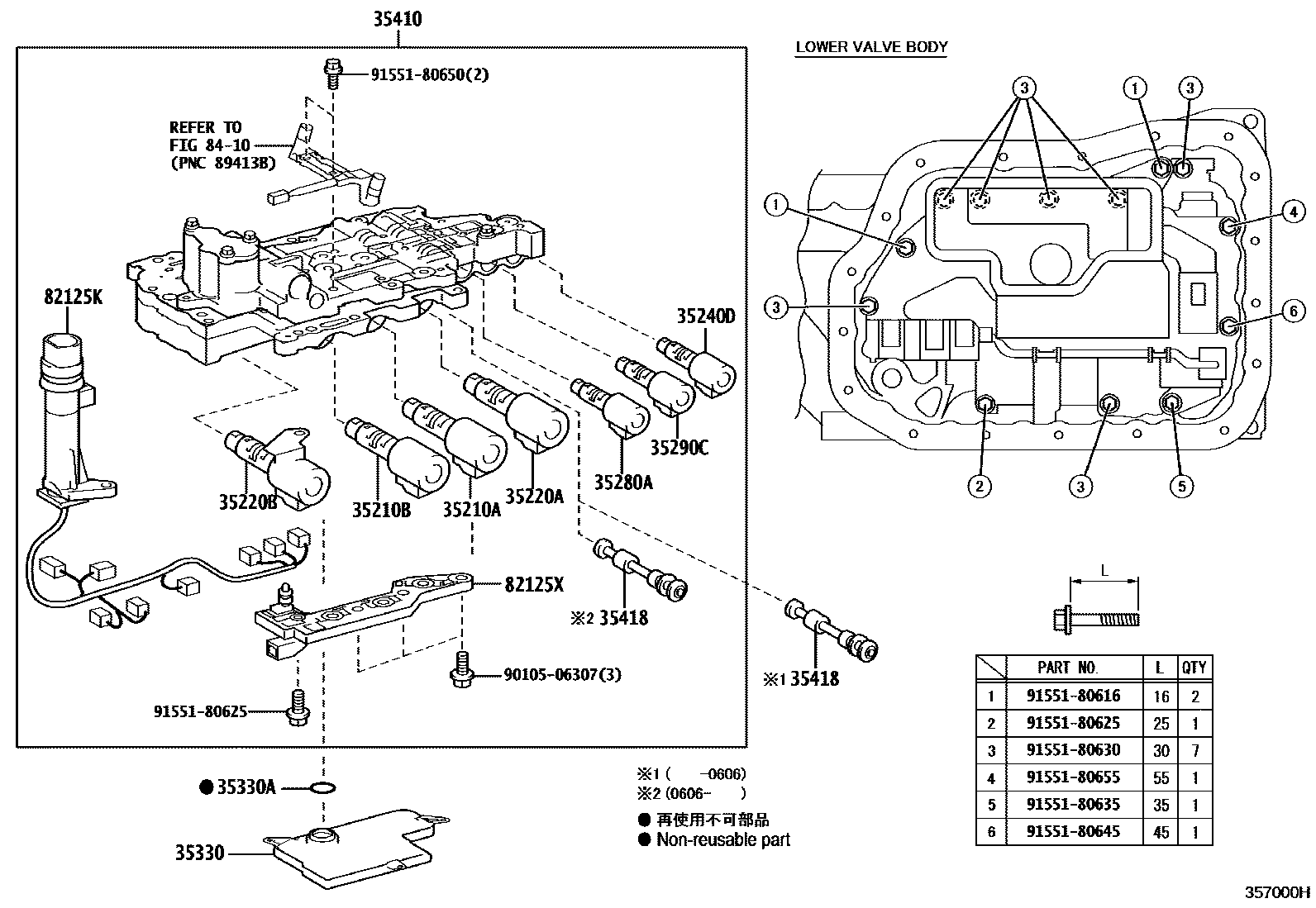

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E,U660F 0002 1U660E,U660F

35210AVALVE, SOLENOID(SL1)

main35210-33030iGSR5#..CBU200601-201605

35210BVALVE, SOLENOID(SL3)

main35210-33030iGSR5#..CBU200601-201605

35220AVALVE, SOLENOID(SL2)

main35220-33040iGSR5#..CBU200601-201605

35220BVALVE, SOLENOID(SL4)

main35220-33040iGSR5#..CBU200601-201605

35240DVALVE, SOLENOID(SL)

main35240-33040iGSR5#..CBU200601-200812

sub35240-73010

main35240-73010iGSR5#..CBU200812-201605

35280AVALVE, SOLENOID(SLU)

main35280-52040iGSR5#..CBU200601-201605

35290CVALVE, SOLENOID(SLT)

main35290-33040iGSR5#..CBU200601-201605

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGSR5#..CBU200601-201308

sub35330-48020

main35330-48020iGSR5#201308-201605

35330ARING, O (FOR OIL STRAINER)

main90301-27010iGSR5#..CBU200601-201108

main90301-27015iGSR5#..CBU201108-201605

35410BODY ASSY, TRANSMISSION VALVE

main35410-33170iGSR5#..CBU200601-200606

sub35410-33171

main35410-33171iGSR5#..CBU200606-201605

35418VALVE, MANUAL

main35418-33020iGSR5#..CBU200601-200812

sub35418-73010

main35418-73010iGSR5#..CBU200812-201605

82125KWIRE, TRANSMISSION

main82125-33100iGSR5#..CBU200601-201605

82125XWIRE, TRANSMISSION, WITH TEMPERATURE SENSOR

main82125-33090iGSR5#..CBU200601-201605

sub82125-33091

8410

9010506307

main90105-06307

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180645

main91551-80645

9155180650

main91551-80650

9155180655

main91551-80655

22 parts on this diagram · 2 diagrams in section
