TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

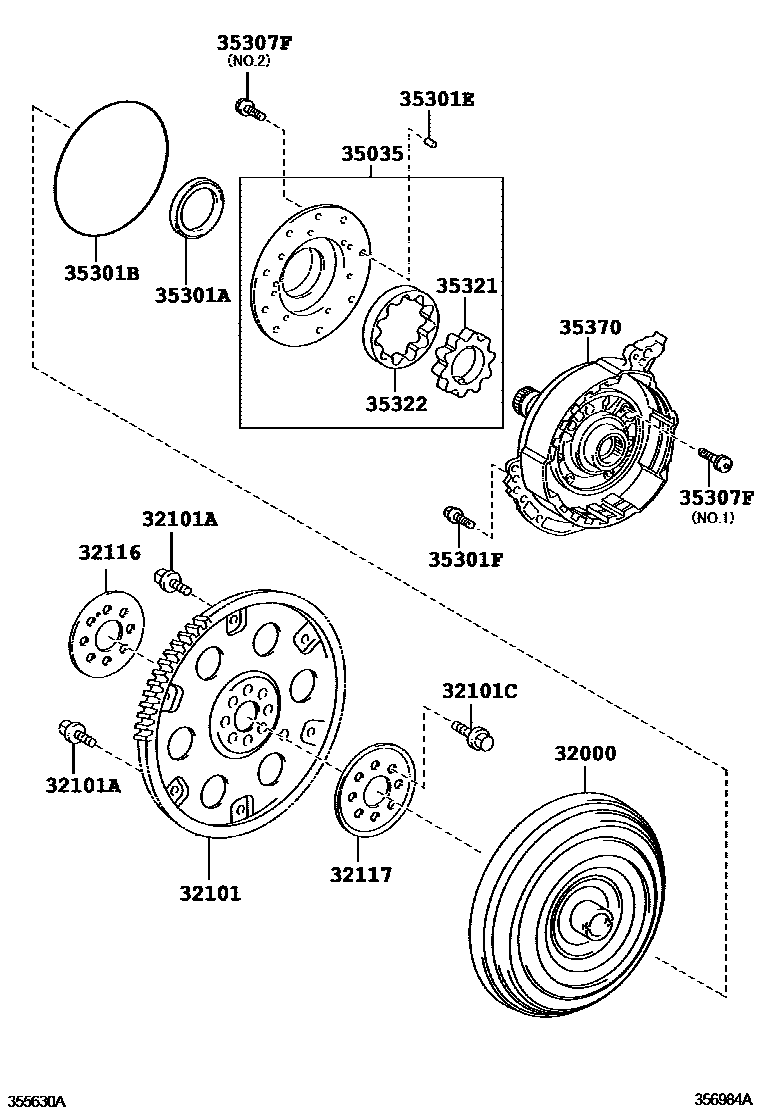

Parts diagram

32000CONVERTER ASSY, TORQUE

main32000-33131i200601-200812

main32000-33132i200812-201605

main32000-33133i200905-201103

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-48010i200601-201605

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001i200601-201605

main90119-09025i200601-201605

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048i200601-201605

main90105-10048i200812-201003

main90105-A0022i200812-201003

32116SPACER, DRIVE PLATE, FRONT

main32116-32020i200601-201605

32117SPACER, DRIVE PLATE, REAR

main32117-32020i200601-201605

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-33030i200601-201108

main35035-33031i201108-201605

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43010i200601-201605

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-33010i201105-201605

main90301-99158i200601-201105

35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)

main90250-08040i200601-201605

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main91551-80835i200601-201605

35307FBOLT (FOR STATOR SHAFT)

main90148-60064i200601-201605

main90148-60065i200601-201605

35321GEAR, FRONT OIL PUMP DRIVE

main35321-33110i200601-201010

main35321-33111i201010-201605

main35321-33120i200601-201010

main35321-33121i201010-201605

main35321-33130i200601-201010

main35321-33131i201010-201605

main35321-33140i200601-201010

main35321-33141i201010-201605

main35321-33150i200601-201010

main35321-33151i201010-201605

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-33110i200601-201605

main35322-33120i200601-201605

main35322-33130i200601-201605

main35322-33140i200601-201605

main35322-33150i200601-201605

35370SHAFT ASSY, STATOR

main35370-33031i200601-201605

15 parts on this diagram · 1 diagram in section
