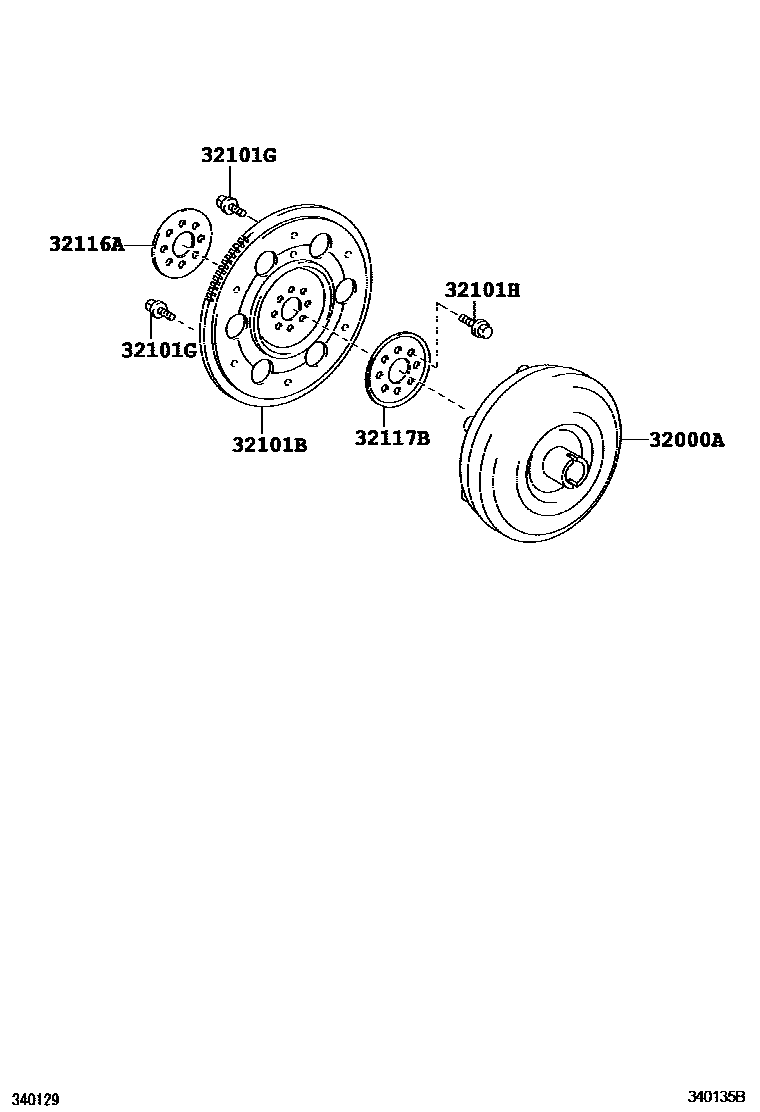

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-42050iACR5#..CBU200601-201605

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06040iACR5#..CBU200808-201605

main32101-28040iACR5#..CBU200601-201605

main32101-28040iACR5#..CBU201605

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iACR5#..CBU200601-201605

main90119-09025iACR5#..CBU200601-201605

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184iACR5#..CBU200601-201605

sub90105-12384

main90105-12184iACR5#..CBU200812-201204

sub90105-12384

main90105-A0060iACR5#..CBU200812-201005

sub90105-12184

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iACR5#..CBU200601-201605

32117BSPACER, DRIVE PLATE, REAR

main32117-06010iACR5#..CBU201112-201605

main32117-20060iACR5#..CBU200601-201112

main32117-20060iACR5#..CBU201112-201605

6 parts on this diagram · 1 diagram in section
