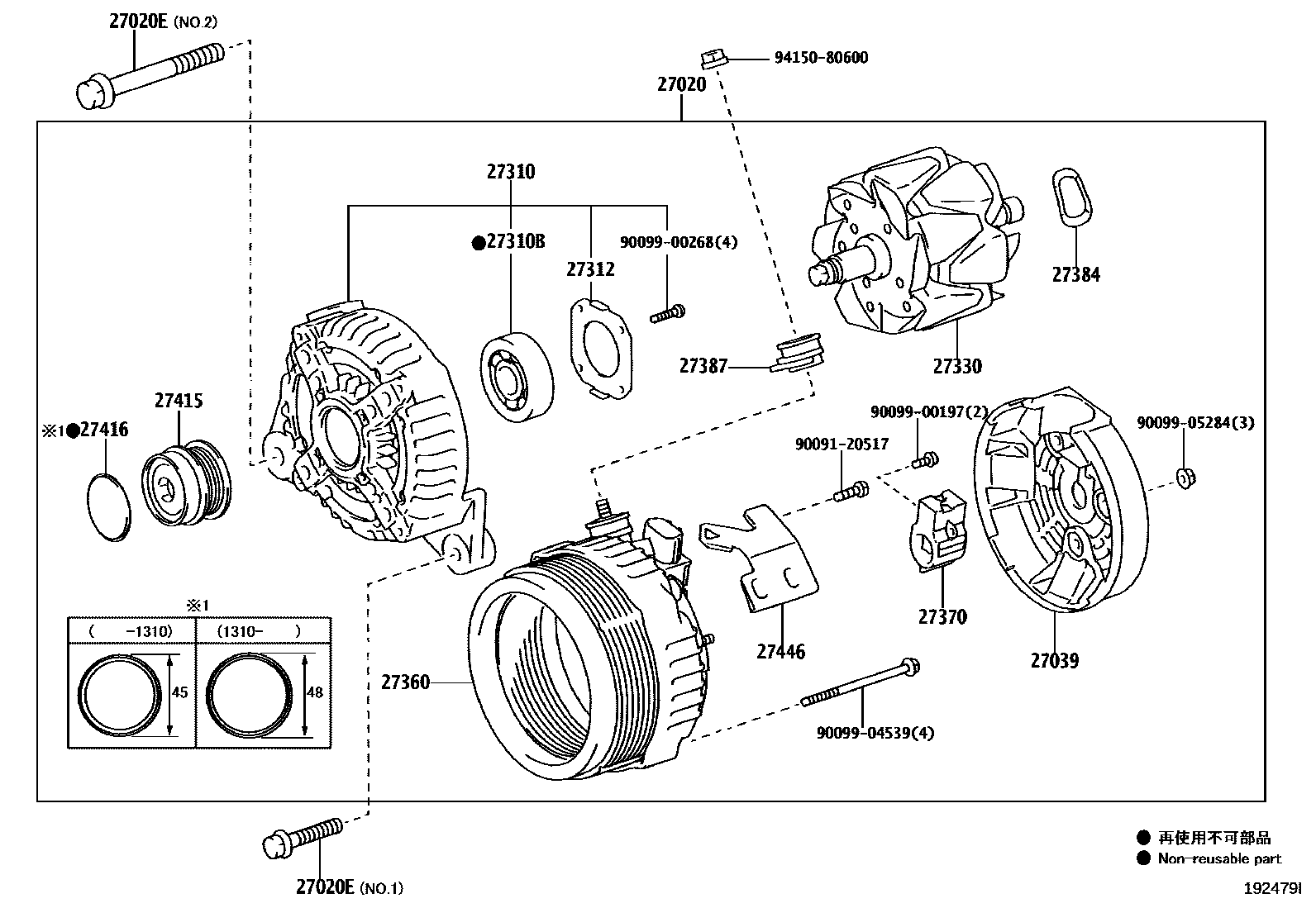

ALTERNATOR

0001 112V 150A 0002 112V 150A

27020ALTERNATOR ASSY

main27060-28340i2AZFE..ACR5#..CBU200601-200812

sub27060-28341

main27060-28341i2AZFE..ACR5#..CBU200812-201605

main27060-31100i2GRFE..GSR5#..CBU200601-200706

sub27060-31101

main27060-31101i2GRFE..GSR5#..CBU200707-200907

sub27060-31102

main27060-31102i2GRFE..GSR5#200908-201605

27020EBOLT(FOR ALTERNATOR)

main91512-81085i2AZFE..ACR5#..CBU200601-201605

main91551-80840i2AZFE..ACR5#..CBU200601-201605

main91552-81040i2GRFE..GSR5#..CBU200601-201605

main91552-81070i2GRFE..GSR5#200601-201605

27039COVER, ALTERNATOR REAR END

main27039-27060i2AZFE,2GRFE..ACR5#,GSR5#..CBU200601-200907

main27039-31390i2GRFE..GSR5#..CBU200906-201605

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-28120i2AZFE..ACR5#..CBU200601-201605

main27310-31290i2GRFE..GSR5#200601-201605

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i2AZFE,2GRFE..ACR5#,GSR5#..CBU200601-200611

sub90099-10223

main90099-10223i2AZFE,2GRFE..ACR5#,GSR5#..CBU200612-201605

27312PLATE, RETAINER

main27312-72100i2AZFE,2GRFE..ACR5#,GSR5#..CBU200601-201605

27330ROTOR ASSY, ALTERNATOR

main27330-58460i2AZFE,2GRFE..ACR5#,GSR5#..CBU200601-201605

27360COIL ASSY, ALTERNATOR

main27360-28260i2AZFE..ACR5#..CBU200601-201605

main27360-31300i2GRFE..GSR5#..CBU200601-201605

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2GRFE..GSR5#200601-201605

main27370-58460i2AZFE..ACR5#..CBU200601-201605

27384WASHER

main27384-50030i2AZFE,2GRFE..ACR5#,GSR5#..CBU200601-201605

27387INSULATOR, TERMINAL

main27387-20130i2AZFE,2GRFE..ACR5#,GSR5#..CBU200601-201605

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W010i2GRFE..GSR5#..CBU200601-200907

sub27415-0W130

sub27416-0W050

main27415-0W040i2AZFE..ACR5#..CBU200601-200901

sub27415-0W041

main27415-0W041i2AZFE..ACR5#..CBU200902-201310

sub27415-0W042

sub27416-0W050

main27415-0W042i2AZFE..ACR5#..CBU201310-201605

main27415-0W130i2GRFE..GSR5#200907-201306

sub27415-0W131

main27415-0W131i2GRFE..GSR5#201307-201605

27416CAP, ALTERNATOR PULLEY

main27416-0W010i2GRFE..GSR5#..CBU200601-200907

main27416-0W020i2AZFE..ACR5#..CBU200601-201310

main27416-0W050i2GRFE..GSR5#200907-201605

27446CLIP, ALTERNATOR CORD

main27446-28120i2AZFE..ACR5#..CBU200601-201605

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415080600

main94150-80600
