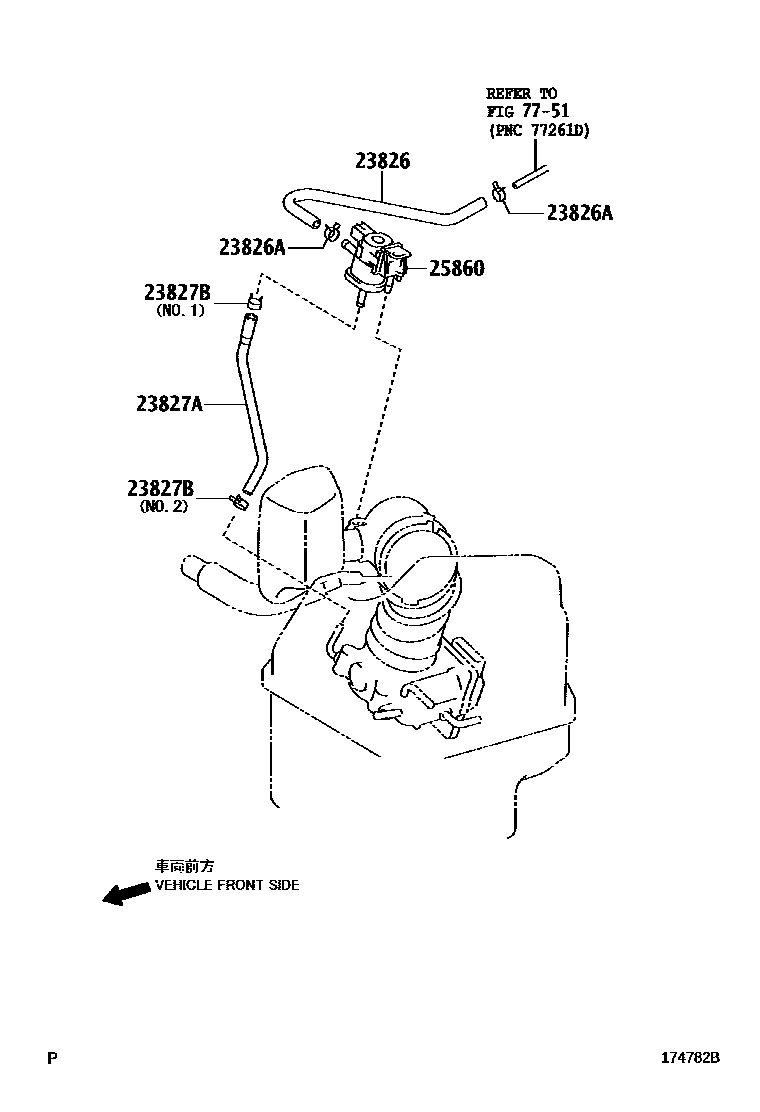

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28350i2AZFE..ACR5#..CBU200601-201605

main23826-31080i2GRFE..GSR5#..CBU200601-201605

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2AZFE..ACR5#..CBU200806-201605

main96132-51100i2AZFE..ACR5#..CBU200601-200805

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28300i2AZFE..ACR5#..CBU200601-201605

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11003i2AZFE..ACR5#..CBU200601-201605

main96132-41000i2AZFE..ACR5#..CBU200601-201605

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28140i2AZFE..ACR5#..CBU200601-201605

main25860-31070i2GRFE..GSR5#..CBU200601-201605

7751

6 parts on this diagram · 2 diagrams in section
