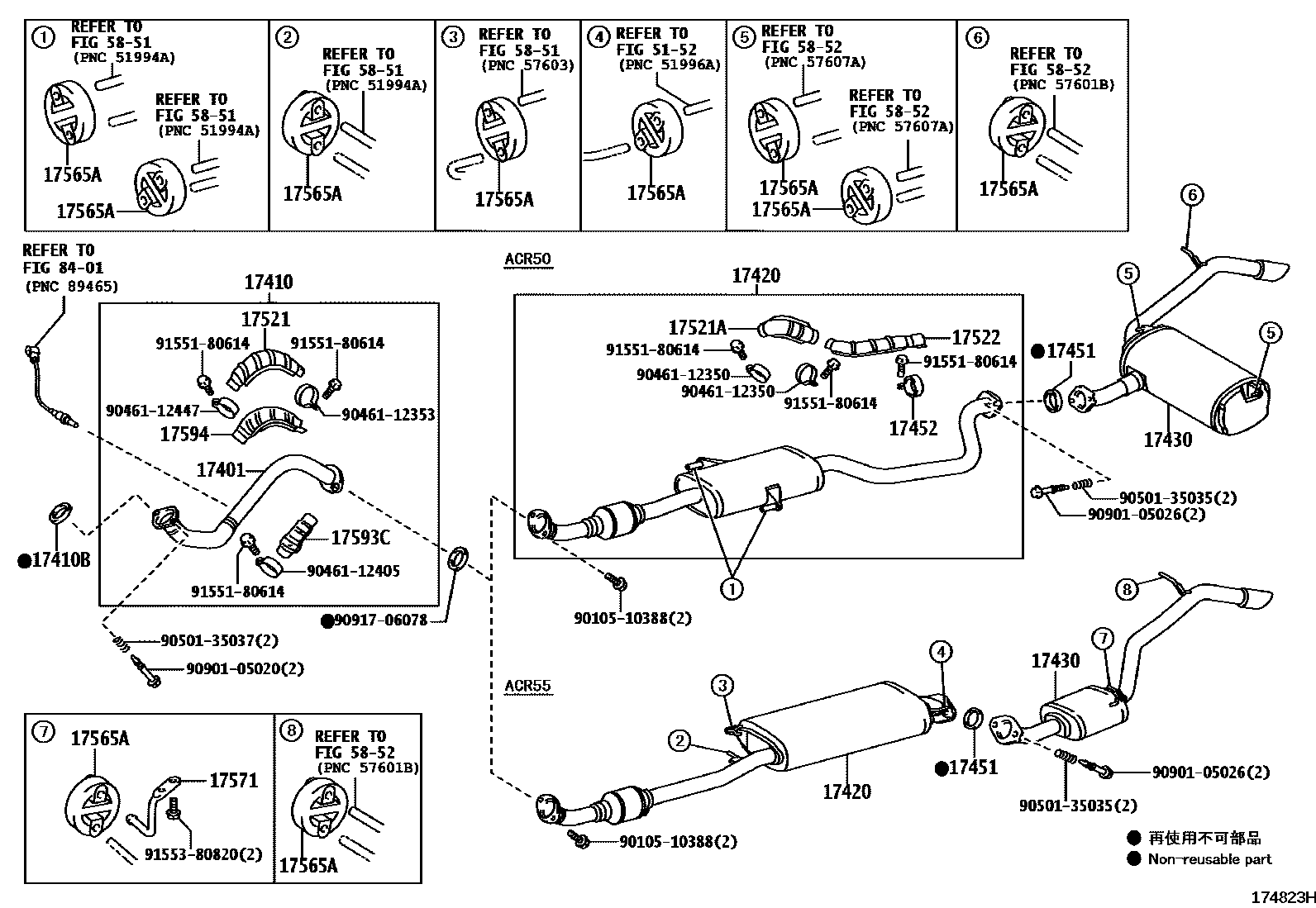

EXHAUST PIPE

0001 1 0002 1

17401PIPE SUB-ASSY, EXHAUST, FRONT

main17401-28100i2AZFE..ACR5#..CBU200601-201208

sub17401-28101

main17401-28101i2AZFE..ACR5#..CBU201209-201605

17410PIPE ASSY, EXHAUST, FRONT

main17410-28590i2AZFE..ACR5#..CBU200601-201208

sub17410-28591

main17410-28591i2AZFE..ACR5#..CBU201209-201605

main17410-31630i2GRFE..GSR5#..CBU200601-201605

17410BGASKET, EXHAUST PIPE

main17451-28040i2AZFE..ACR5#..CBU200601-201605

sub17451-28041

main17451-28080i2AZFE..ACR5#..CBU201207-201409

sub17451-28040

main90917-06089i2GRFE..GSR5#200601-201605

17420PIPE ASSY, EXHAUST, CENTER

main17403-31060i2GRFE..GSR50..CBU200601-201605

main17420-28640i2AZFE..ACR55..CBU200601-200912

main17420-28720i2AZFE..ACR50..CBU200601-200912

main17420-28A30i2AZFE..ACR50..CBU200912-201605

main17420-28A40i2AZFE..ACR55..CBU200912-201605

17430PIPE ASSY, EXHAUST, TAIL

main17430-28780i2AZFE..ACR50..CBU200601-201607

sub17430-28781

main17430-28781i2AZFE..ACR50..CBU201503-201605

main17430-28790i2AZFE..ACR55..CBU200601-201607

sub17430-28791

main17430-28791i2AZFE..ACR55..CBU201503-201605

main17430-31530i2GRFE..GSR50200601-201502

sub17430-31531

main17430-31531i2GRFE..GSR50201503-201605

main17430-31560i2GRFE..GSR55..CBU200601-201502

sub17430-31561

main17430-31561i2GRFE..GSR55201503-201605

17451GASKET, EXHAUST PIPE

main17451-28020i2AZFE..ACR55..CBU200601-200707

sub17451-28021

main17451-28021i2AZFE..ACR55..CBU200708-201102

sub17451-28022

main17451-28022i2AZFE..ACR55..CBU201103-201605

main17451-28030i2AZFE..ACR50..CBU200601-200712

sub17451-28031

main17451-28031i2AZFE..ACR50..CBU200801-201102

sub17451-28032

main17451-28032i2AZFE..ACR50..CBU201103-201605

main17451-31010i2GRFE..GSR5#..CBU200601-200806

sub17451-31011

main17451-31011i2GRFE..GSR5#..CBU200807-201102

sub17451-31012

main17451-31012i2GRFE..GSR5#..CBU201103-201605

17452CLAMP, EXHAUST PIPE

main90461-12375i2AZFE..ACR50..CBU200601-201605

main90461-12436i2GRFE..GSR50200601-201605

17521PROTECTOR, EXHAUST PIPE, FRONT NO.1

main17522-28040i2AZFE..ACR5#..CBU200601-201605

17521APROTECTOR, EXHAUST PIPE, UPPER NO.1

main17521-28070i2AZFE..ACR50..CBU201203-201605

main17521-28080i2AZFE..ACR50..CBU200601-201202

main17521-28110i2GRFE..GSR50..CBU200601-201605

17522PROTECTOR, EXHAUST PIPE, UPPER NO.2

main17522-28050i2AZFE..ACR50..CBU201203-201605

main17522-28060i2AZFE..ACR50..CBU200601-201202

main17522-28080i2GRFE..GSR50..CBU200601-201605

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2AZFE,2GRFE..ACR5#,GSR5#..CBU200601-201605

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-28100i2AZFE..ACR55..CBU201605

main17571-28100i2AZFE..ACR55..CBU200601-201605

main17571-31190i2GRFE..GSR5#..CBU200601-201605

17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1

main17593-28040i2AZFE..ACR5#..CBU200601-201605

17594PROTECTOR, EXHAUST PIPE, NO.2

main17594-28020i2AZFE..ACR5#..CBU200601-201605

5152

5851

5852

8401

9010510388

main90105-10388

9046112350

main90461-12350

9046112353

main90461-12353

9046112405

main90461-12405

9046112447

main90461-12447

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9091706078

main90917-06078

9155180614

main91551-80614

9155380820

main91553-80820

30 parts on this diagram · 2 diagrams in section
