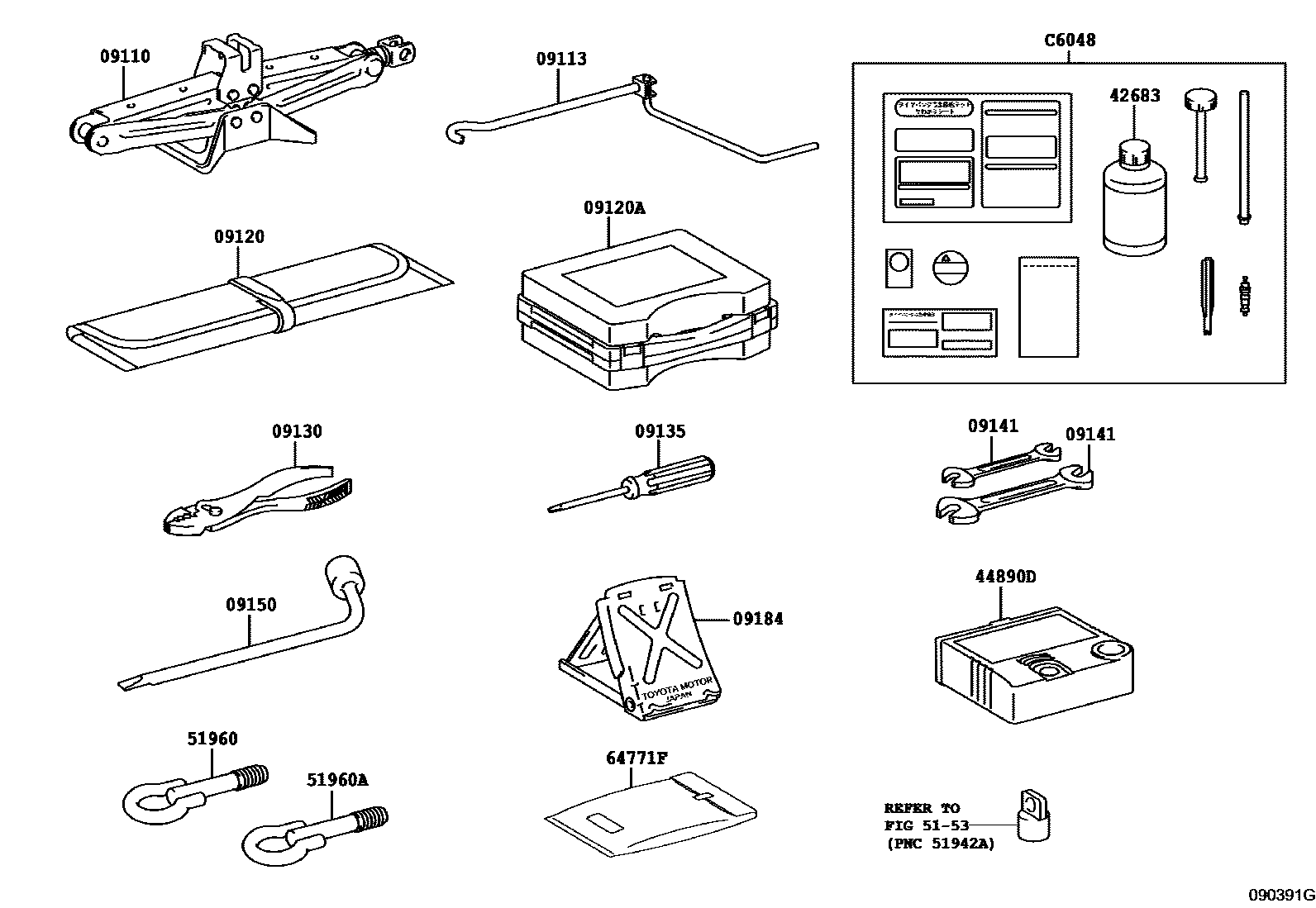

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09110-28180iACR5#,GSR5#..CBU200812-201103

sub09111-28160

main09110-28180iACR5#,GSR5#..CBU200601-200812

sub09111-28160

main09111-28160iACR5#..CBU201601-201605

main09111-28190iACR5#,GSR5#..CBU201103-201204

sub09111-28160

main09111-28190iACR5#,GSR5#..CBU201204-201512

sub09111-28160

09113HANDLE, JACK

main09113-44010iACR5#,GSR5#..CBU200601-201605

09120BAG, TOOL

main09120-12011iACR5#,GSR5#..CBU200601-201003

main09120-28090iACR5#..CBU201004-201605

09120ACASE, TOOL

main09120-28060iACR55,GSR55..CBU200601-200912

09130PLIERS

main99913-11500iGSR5#..G..CBU;ACR5#..07S..AERAS..CBU200812-201605

main99913-11500iACR5#..07S..X..CBU200812-201605

main99913-11500iACR5#..07S..X..CBU200812-201605

main99913-11500iACR5#..07S..X..CBU200812-201605

main99913-11500iACR5#..07S..X..CBU200812-201605

main99913-11500iACR5#..07S..X..CBU200812-201605

main99913-11500iACR5#..07S..X..CBU201204-201605

09135DRIVER, SCREW

main99915-10700iACR5#..08S..CBU200601-201605

main99915-10700iACR5#..08S..CBU200601-201605

main99915-10700iACR5#..08S..CBU200601-201605

main99915-10700iACR5#..08S..CBU201204-201605

main99915-10700iACR5#..08S..CBU200601-201605

main99915-10700iACR5#..07S..AERAS..CBU200812-201605

main99915-10700iACR5#..07S..AERAS..CBU200601-201605

main99915-10700iACR5#..07S..X..CBU200601-200812

09141SPANNER

main99914-10810iACR5#,GSR5#..08S..CBU200812-201605

main99914-10810iACR5#..07S..X..CBU200601-201605

main99914-10810iACR5#..07S..X..CBU200601-200812

main99914-10810iACR5#..07S..X..CBU200601-201605

main99914-10810iACR5#..07S..X..CBU200601-201605

main99914-10810iACR5#..07S..X..CBU200601-201605

main99914-10810iACR5#..07S..X..CBU200601-201605

main99914-10810iACR5#..07S..X..CBU200601-201605

main99914-10810iACR5#..07S..X..CBU201204-201605

main99914-11214iACR5#..07S..AERAS..CBU200601-201605

main99914-11214iACR5#..07S..X..CBU200812-201605

main99914-11214iACR5#..07S..X..CBU200601-201605

main99914-11214iACR5#..07S..X..CBU200601-201605

main99914-11214iACR5#..07S..X..CBU200601-201605

main99914-11214iACR5#..07S..X..CBU200601-201605

main99914-11214iACR5#,GSR5#..CBU200601-201605

main99914-11214iACR5#..07S..AERAS..CBU201204-201605

main99914-11214iACR5#..07S..X..CBU200601-200812

09150WRENCH, HUB NUT BOX

main09150-40010iACR5#,GSR5#..CBU200601-201605

09184STOPPER, WHEEL

main09184-00010

42683SEAL, TIRE REPAIR

main42683-28010iACR55,GSR55..CBU200601-200912

sub42683-28011

main42683-50010iACR5#,GSR5#..CBU200912-201208

sub42683-50011

main42683-50011iACR5#,GSR5#..CBU201208-201605

44890DCOMPRESSOR ASSY, AIR

main44890-52010iACR55,GSR55..CBU200601-200912

sub44890-42010

5153

51960HOOK ASSY, FRONT

main51960-28030iACR5#,GSR5#..CBU200601-200706

sub51960-28031

main51960-28031iACR5#,GSR5#..CBU200707-201802

sub51960-28050

main51960-28050iACR5#..CBU201803

51960AHOOK ASSY, REAR

main51960-28030iACR5#,GSR5#..CBU200601-200706

sub51960-28031

main51960-28031iACR5#..CBU200707-201802

sub51960-28050

main51960-28050iACR5#..CBU201803

64771FCOVER, SPARE WHEEL

main64771-44010iACR50,GSR50..CBU200601-200912

C6048REPAIR SET, TIRE

mainC604828020iACR55,GSR55..CBU200601-200912

subC6048-28021

mainC604850010iACR5#,GSR5#..CBU200912-201208

subC6048-50011

mainC604850011iACR5#..CBU201208-201605

16 parts on this diagram · 2 diagrams in section
