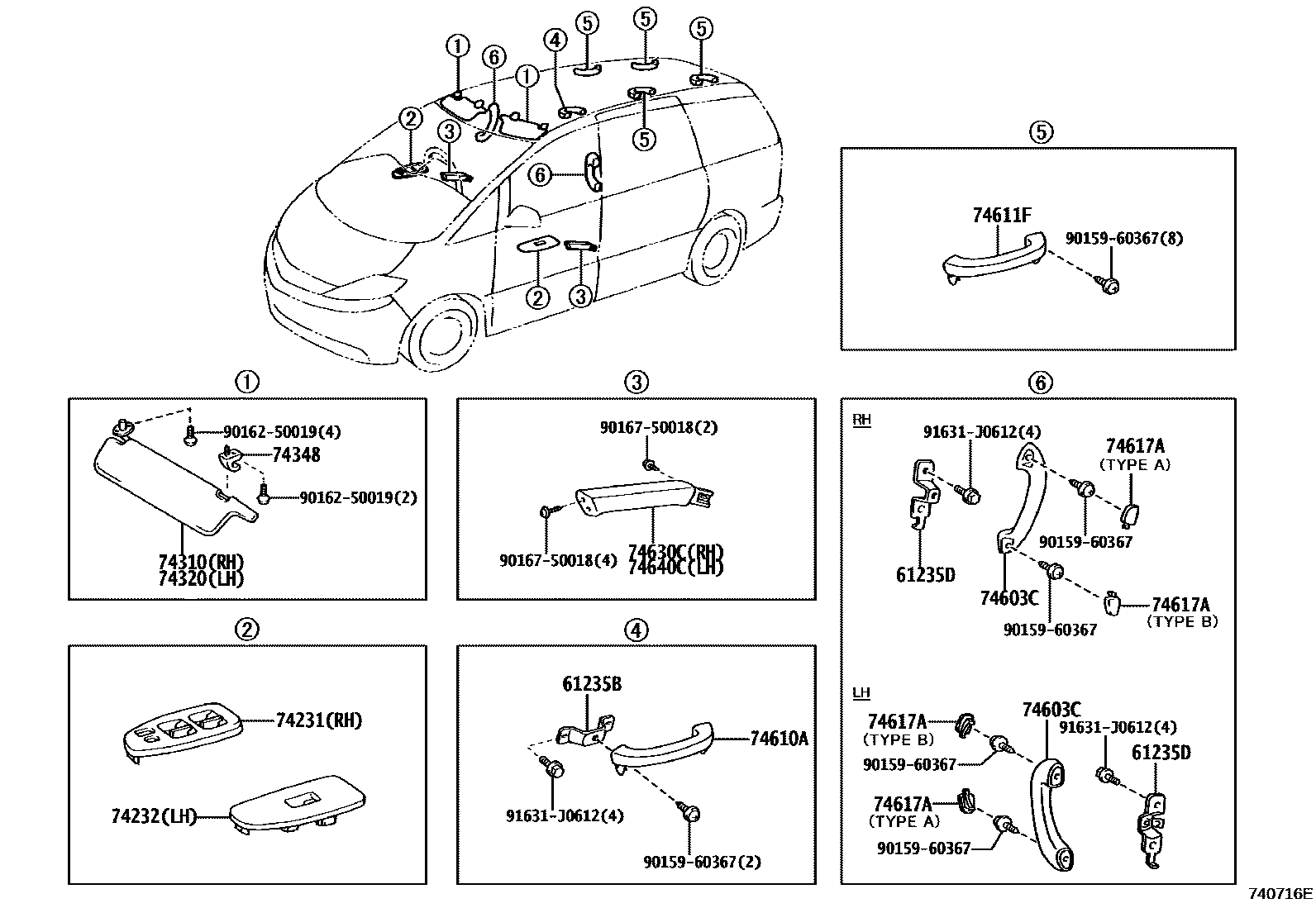

ARMREST & VISOR

0001 1 0002 1

61235BBRACKET, ASSIST GRIP

main61235-28030iACR30,40,MCR30,40199912-200304

61235DBRACKET, ASSIST GRIP

main61235-28070iACR30,40,MCR30,40199912-200304

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28250-B0iACR30,40,MCR30,40..J,X199912-200304

sub74231-28260

main74231-28250-B1iACR30,40,MCR30,40..J,X199912-200304

sub74231-28260

main74231-28250-E0iACR30,40..X200304-200601

sub74231-28260

main74231-28260-B0iACR30,40,MCR30,40..J,X199912-200304

BLUISH GRAY,TRIM11

sub74231-28260

main74231-28260-B1iACR30,40,MCR30,40..J,X199912-200304

DK. CHARCOAL,TRIM12

sub74231-28260

main74231-28260-B2iACR30,40..J200304-200601

DK.GRAY,TRIM1#

sub74231-28260

main74231-28260-E0iACR40..X;ACR30..J,X200304-200601

SANDAL WOOD,TRIM0#

sub74231-28260

main74231-28510iACR30,40,MCR30,40..AERAS199912-200104

sub74231-28520

main74231-28520iACR30,40,MCR30,40..AERAS199912-200104

sub74231-28620

main74231-28540iACR30,40,MCR30,40..G199912-200304

sub74231-28550

main74231-28540iACR30,40,MCR30,40..X200010-200104

sub74231-28550

main74231-28540iACR30,40,MCR30,40..AERAS200204-200304

sub74231-28550

main74231-28541iACR30,40,MCR30,40..AERAS200312-200409

sub74231-28551

main74231-28541iACR30,40,MCR30,40..G200304-200601

sub74231-28551

main74231-28550iACR30,40,MCR30,40..G,X199912-200304

sub74231-28551

main74231-28550iACR30,40,MCR30,40..AERAS200204-200304

sub74231-28551

main74231-28550iACR30,40,MCR30,40..X200010-200104

sub74231-28551

main74231-28551iACR30,40..X200504

main74231-28551iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F)

main74231-28551iACR30,40,MCR30,40..G200304-200601

main74231-28560iACR30,40,MCR30,40..08S..AERAS200006-200106

sub74231-28570

main74231-28560iACR30,40,MCR30,40..AERAS200204-200304

sub74231-28570

main74231-28570iACR30,40,MCR30,40..08S..AERAS200006-200106

sub74231-28680

main74231-28570iACR30,40,MCR30,40..AERAS200204-200304

sub74231-28680

main74231-28670iACR30,40,MCR30,40..AERAS200104-200601

sub74231-28680

main74231-28680iACR30,40,MCR30,40..AERAS200104-200601

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28300-B0iACR30,40,MCR30,40..J,X199912-200304

BLUISH GRAY,TRIM11

sub74232-28300

main74232-28300-B1iACR30,40,MCR30,40..J,X199912-200304

DK. CHARCOAL,TRIM12

sub74232-28300

main74232-28300-B2iACR30,40..J200304-200601

DK.GRAY,TRIM1#

sub74232-28300

main74232-28300-E0iACR40..X;ACR30..J,X200304-200601

SANDAL WOOD,TRIM0#

sub74232-28300

main74232-28310iACR30,40,MCR30,40..AERAS199912-200104

sub74232-28390

main74232-28320iACR30,40,MCR30,40..AERAS200204-200304

sub74232-28321

main74232-28320iACR30,40,MCR30,40..G199912-200304

sub74232-28321

main74232-28320iACR30,40,MCR30,40..X200010-200104

sub74232-28321

main74232-28321iACR30,40,MCR30,40..G200304-200601

main74232-28321iACR30,40..X200504

main74232-28321iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F)

main74232-28340iACR30,40,MCR30,40..08S..AERAS200006-200106

sub74232-28430

main74232-28340iACR30,40,MCR30,40..AERAS200204-200304

sub74232-28430

main74232-28430iACR30,40,MCR30,40..AERAS,AERSS200104-200601

74310VISOR ASSY, RH

main74310-2J030-A0iACR40..X;ACR30..J,X200304-200601

IVORY,TRIM0#

sub74310-2J030

main74310-2J030-B2iACR30,40,MCR30,40..J,X199912-200304

ME. CHARCOAL,TRIM12

sub74310-2J030

main74310-2J030-B3iACR30,40,MCR30,40..AERAS199912-200304

LT. BL. GRAY,TRIM11

sub74310-2J030

main74310-2J030-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT. GRAY,TRIM1#

sub74310-2J030

main74310-2J090-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub74310-2J090

main74310-2J090-A0iACR30,40,MCR30,40..G200304-200601

IVORY,TRIM0#

sub74310-2J090

main74310-2J090-B2iACR30,40,MCR30,40..X200109-200204

sub74310-2J090

main74310-2J090-B2iACR30,40,MCR30,40..G199912-200304

ME. CHARCOAL,TRIM12

sub74310-2J090

main74310-2J090-B2iACR30,40,MCR30,40..AERAS200204-200304

sub74310-2J090

main74310-2J090-B2iACR30,40,MCR30,40..X200010-200104

sub74310-2J090

main74310-2J090-B3iACR30,40,MCR30,40..AERAS200206-200305

sub74310-2J090

main74310-2J090-B3iACR30,40,MCR30,40..G199912-200304

LT. BL. GRAY,TRIM11

sub74310-2J090

main74310-2J090-B3iACR30,40,MCR30,40..AERAS200204-200304

sub74310-2J090

main74310-2J090-B4iACR30,40,MCR30,40..AERAS200409

sub74310-2J090

74320VISOR ASSY, LH

main74320-28510-A0iACR40..X;ACR30..J,X200304-200601

IVORY,TRIM0#

sub74320-28510

main74320-28510-B2iACR30,40,MCR30,40..J,X199912-200304

ME. CHARCOAL,TRIM12

sub74320-28510

main74320-28510-B3iACR30,40,MCR30,40..AERAS199912-200304

LT. BL. GRAY,TRIM11

sub74320-28510

main74320-28510-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT. GRAY,TRIM1#

sub74320-28510

main74320-28520-A0iACR30,40,MCR30,40..G200304-200601

IVORY,TRIM0#

sub74320-28520

main74320-28520-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub74320-28520

main74320-28520-B2iACR30,40,MCR30,40..X200109-200204

sub74320-28520

main74320-28520-B2iACR30,40,MCR30,40..AERAS200204-200304

sub74320-28520

main74320-28520-B2iACR30,40,MCR30,40..G199912-200304

ME. CHARCOAL,TRIM12

sub74320-28520

main74320-28520-B2iACR30,40,MCR30,40..X200010-200104

sub74320-28520

main74320-28520-B3iACR30,40,MCR30,40..AERAS200206-200305

sub74320-28520

main74320-28520-B3iACR30,40,MCR30,40..AERAS200204-200304

sub74320-28520

main74320-28520-B3iACR30,40,MCR30,40..G199912-200304

LT. BL. GRAY,TRIM11

sub74320-28520

main74320-28520-B4iACR30,40,MCR30,40..AERAS200409

sub74320-28520

74348HOLDER, VISOR

main74348-26020-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

sub74348-26020

main74348-26020-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub74348-26020

main74348-26020-B0iACR30,40,MCR30,40..G,J,X199912-200304

LT.BLUISH GRAY,TRIM11

sub74348-26020

main74348-26020-B3iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

sub74348-26020

main74348-26020-B5iACR30,40,MCR30,40..AERAS200204-200304

sub74348-26020

main74348-26020-B5iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub74348-26020

74603CGRIP SUB-ASSY, ASSIST

main74603-44020-A1iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

sub74603-44020

main74603-44020-A1iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub74603-44020

main74603-44020-B1iACR30,40,MCR30,40..G,J,X199912-200304

LT.BLUISH GRAY,TRIM11

sub74603-44020

main74603-44020-B2iACR30,40,MCR30,40..AERAS200204-200304

sub74603-44020

main74603-44020-B2iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub74603-44020

main74603-44020-B6iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

LT.GRAY,TRIM1#

sub74603-44020

74610AGRIP SUB-ASSY, ASSIST

main74611-20030-A1iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

sub74611-20030

sub74610-12090

main74611-20030-A1iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub74611-20030

sub74610-12090

main74611-20030-B2iACR30,40,MCR30,40..G,J,X199912-200304

LT.BLUISH GRAY,TRIM11

sub74611-20030

sub74610-12090

main74611-20030-B6iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub74611-20030

sub74610-12090

main74611-20030-B6iACR30,40,MCR30,40..AERAS200204-200304

sub74611-20030

sub74610-12090

main74611-20030-B8iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

sub74611-20030

sub74610-12090

74611FGRIP, ASSIST, NO.1

main74611-20030-A1iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

sub74611-20030

sub74610-12090

main74611-20030-A1iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

sub74611-20030

sub74610-12090

main74611-20030-B2iACR30,40,MCR30,40..G,J,X199912-200304

LT.BLUISH GRAY,TRIM11

sub74611-20030

sub74610-12090

main74611-20030-B6iACR30,40,MCR30,40..AERAS200204-200304

sub74611-20030

sub74610-12090

main74611-20030-B6iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

sub74611-20030

sub74610-12090

main74611-20030-B8iACR40..AERAS,AERSS,J;ACR30,MCR30,40..AERAS,AERSS200304-200601

sub74611-20030

sub74610-12090

74617APLUG, ASSIST GRIP

main74617-44010-A1iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

sub74617-44010

main74617-44010-A1iACR30,40,MCR30,40..AERAS200312-200409

sub74617-44010

main74617-44010-B1iACR30,40,MCR30,40..G,J,X199912-200304

sub74617-44010

main74617-44010-B2iACR30,40,MCR30,40..G,J,X199912-200304

sub74617-44010

main74617-44010-B2iACR30,40,MCR30,40..AERAS200204-200304

sub74617-44010

main74617-44010-B5iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

sub74617-44010

main74617-44020-A1iACR30,40,MCR30,40..AERAS200312-200409

sub74617-44020

main74617-44020-A1iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

sub74617-44020

main74617-44020-B1iACR30,40,MCR30,40..G,J,X199912-200304

sub74617-44020

main74617-44020-B2iACR30,40,MCR30,40..AERAS200204-200304

sub74617-44020

main74617-44020-B2iACR30,40,MCR30,40..G,J,X199912-200304

sub74617-44020

main74617-44020-B5iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

sub74617-44020

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-28010-B0iACR30,40,MCR30,40..AERAS199912-200104

BLUISH GRAY,TRIM1#

sub74630-28010

main74630-28010-B0iACR30,40,MCR30,40..J,X199912-200304

BLUISH GRAY,TRIM11

sub74630-28010

main74630-28010-B1iACR30,40,MCR30,40..J,X199912-200304

DK.CHARCOAL,TRIM12

sub74630-28010

main74630-28010-B2iACR30,40..J200403-200601

DK.GRAY,TRIM15

sub74630-28010

main74630-28010-B2iACR30,40..J200304-200403

DK.GRAY,TRIM1#

sub74630-28010

main74630-28010-C0iACR30,40,MCR30,40..G,X199912-200304

BLACK,TRIM11,12

sub74630-28010

main74630-28010-C0iACR30,40,MCR30,40..AERAS200204-200304

sub74630-28010

main74630-28010-C0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),BLACK,TRIM0#

sub74630-28010

main74630-28010-C0iACR30,40,MCR30,40..G200304-200601

BLACK,TRIM0#

sub74630-28010

main74630-28010-C0iACR30,40..J200403-200601

BLACK,TRIM15

sub74630-28010

main74630-28010-C0iACR30,40..X200504

sub74630-28010

main74630-28010-E0iACR40..X;ACR30..J,X200304-200601

SANDAL WOOD,TRIM0#

sub74630-28010

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-28010-B0iACR30,40,MCR30,40..J,X199912-200304

BLUISH GRAY,TRIM11

sub74640-28010

main74640-28010-B0iACR30,40,MCR30,40..AERAS199912-200104

BLUISH GRAY,TRIM1#

sub74640-28010

main74640-28010-B1iACR30,40,MCR30,40..J,X199912-200304

DK.CHARCOAL,TRIM12

sub74640-28010

main74640-28010-B2iACR30,40..J200304-200403

DK.GRAY,TRIM1#

sub74640-28010

main74640-28010-B2iACR30,40..J200403-200601

DK.GRAY,TRIM15

sub74640-28010

main74640-28010-C0iACR30,40,MCR30,40..G,X199912-200304

BLACK,TRIM11,12

sub74640-28010

main74640-28010-C0iACR30,40,MCR30,40..AERAS200204-200304

sub74640-28010

main74640-28010-C0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),BLACK,TRIM0#

sub74640-28010

main74640-28010-C0iACR30,40,MCR30,40..G200304-200601

BLACK,TRIM0#

sub74640-28010

main74640-28010-C0iACR30,40..J200403-200601

BLACK,TRIM15

sub74640-28010

main74640-28010-C0iACR30,40..X200504

sub74640-28010

main74640-28010-E0iACR40..X;ACR30..J,X200304-200601

SANDAL WOOD,TRIM0#

sub74640-28010

9015960367

main90159-60367

9016250019

main90162-50019

9016750018

main90167-50018

91631J0612

main91631-J0612

17 parts on this diagram · 2 diagrams in section
