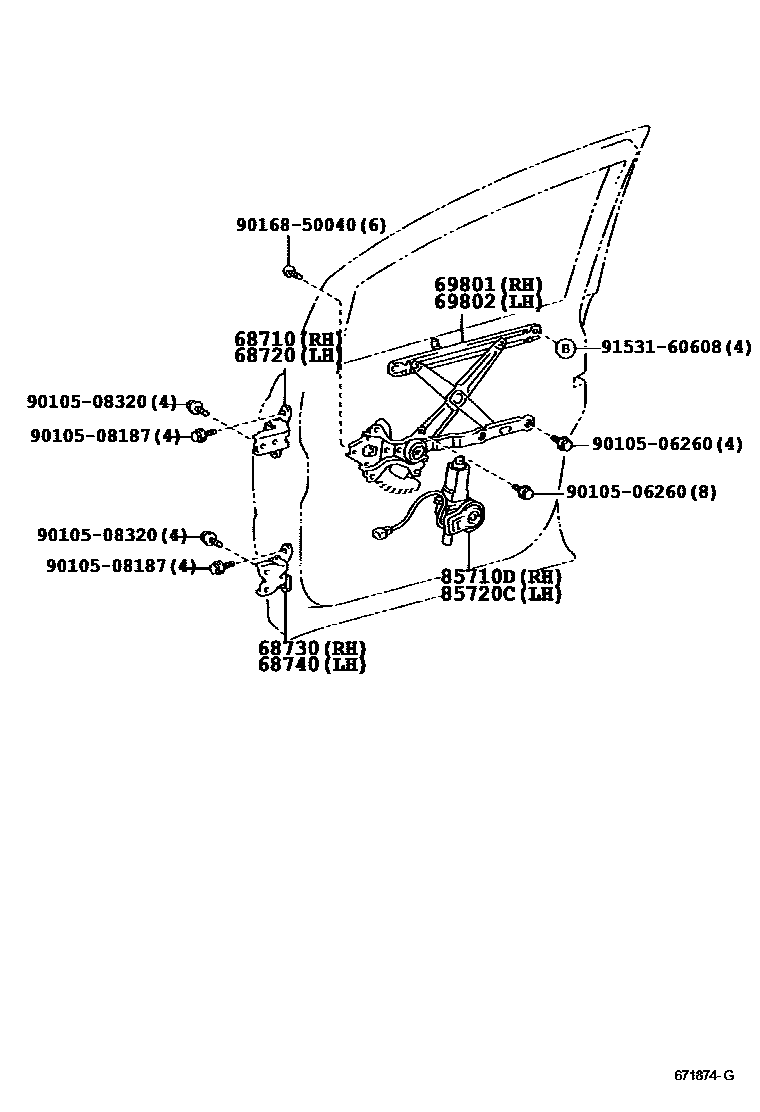

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010iACR30,40,MCR30,40199912-200601

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-44020iACR30,40,MCR30,40..G,J,X200104-200304

main68720-52010iACR30,40,MCR30,40199912-200601

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-44010iACR30,40,MCR30,40199912-200601

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-44010iACR30,40,MCR30,40199912-200601

main68710-44020iACR30,40,MCR30,40..G,J,X200104-200304

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28080iACR30,40,MCR30,40199912-200304

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28060iACR30,40,MCR30,40199912-200304

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-28100iACR30,40,MCR30,40200207-200304

main85710-44030iACR30,40,MCR30,40199912-200207

sub85710-16140

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-44010iACR30,40,MCR30,40199912-200304

sub85720-30250

9010506260

main90105-06260

9010508187

main90105-08187

9010508320

main90105-08320

9016850040

main90168-50040

9153160608

main91531-60608

13 parts on this diagram · 1 diagram in section
