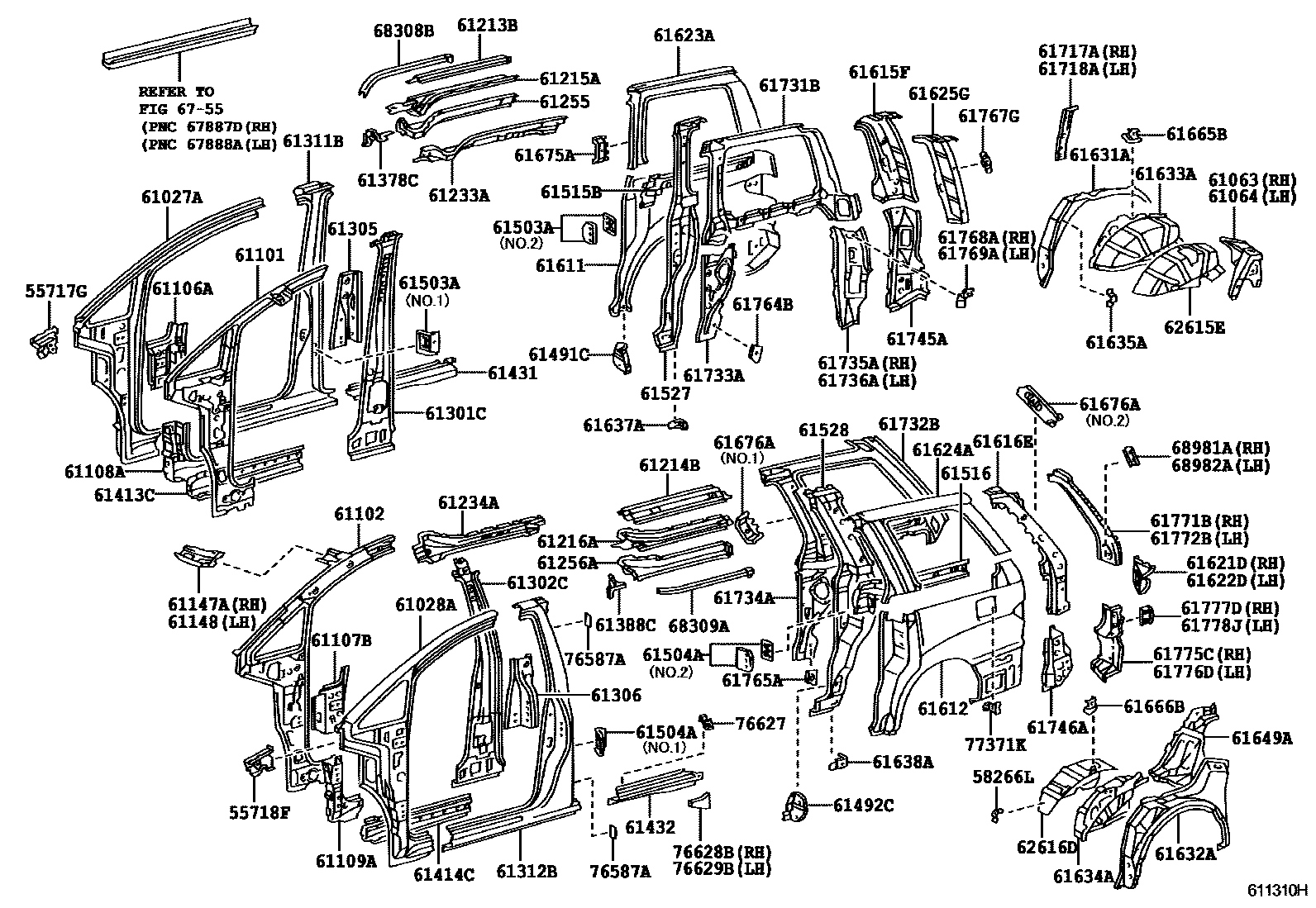

SIDE MEMBER

0001 1SIDE MEMBER 0002 1PLUG,HOLE

55717GPANEL, COWL TOP SIDE, INNER RH

main55717-28010iACR30,40,MCR30,40199912-200304

55718FPANEL, COWL TOP SIDE, INNER LH

main55718-28010iACR30,40,MCR30,40199912-200304

58266LBRACKET, FUEL TUBE CLAMP

main58266-14050iACR30,40,MCR30,40199912-200304

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-28090iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main61027-28090iACR30,40,MCR30,40..AERAS,G,X199912-200304

main61027-28090iACR30,40..J200002-200304

main61027-28100iACR30,40..J200002-200304

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-28180iACR30,40,MCR30,40..AERAS,G,X199912-200304

main61028-28180iACR30,40..J200002-200304

main61028-28180iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main61028-28190iACR30,40..J200002-200304

61063BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH

main61063-28010iACR30,40,MCR30,40199912-200304

sub61063-28070

main61063-28070iACR30,40,MCR30,40200304

61064BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH

main61064-28010iACR30,40,MCR30,40199912-200304

sub61064-28060

main61064-28060iACR30,40,MCR30,40200304

61101PANEL SUB-ASSY, COWL SIDE, RH

main61013-28010iACR30,40,MCR30,40199912-200304

61102PANEL SUB-ASSY, COWL SIDE, LH

main61014-28010iACR30,40,MCR30,40199912-200304

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-28010iACR30,40,MCR30,40199912-200304

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-28010iACR30,40,MCR30,40199912-200304

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-28020iACR30,40,MCR30,40199912-200304

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-28020iACR30,40,MCR30,40199912-200304

61147AEXTENSION, FRONT BODY PILLAR, UPPER OUTER

main61147-28010iACR30,40,MCR30,40199912-200304

61148EXTENSION, FRONT BODY PILLAR, OUTER LH

main61148-28010iACR30,40,MCR30,40199912-200304

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-28030iACR30,40,MCR30,40199912-200506

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-28030iACR30,40,MCR30,40199912-200506

61215ARAIL, ROOF SIDE, OUTER NO.3 RH

main61215-28020iACR30,40,MCR30,40199912-200506

61216ARAIL, ROOF SIDE, OUTER REAR LH

main61216-28020iACR30,40,MCR30,40199912-200506

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-28070iACR30,40,MCR30,40199912-200304

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-28100iACR30,40,MCR30,40199912-200304

61255PLATE, ROOF SIDE RAIL, OUTER RH

main61255-28010iACR30,40,MCR30,40199912-200506

61256APLATE, ROOF SIDE RAIL, OUTER LH

main61256-28010iACR30,40,MCR30,40199912-200506

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-28180iACR30,40,MCR30,40199912-200304

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-28180iACR30,40,MCR30,40199912-200304

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-28020iACR30,40,MCR30,40199912-200304

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-28050iACR30,40,MCR30,40199912-200304

61311BPILLAR, CENTER BODY, OUTER RH

main61311-28110iACR30,40,MCR30,40199912-200304

61312BPILLAR, CENTER BODY, OUTER LH

main61312-28110iACR30,40,MCR30,40199912-200304

61378CRETAINER, SLIDE DOOR DOWN STOP MALE, UPPER RH

main61378-28030iACR30,40,MCR30,40199912-200506

61388CRETAINER, SLIDE DOOR DOWN STOP MALE, UPPER LH

main61388-28020iACR30,40,MCR30,40199912-200506

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-28020iACR30,40,MCR30,40199912-200304

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-28020iACR30,40,MCR30,40199912-200304

61431PANEL, ROCKER, OUTER REAR RH

main61431-28020iACR30,40,MCR30,40..G,J,X199912-200304

main61431-28030iACR30,40,MCR30,40..AERAS199912-200304

main61431-28040iACR30,40,MCR30,40..AERAS200012-200304

61432PANEL, ROCKER, OUTER REAR LH

main61432-28030iACR30,40,MCR30,40..G,J,X199912-200304

main61432-28040iACR30,40,MCR30,40..G,J,X199912-200304

main61432-28050iACR30,40,MCR30,40..AERAS,AERSS200012-200304

61491CPLATE, NO.3 LOWER RAIL, INNER RH

main61491-28010iACR30,40,MCR30,40199912-200304

61492CPLATE, NO.3 LOWER RAIL, INNER LH

main61492-28010iACR30,40,MCR30,40199912-200304

61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

main61503-26010iACR30,40,MCR30,40199912-200304

main61503-28070iACR30,40,MCR30,40199912-200304

61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH

main61503-26010iACR30,40,MCR30,40199912-200304

main61504-28090iACR30,40,MCR30,40199912-200304

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-28030iACR30,40,MCR30,40199912-200304

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-28010iACR30,40,MCR30,40199912-200304

61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH

main61527-28010iACR30,40,MCR30,40199912-200304

61528REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH

main61528-28010iACR30,40,MCR30,40199912-200304

61611PANEL, QUARTER, RH

main61611-28160iACR30,40,MCR30,40..G,X200304

sub61611-28260

main61611-28160iACR30,40,MCR30,40..G,J,X199912-200304

sub61611-28260

main61611-28170iACR30,40,MCR30,40..AERAS199912-200304

sub61611-28270

main61611-28170iACR30,40,MCR30,40..AERAS,AERSS200304

sub61611-28270

main61611-28180iACR30,40,MCR30,40..G,J,X199912-200304

sub61611-28280

main61611-28190iACR30,40,MCR30,40..AERAS,AERSS199912-200304

sub61611-28290

61612PANEL, QUARTER, LH

main61612-28180iACR30,40,MCR30,40..G,J,X199912-200304

sub61612-28310

main61612-28190iACR30,40,MCR30,40..AERAS199912-200304

sub61612-28320

61615FREINFORCEMENT, QUARTER PANEL, OUTER RH

main61615-28030iACR30,40,MCR30,40199912-200304

61616EREINFORCEMENT, QUARTER PANEL, OUTER LH

main61616-28050iACR30,40,MCR30,40199912-200304

61621DTROUGH, BACK DOOR OPENING, RH

main61621-28030iACR30,40,MCR30,40199912-200304

61622DTROUGH, BACK DOOR OPENING, LH

main61622-28020iACR30,40,MCR30,40199912-200304

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-28080iACR30,40,MCR30,40199912-200304

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-28080iACR30,40,MCR30,40199912-200304

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-28070iACR30,40,MCR30,40200007-200304

main61625-28080iACR30,40,MCR30,40199912-200007

sub61625-28070

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-28040iACR30,40,MCR30,40199912-200304

main61631-28050iACR30,40,MCR30,40..AERAS,AERSS,J,X199912-200304

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-28040iACR30,40,MCR30,40199912-200304

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-28040iACR30,40,MCR30,40199912-200304

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-28060iACR30,40,MCR30,40199912-200304

61635ABRACE, QUARTER WHEEL HOUSE, RH

main61635-28290iACR30,40,MCR30,40199912-200304

61637ABRACE, QUARTER PANEL, RH

main61637-28030iACR30,40,MCR30,40199912-200304

61638ABRACE, QUARTER PANEL, LH

main61637-28030iACR30,40,MCR30,40199912-200304

61649APLATE, QUARTER WHEEL HOUSE

main61649-28010iACR30,40,MCR30,40199912-200304

sub61649-28020

sub90333-25001

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-28020iACR30,40,MCR30,40199912-200304

61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

main61666-28010iACR30,40,MCR30,40199912-200304

61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH

main61077-28040iACR30,40,MCR30,40199912-200304

61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH

main61078-28070iACR30,40,MCR30,40199912-200304

main61709-28050iACR30,40,MCR30,40199912-200304

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-28010iACR30,40,MCR30,40199912-200304

61718AREINFORCEMENT, QUARTER PANEL EXTENSION, LH

main61718-28010iACR30,40,MCR30,40199912-200304

61731BPANEL, ROOF SIDE, INNER RH

main61731-28010iACR30,40,MCR30,40200007-200304

main61731-28020iACR30,40,MCR30,40199912-200007

sub61731-28010

61732BPANEL, ROOF SIDE, INNER LH

main61732-28010iACR30,40,MCR30,40200304

main61732-28020iACR30,40,MCR30,40199912-200304

sub61732-28010

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-28010iACR30,40,MCR30,40199912-200304

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-28010iACR30,40,MCR30,40199912-200304

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-28010iACR30,40,MCR30,40199912-200304

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-28010iACR30,40,MCR30,40199912-200304

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-28040iACR30,40,MCR30,40199912-200304

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-28050iACR30,40,MCR30,40199912-200304

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-28050iACR30,40,MCR30,40199912-200304

61765AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61765-28070iACR30,40,MCR30,40199912-200304

61767GRETAINER, SEAT BELT ANCHOR, NO.2

main61767-44010iACR30,40,MCR30,40199912-200304

61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61768-28050iACR30,40,MCR30,40199912-200304

61769AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61769-28020iACR30,40,MCR30,40199912-200304

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-28050iACR30,40,MCR30,40199912-200304

61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH

main61772-28040iACR30,40,MCR30,40199912-200304

61775CFRAME, BACK DOOR OPENING SIDE, RH

main61775-28020iACR30,40,MCR30,40199912-200304

61776DFRAME, BACK DOOR OPENING SIDE, LH

main61776-28080iACR30,40,MCR30,40199912-200304

61777DRETAINER, BACK DOOR SIDE STOPPER, RH

main61777-28030iACR30,40,MCR30,40199912-200304

61778JRETAINER, BACK DOOR SIDE STOPPER, LH

main61777-28030iACR30,40,MCR30,40199912-200304

62615ECOVER, QUARTER WHEEL HOUSE, INNER RH

main62603-28330iACR30,40,MCR30,40199912-200304

62616DCOVER, QUARTER WHEEL HOUSE, INNER LH

main62604-28390iACR30,40,MCR30,40199912-200304

6755

68308BRAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-28030iACR30,40,MCR30,40199912-200301

main68308-28031iACR30,40,MCR30,40200301-200506

sub68308-28032

main68308-28032iACR30,40,MCR30,40200507-200601

68309ARAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-28030iACR30,40,MCR30,40199912-200301

main68309-28031iACR30,40,MCR30,40200301-200506

sub68309-28032

main68309-28032iACR30,40,MCR30,40200507-200601

68981ARETAINER, BACK DOOR STAY, RH

main68981-95D00iACR30,40,MCR30,40199912-200304

sub68981-95D01

68982ARETAINER, BACK DOOR STAY, LH

main68981-95D00iACR30,40,MCR30,40199912-200304

sub68981-95D01

76587APROTECTOR, CENTER PILLAR OUTER

main76587-28010iACR30,40,MCR30,40200005-200304

76627MUDGUARD, QUARTER PANEL, INNER

main76627-28010iACR30,40,MCR30,40200009-200304

76628BMUDGUARD, QUARTER PANEL, UPPER REAR RH

main76628-28010iACR30,40,MCR30,40200009-200304

76629BMUDGUARD, QUARTER PANEL, UPPER REAR LH

main76629-28010iACR30,40,MCR30,40200009-200304

77371KBRACKET, FUEL FILLER OPENING LID LOCK

main77371-28010iACR30,40,MCR30,40199912-200304

97 parts on this diagram · 2 diagrams in section
