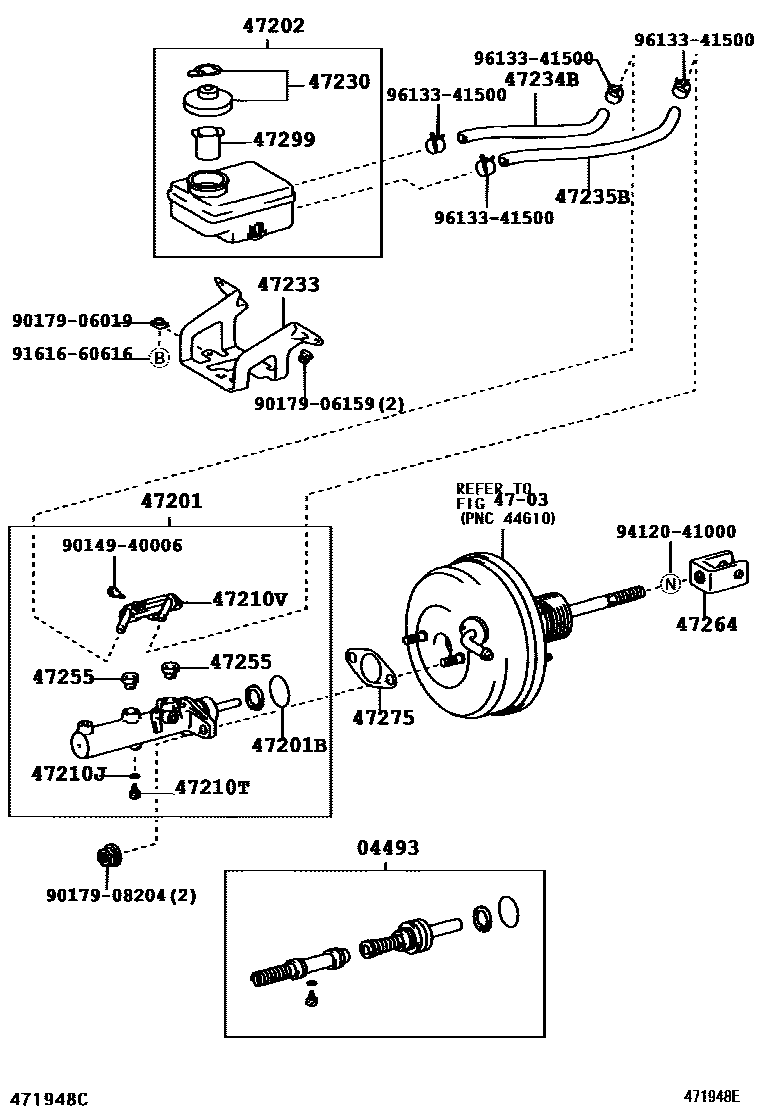

BRAKE MASTER CYLINDER

0001 1 0002 1��(VSC) 0003 1 0004 1��(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-28150iMCR30199912-200304

main04493-28160iACR30,40,MCR30,40199912-200304

main04493-28180iACR30,40,MCR30,40200304

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28581iMCR30199912-200304

main47201-28591iACR30,40,MCR30,40199912-200304

main47201-28620iACR30,40,MCR30,40200304

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-EH001iACR30,40,MCR30,40200304

main90029-20059iACR30,40,MCR30,40199912-200304

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28230iMCR30,40199912-200304

main47220-28240iACR30,40,MCR30,40199912-200304

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iACR30,40,MCR30,40200112-200304

main90430-06104iACR30,40,MCR30,40199912-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iACR30,40,MCR30,40199912-200304

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40402iACR30,40,MCR30,40199912-200304

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iMCR30,40199912-200304

sub47230-47090

main47230-28240iACR30,40,MCR30,40199912-200304

47233BRACKET, RESERVOIR

main47233-28080iACR30,40,MCR30,40199912-200304

47234BTUBE, RESERVOIR, NO.1

main47234-28050iACR30,40,MCR30,40199912-200304

main47234-28120iACR30,40,MCR30,40200304-200311

sub47234-28121

main47234-28121iACR30,40,MCR30,40200311

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-28050iACR30,40,MCR30,40199912-200304

main47235-28120iMCR30,40200304

main47235-28130iACR30,40,MCR30,40200304

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iACR30,40,MCR30,40199912-200304

main47255-28620iACR30,40,MCR30,40200304

main47255-52010iMCR30,40200304

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iACR30,40,MCR30,40199912-200304

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iACR30,40,MCR30,40199912-200304

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iACR30,40,MCR30,40199912-200304

9014940006

main90149-40006

9017906019

main90179-06019

9017906159

main90179-06159

9017908204

main90179-08204

9161660616

main91616-60616

9412041000

main94120-41000

9613341500

main96133-41500

23 parts on this diagram · 4 diagrams in section
