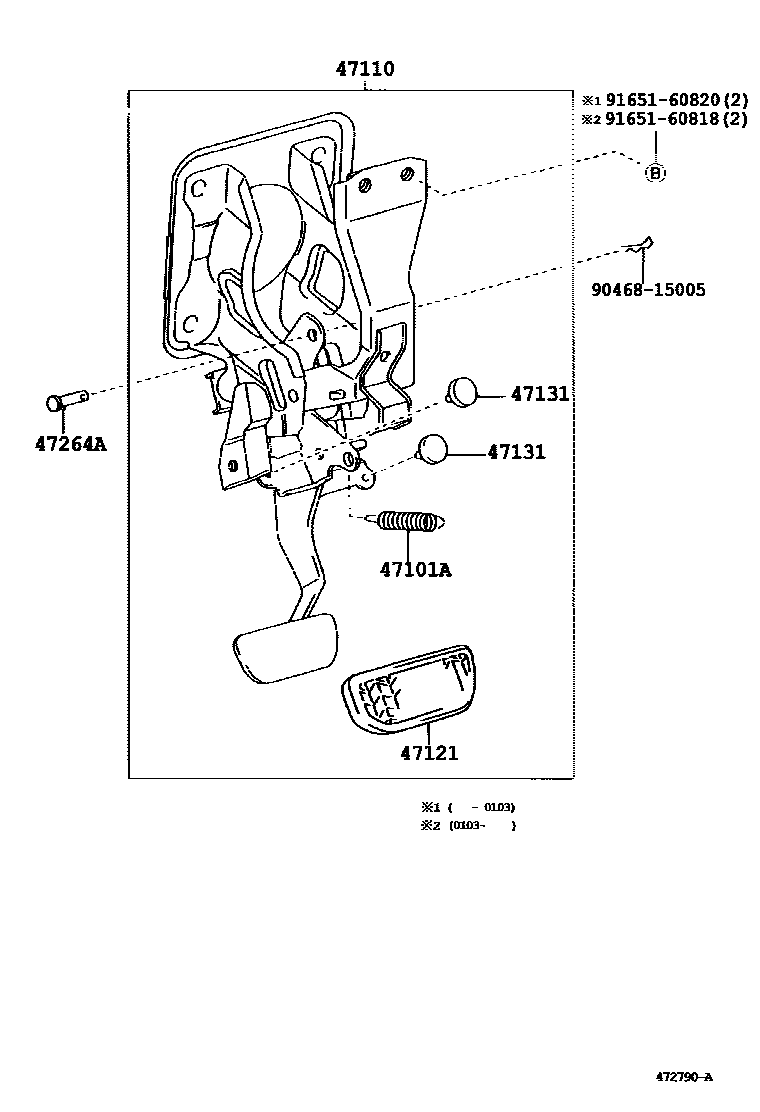

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-18083iACR30,40,MCR30,40199912-200304

main90506-20075iACR30,40,MCR30,40200312

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28040iACR30,40,MCR30,40199912-200304

sub47110-28140

main47110-28041iACR30,40,MCR30,40200304

47121PAD, BRAKE PEDAL

main47121-52010iACR30,40,MCR30,40199912-200304

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049×2iACR30,40,MCR30,40199912-200304

47264APIN(FOR PUSH ROD)

main90240-06023iACR30,40,MCR30,40199912-200304

9046815005

main90468-15005

9165160818

main91651-60818

9165160820

main91651-60820

8 parts on this diagram · 1 diagram in section
