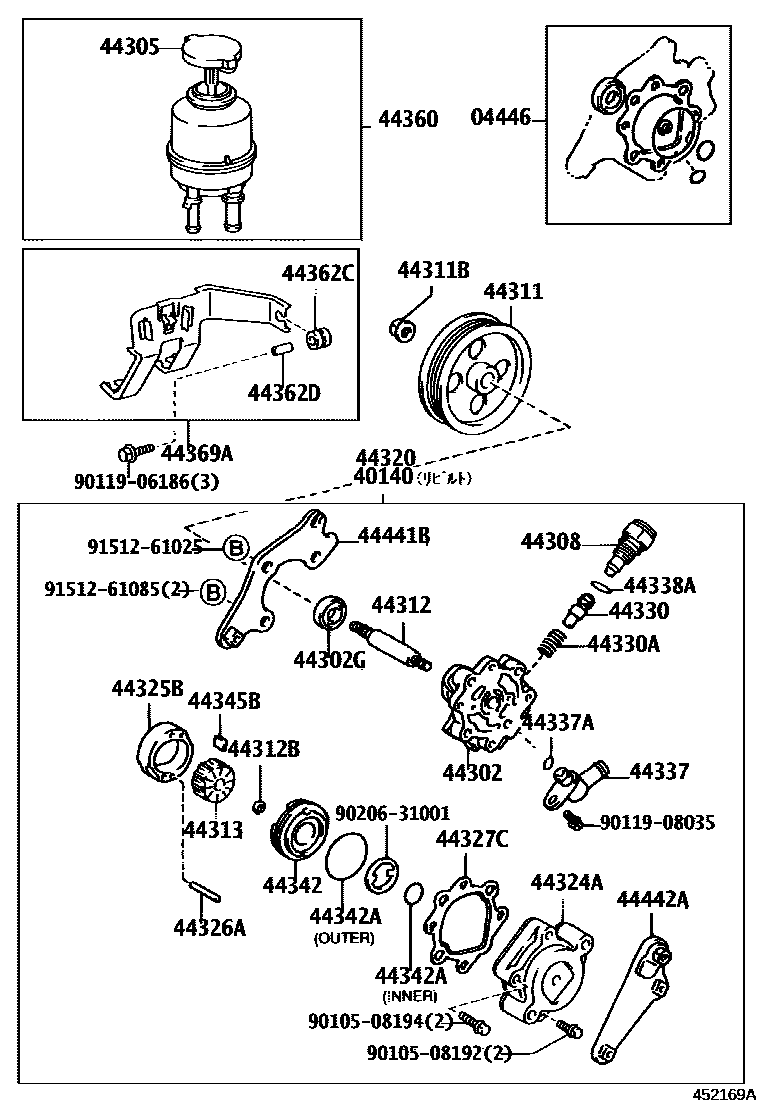

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
40140PUMP ASSY,VANE REBUILT
sub40140-58010
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-28060
44308UNION SUB-ASSY, PRESSURE PORT
44311BNUT(FOR VANE PUMP PULLEY)
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44324AHOUSING, PUMP, REAR
44325BRING, VANE PUMP CAM
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338ARING, O(FOR PRESSURE PORT UNION)
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)
44362DSPACER(FOR VANE PUMP OIL RESERVOIR)
44369ABRACKET, OIL RESERVOIR, NO.1
44441BBRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
9010508192
main90105-08192
9010508194
main90105-08194
9011906186
main90119-06186
9011908035
main90119-08035
9020631001
main90206-31001
9151261025
main91512-61025
9151261085
main91512-61085
37 parts on this diagram · 4 diagrams in section
