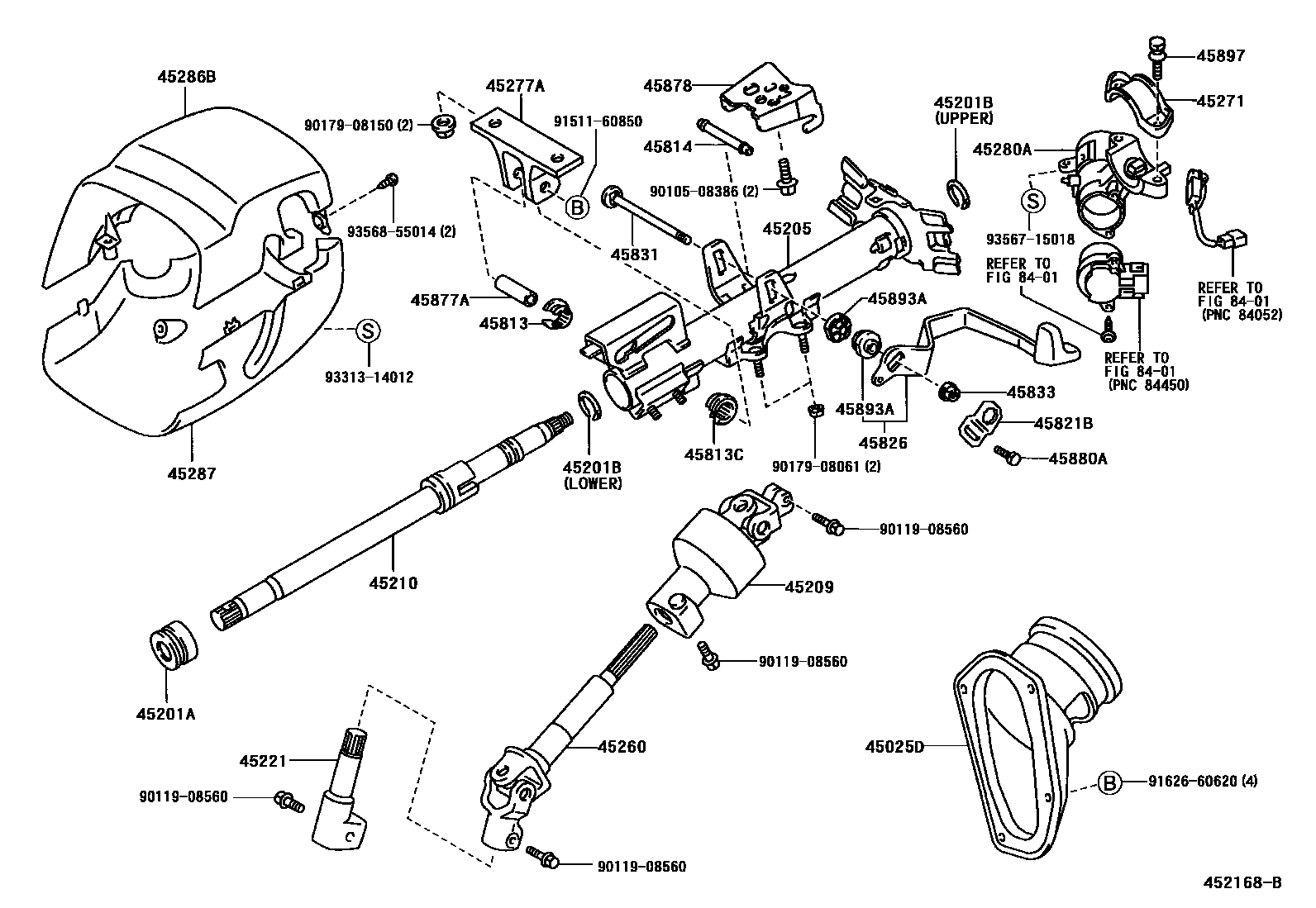

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-28040iACR30,MCR30199912-200304

main45025-28050iACR40,MCR40199912-200304

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-28010iACR30,40,MCR30,40200304

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iACR30,40,MCR30,40199912-200304

main90520-17269iACR30,40,MCR30,40199912-200304

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-28210iACR30,40200002-200304

main45205-28230iMCR30,40199912-200304

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-28010iACR30,40,MCR30,40199912-200304

main45209-28040iACR30,40,MCR30,40..AERAS,G,J,X200304

main45209-28050iACR30,40,MCR30,40..AERSS200304

45210SHAFT ASSY, STEERING MAIN

main45210-27110iACR30,40200304

main45210-28130iMCR30,40199912-200304

45221SHAFT, STEERING INTERMEDIATE

main45221-28070iACR30,MCR30200304

main45221-28080iACR40,MCR40200304

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-28060iACR30,MCR30200304

main45260-28070iACR40,MCR40199912-200304

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iACR30,40,MCR30,40199912-200304

45277ASUPPORT, TILT STEERING

main45277-28030iACR30,40200002-200304

main45277-28040iMCR30,40199912-200304

main45277-28050iACR30,40,MCR30,40200304

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-28280iACR30,40,MCR30,40199912-200304

45286BCOVER, STEERING COLUMN, UPR

main45286-28350-B0iACR30,40,MCR30,40..AERAS199912-200304

BLUISH GRAY,TRIM1#

sub45286-28360

main45286-28350-B1iACR30,40,MCR30,40..AERAS200204-200304

sub45286-28360

main45286-28350-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

sub45286-28360

main45286-28350-E1iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

SANDAL WOOD,TRIM0#

sub45286-28360

45287COVER, STEERING COLUMN, LWR

main45287-28390-B0iACR30,40,MCR30,40..G,J,X199912-200301

BLUISH GRAY,TRIM1#

main45287-28390-B1iACR30,40,MCR30,40..G,J,X199912-200301

DK.CHARCOAL,TRIM12

main45287-28391-B0iACR30,40,MCR30,40..AERAS200301-200304

BLUISH GRAY,TRIM1#

main45287-28391-B1iACR30,40,MCR30,40..G,J,X200301-200304

DK.CHARCOAL,TRIM12

main45287-28391-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main45287-28391-E1iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),SANDAL WOOD,TRIM0#

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-52010iACR30,40,MCR30,40199912-200304

45813CCOLLAR, TILT STEERING SUPPORT, NO.1

main45813-52020iACR30,40,MCR30,40199912-200304

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-52010iACR30,40,MCR30,40199912-200304

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-52010iACR30,40,MCR30,40200304

45826LEVER, STEERING TILT

main45826-26060iACR30,40,MCR30,40200402

main45826-28050iMCR30,40199912-200002

main45826-28051iACR30,40,MCR30,40200002-200304

45831BOLT, TILT LEVER LOCK, NO.1

main45831-52010iACR30,40,MCR30,40200304

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-52010iACR30,40,MCR30,40199912-200304

45877ASPACER, STEERING COLUMN BRACKET

main45877-52010iACR30,40,MCR30,40199912-200304

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-52010iACR30,40,MCR30,40199912-200304

45880ABOLT(FOR STEERING TILT LEVER)

main45832-12010iACR30,40,MCR30,40199912-200304

45893ASTOPPER, TILT STEERING PAWL

main45893-52010×2iACR30,40,MCR30,40199912-200304

45897BOLT, STEERING LOCK SET

main45897-12020×2iACR30,40,MCR30,40199912-200304

8401

9010508386

main90105-08386

9011908560

main90119-08560

9017908061

main90179-08061

9017908150

main90179-08150

9151160850

main91511-60850

9162660620

main91626-60620

9331314012

main93313-14012

9356715018

main93567-15018

9356855014

main93568-55014

35 parts on this diagram · 2 diagrams in section
