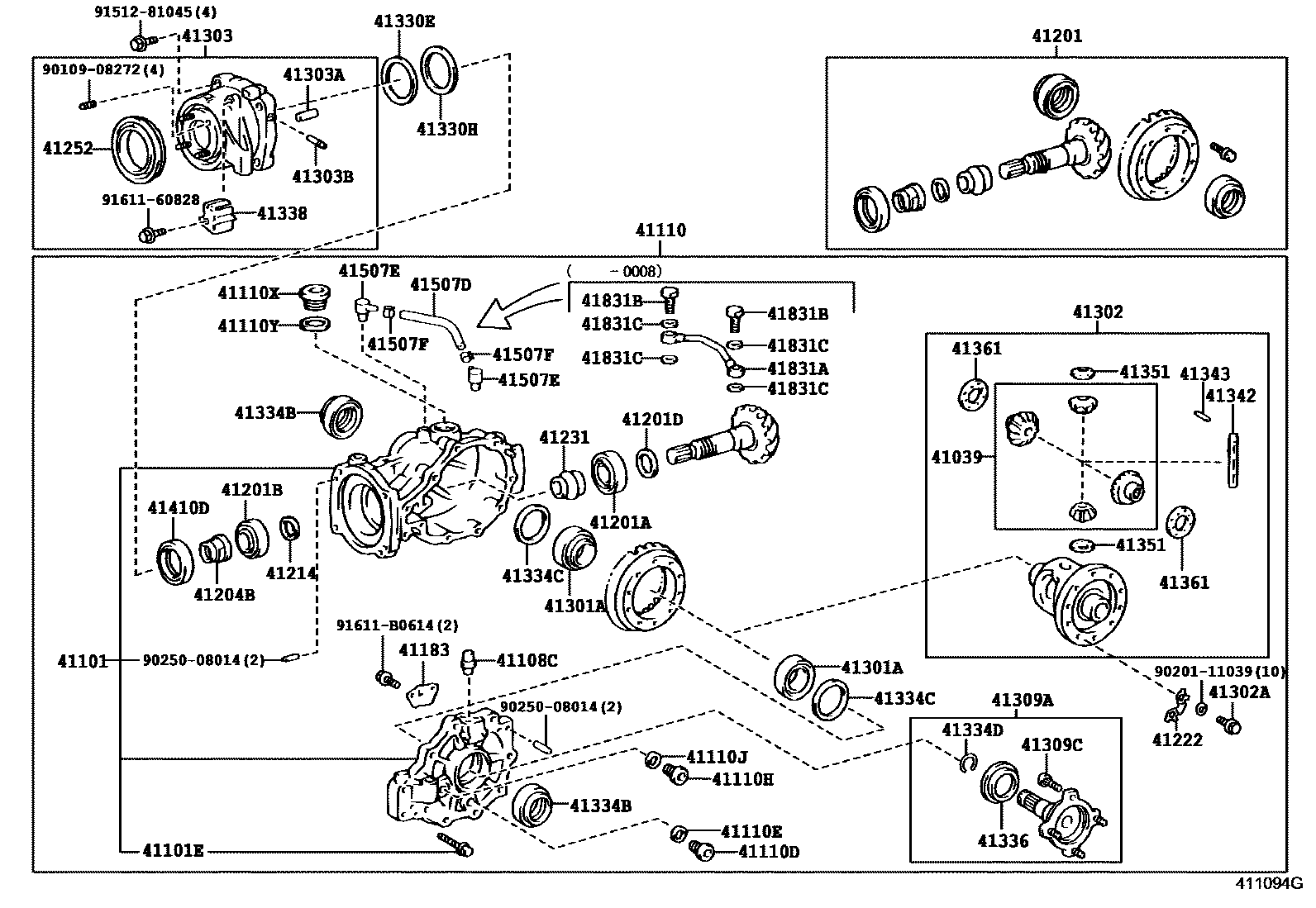

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
sub41101-44012
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
sub41110-28380
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110XPLUG (FOR DIFFERENTIAL INSPECTION)
41110YGASKET (FOR DIFFERENTIAL INSPECTION PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-80690
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41303COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL
sub41303-28011
41303APIN, STRAIGHT (FOR ELECTRO MAGNETIC CONTROL COUPLING)
41303BTUBE (FOR ELECTRO MAGNETIC CONTROL COUPLING)
41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330HSPACER (FOR TRANSMISSION COUPLING)
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
sub90311-42046
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41338BRACKET, CONNECTOR CLAMP
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41410DSEAL, OIL DIAPHRAGM
41507EELBOW,DIFFERENTIAL PRESSURE CONTROL HOSE
sub90407-10027
41831ATUBE, DIFFERENTIAL PRESSURE CONTROL
41831BBOLT, UNION (FOR DIFFERENTIAL PRESSURE CONTROL)
41831CGASKET (FOR DIFFERENTIAL PRESSURE CONTROL TUBE)
9010908272
main90109-08272
9020111039
main90201-11039
9025008014
main90250-08014
9151281045
main91512-81045
9161160828
main91611-60828
91611B0614
main91611-B0614
53 parts on this diagram · 2 diagrams in section
