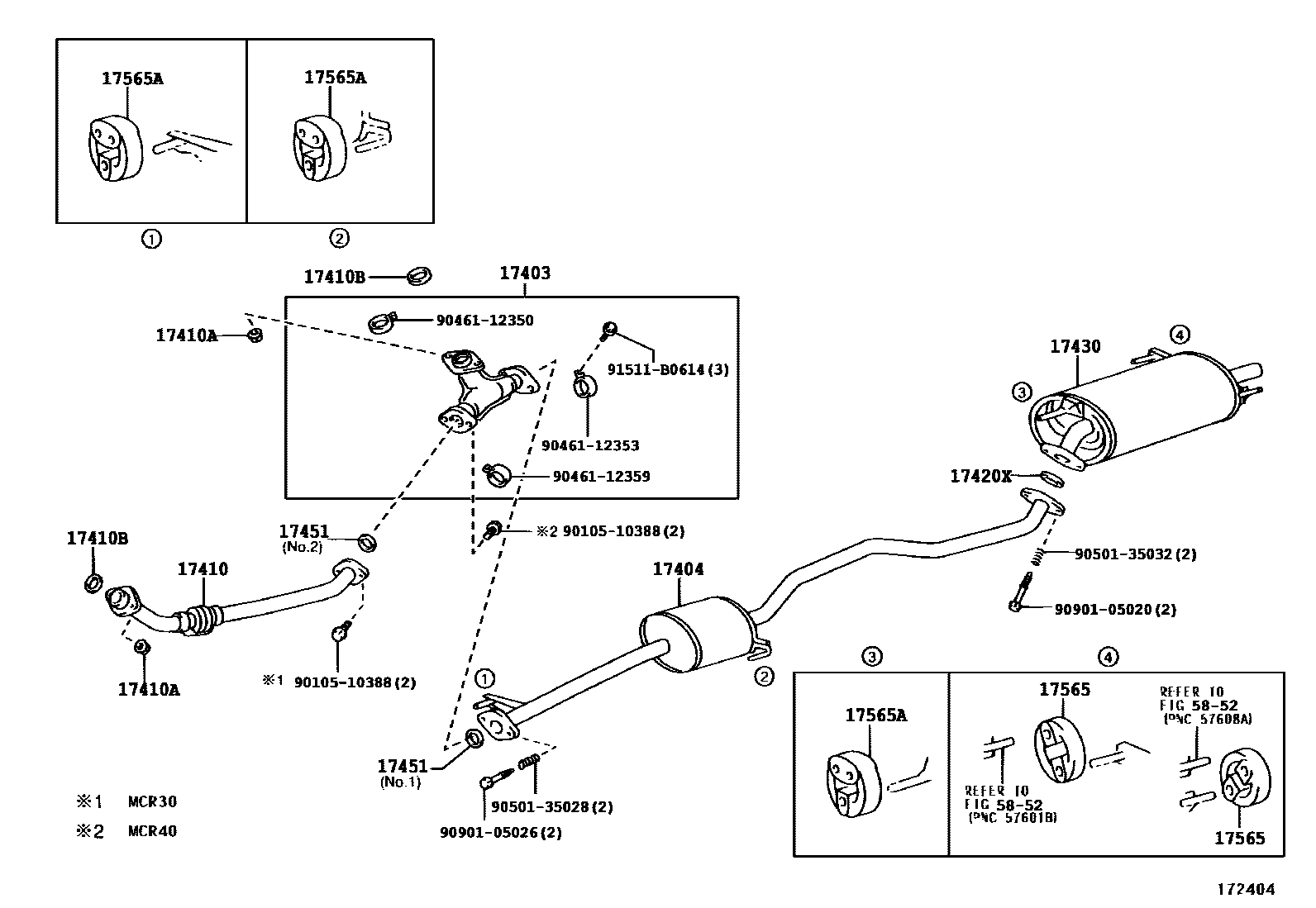

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1�������(�� ��-��)

17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3

main17403-20090i1MZFE..MCR30199912-200304

main17403-20100i1MZFE..MCR40199912-200304

17404PIPE SUB-ASSY, EXHAUST FORKED

main17404-20050i1MZFE..MCR30199912-200304

sub17404-20051

main17404-20060i1MZFE..MCR40199912-200304

main17404-20100i1MZFE..MCR30200304-200503

main17404-20101i1MZFE..MCR30200503

main17404-20110i1MZFE..MCR40200304-200503

main17404-20111i1MZFE..MCR40200503

17410PIPE ASSY, EXHAUST, FRONT

main17401-20080i1MZFE..MCR30199912-200304

main17401-20090i1MZFE..MCR40200304-200601

main17410-28140i2AZFE..ACR30200002-200304

sub17410-28170

main17410-28160i2AZFE..ACR40200002-200304

main17410-28420i2AZFE..ACR30200304-200601

main17410-28430i2AZFE..ACR40200304-200601

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×4i1MZFE..MCR30,40199912-200304

17410BGASKET, EXHAUST PIPE

main17451-22070i2AZFE..ACR30,40200304

main17451-74040i2AZFE..ACR30,40200002-200009

main90917-06065×2i1MZFE..MCR30,40200304

17420PIPE ASSY, EXHAUST, CENTER

main17403-28010i2AZFE..ACR30200002-200304

sub17403-28011

main17403-28020i2AZFE..ACR40200002-200304

main17420-28300i2AZFE..ACR30200304-200503

main17420-28301i2AZFE..ACR30200503

main17420-28310i2AZFE..ACR40200304-200503

main17420-28311i2AZFE..ACR40200503

main17420-28420i2AZFE..ACR30..08S200304-200503

main17420-28421i2AZFE..ACR30..08S200503

mainC169022010i1MZFE..MCR30..08S200304-200503

mainC169022011i1MZFE..MCR30..08S200503

17420XGASKET, EXHAUST PIPE, CENTER

main17451-20010i2AZFE,1MZFE..ACR30,40,MCR30,40199912-200304

main17451-74060i2AZFE,1MZFE..ACR30,40,MCR30,40200503

17430PIPE ASSY, EXHAUST, TAIL

main17405-20010i1MZFE..MCR30,40..G,X199912-200304

main17405-20020i1MZFE..MCR30,40..AERAS199912-200304

sub17405-20021

main17405-28010i2AZFE..ACR30,40..G,J,X200002-200206

main17405-28011i2AZFE..ACR30,40..G,J,X200206-200304

main17405-28020i2AZFE..ACR30,40..AERAS200002-200204

main17405-28021i2AZFE..ACR30,40..AERAS200204-200304

sub17405-28022

main17430-20110i1MZFE..MCR30,40..G200304

main17430-20120i1MZFE..MCR30,40..AERAS,AERSS200304-200512

main17430-20121i1MZFE..MCR30,40..AERAS,AERSS200601

main17430-28480i2AZFE..ACR30,40..G,J,X200304

main17430-28490i2AZFE..ACR30,40..AERAS,AERSS200304-200512

main17430-28491i2AZFE..ACR30,40..AERAS,AERSS200601

mainC160922010i2AZFE,1MZFE..ACR30,MCR30..08S200304

17451GASKET, EXHAUST PIPE

main17451-74051i1MZFE..MCR30,40200304

main90917-06045i1MZFE..MCR30,40199912-200304

main90917-06073i2AZFE..ACR30,40200304

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-15140×2i2AZFE,1MZFE..ACR30,40,MCR30,40199912-200304

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-74320×3i2AZFE,1MZFE..ACR30,40,MCR30,40199912-200304

5852

9010510388

main90105-10388

9046112350

main90461-12350

9046112353

main90461-12353

9046112359

main90461-12359

9050135028

main90501-35028

9050135032

main90501-35032

9090105020

main90901-05020

9090105026

main90901-05026

91511B0614

main91511-B0614

21 parts on this diagram · 6 diagrams in section
