HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1���� 0003 1�� 0004 1�� 0005 1�� 0006 1�������� (�����) 0007 1�������� (�����) 0008 1�������� 0009 1�������� (����)

55907DCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-28090iTCR1#,2#..SPC199408-199912

main55907-95D03iTCR11,21199005-199408

55908CCABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95D01iTCR1#,2#..AERAS,G,STD,V199005-199912

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28060iTCR10,20..X199308-199710

main87050-28080iTCR11,21199308-199408

main87050-28090iTCR11,21199308-199408

main87050-28100iTCR10,20..X199308-199801

sub87050-28060

main87050-28170iTCR1#,2#..SPC199408-199912

sub87050-28180

main87050-28180iTCR1#,2#..SPC199408-199912

main87050-95D01iTCR10,20199302-199308

main87050-95D03iTCR10,20199302-199308

main87050-95D05iTCR11,21199005-199308

sub87050-95D06

main87050-95D06iTCR11,21199005-199308

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-28010iTCR1#,2#..SPC199408-199912

main87106-95D00iTCR1#,2#..AERAS,G,STD,V199005-199912

main87106-95D02iTCR11,21199005-199408

main87106-95D03iTCR1#,2#..AERAS,G,STD,V199005-199912

main87106-95D04iTCR1#,2#..SPC199005-199912

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28140iTCR1#,2#199308-199912

sub87107-28150

main87107-28150iTCR1#,2#..SPC199308-199912

main87107-95D04iTCR1#,2#199005-199308

sub87107-95D05

main87107-95D05iTCR1#,2#199005-199308

87114BCOVER, HEATER

main87114-28010iTCR1#,2#199010-199912

main87114-28020iTCR1#,2#..SPC199308-199912

main87114-28030iTCR1#,2#199504-199912

main87114-95D01iTCR10,20..X199302-199710

main87114-95D03iTCR1#,2#..AERAS,G,STD,V199005-199912

main87114-95D05iTCR1#,2#199005-199308

88326APLATE, COVER

main88326-28010iTCR11,21199005-199308

main88326-28040iTCR1#,2#199308-199912

main88326-95D01iTCR10,20199302-199308

sub88326-28010

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28110iTCR1#,2#199308-199912

sub88511-28041

sub88515-22240

sub88710-28870

sub90099-04381

main88501-95D03iTCR1#,2#199005-199308

88501DEVAPORATOR SUB-ASSY, COOLER, NO.2

main88511-28010iTCR1#,2#199005-199308

main88511-28041iTCR1#,2#199308-199912

88508FILTER SUB-ASSY, CLEAN AIR

main88508-28020iTCR1#,2#199005-199912

88515VALVE, COOLER EXPANSION

main88515-14062iTCR1#,2#199005-199303

sub88515-33010

main88515-20100iTCR1#,2#199308-199912

sub88515-22240

main88515-33010iTCR1#,2#199303-199308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-28060iTCR1#,2#199308-199912

main88539-95D03iTCR1#,2#199005-199308

88625THERMISTOR, COOLER, NO.1

main88625-60050iTCR10,20..X199302-199801

main88625-60060iTCR1#,2#..AERAS,G,STD,V199005-199912

main88625-60060iTCR10,20199302-199308

88669BHOSE, COOLER AIR

main88669-28020iTCR1#,2#..AERAS,G,STD,V199202-199912

main88669-95D00iTCR11,21199005-199202

sub88669-28020

88710ATUBE ASSY, AIR CONDITIONER

main88710-28720iTCR1#,2#199005-199308

main88710-28870iTCR1#,2#199308-199912

88723ALABEL, COOLER SERVICE CAUTION

main88723-20030iTCR1#,2#199308-199912

sub88733-30040

main88723-28120iTCR11,21199005-199009

main88723-28140iTCR1#,2#199011-199308

8871895D32PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D32

9009904381

main90099-04381

9009914044

main90099-14044

9009914045

main90099-14045

9048001548

main90480-01548

9048026014

main90480-26014

9162140816

main91621-40816

9165140816

main91651-40816

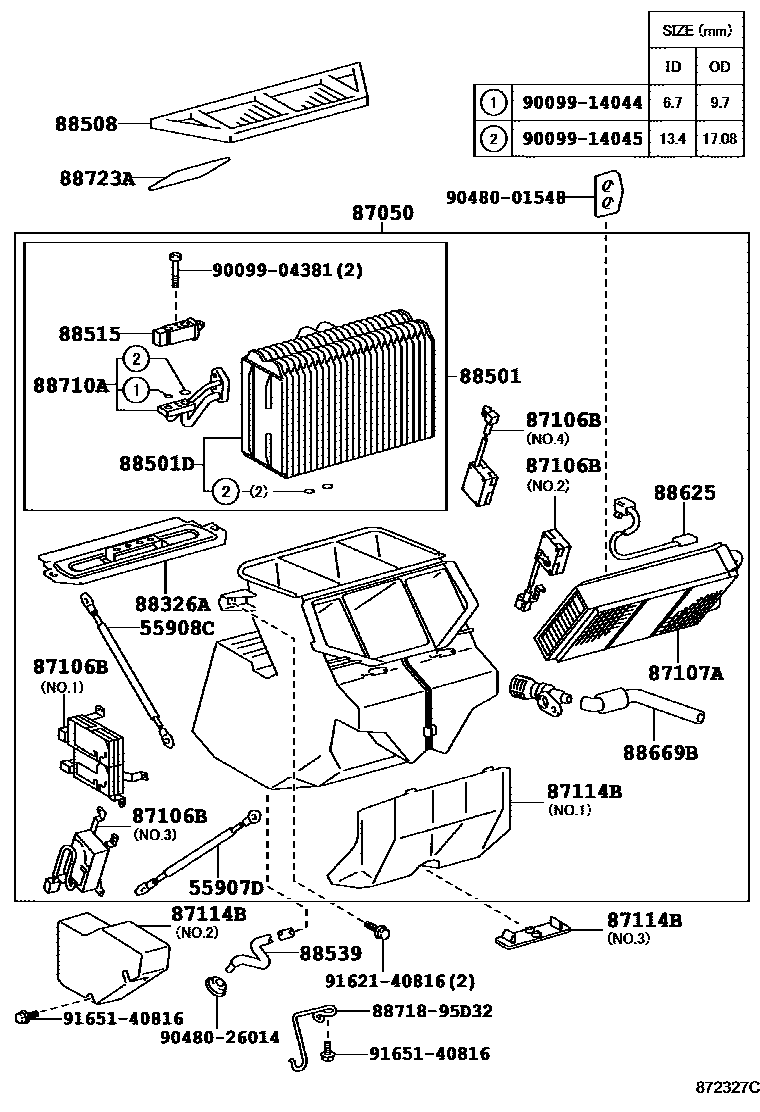

24 parts on this diagram · 9 diagrams in section
