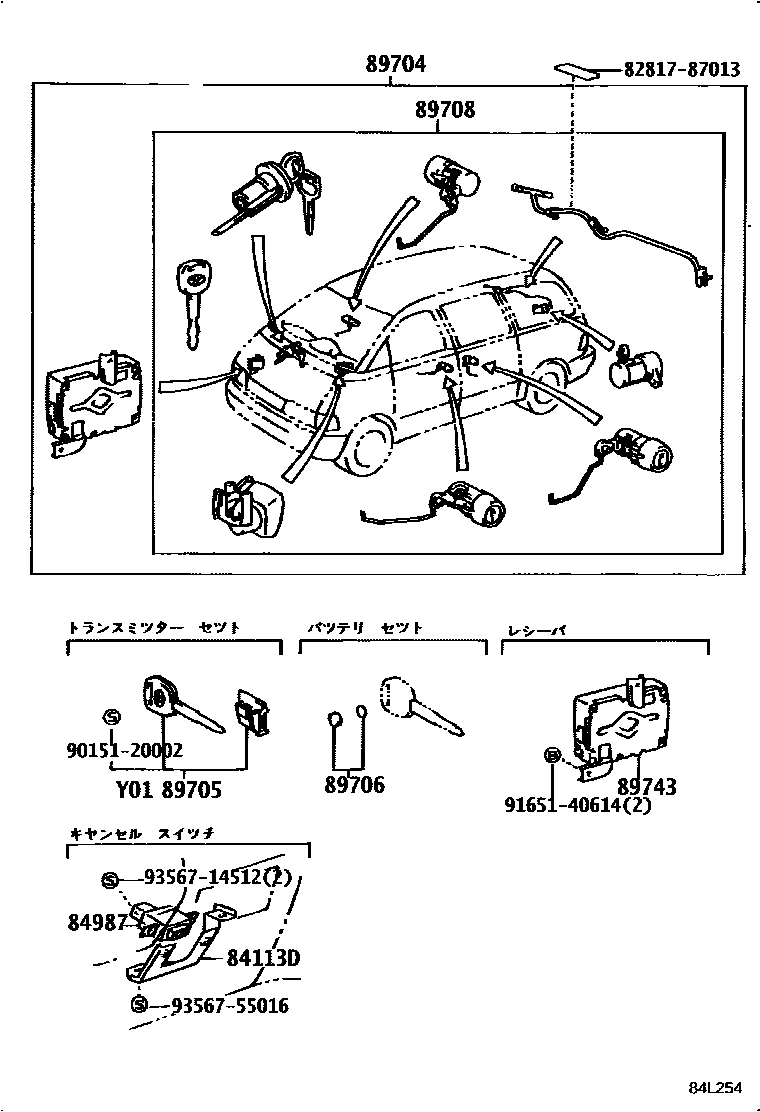

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1

84113DBRACKET, SWITCH

main84113-28010iTCR11,21199005-199308

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-30010iTCR11,21199005-199308

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-28010-03iTCR11,21199005-199308

GRAY,TRIM1#

sub89708-28020

main89704-28010-05iTCR11,21199005-199308

LIGHT GRAIGE,TRIM4#

sub89708-28020

main89704-28011iTCR11,21199308-199503

sub89708-28030

89705TRANSMITTER, DOOR CONTROL

main89705-28010iTCR11,21199005-199608

89706BATTERY SET, TRANSMITTER

main89706-50010iTCR1#,2#199005-199912

sub89745-48020

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-28030iTCR11,21199503-199608

main89708-28050iTCR1#,2#199608-199801

main89708-28051iTCR1#,2#199801-199810

main89708-28070iTCR1#,2#199810-199912

89743RECEIVER, DOOR CONTROL

main89743-28010iTCR11,21199005-199608

8281787013PROTECTOR, WIRING HARNESS, NO.1

main82817-87013

9015120002

main90151-20002

9165140614

main91651-40614

9356714512

main93567-14512

9356755016

main93567-55016

12 parts on this diagram · 3 diagrams in section
