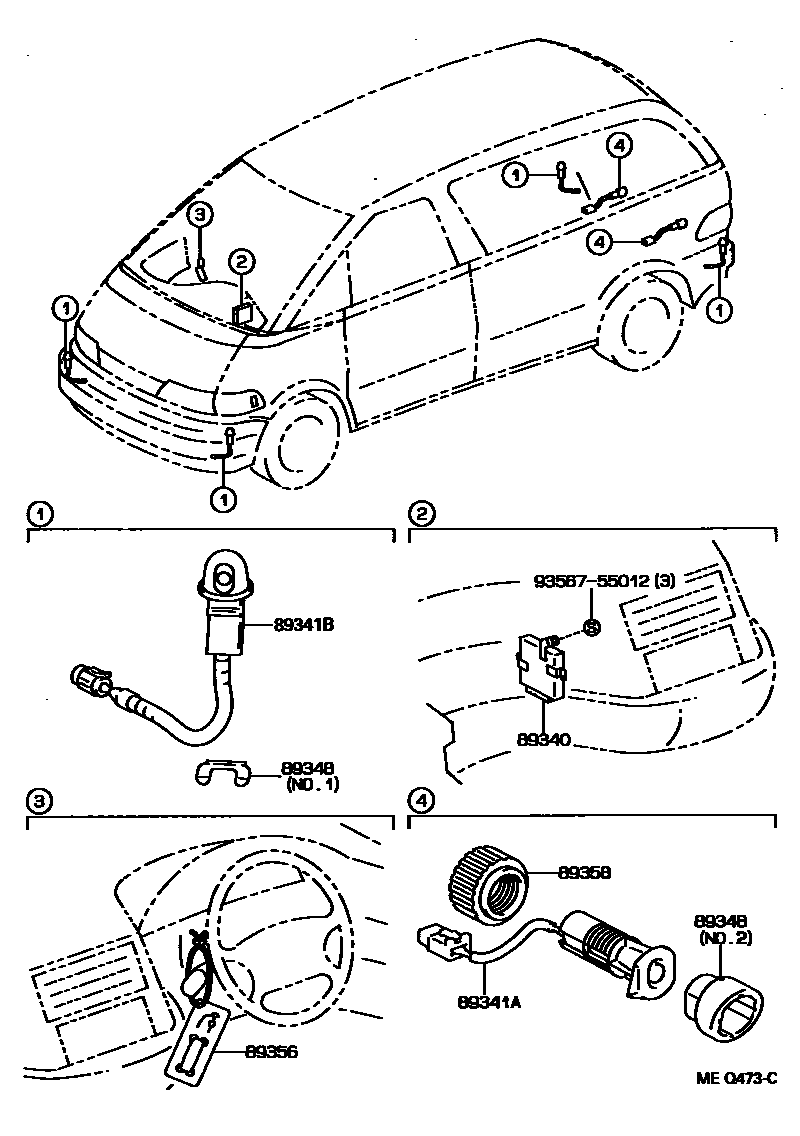

CLEARANCE & BACK SONAR

0001 1 0002 1

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-28010iTCR11,21199005-199108

main89340-28030iTCR11,21199108-199308

main89340-28050iTCR11,21199308-199608

main89340-28080iTCR1#,2#..G,V199608-199912

89341ASENSOR, ULTRASONIC, NO.1

main89341-28050-B0iTCR11,21199308-199408

GRAY M.,6L3 ,8H4

main89341-28050-B0iTCR11,21199108-199308

GRAY M.,6L3 ,8G2 ,8H4

main89341-28050-B0iTCR11,21199408-199608

GRAY M.,191 ,8H4

main89341-28050-E0iTCR11,21199408-199608

GRAY M.,046 ,193 ,3J7

main89341-28050-E0iTCR11,21199108-199408

GRAY M.,046 ,3J7 ,4K9

main89341-28200iTCR1#,2#..G,V199608-199912

89341BSENSOR, ULTRASONIC, NO.2

main89341-28010-03iTCR11,21199005-199104

GRAY M,046 ,3J7

sub89341-28011

main89341-28010-05iTCR11,21199005-199104

BROWN M.,4K9 ,4L6

sub89341-28011

main89341-28010-07iTCR11,21199005-199104

GRAY M.,6L3 ,8G2 ,8H4

sub89341-28011

main89341-28011-12iTCR11,21199104-199308

GRAY M.,6L3 ,8G2 ,8H4

sub89341-28100

main89341-28011-47iTCR11,21199104-199108

BEIGE M.,4K9 ,4L6

sub89341-28100

main89341-28011-47iTCR11,21199108-199308

BEIGE M.,4K9

sub89341-28100

main89341-28011-E0iTCR11,21199104-199308

GRAY M.,046 ,3J7 ,4K9

sub89341-28100

main89341-28100-B1iTCR11,21199308-199408

BLUISH GRAY METALLIC,6L3 ,8H4

main89341-28100-B1iTCR11,21199408-199608

BLUISH GRAY METALLIC,191 ,8H4

main89341-28100-E0iTCR11,21199408-199608

GRAY METALLIC,046 ,193 ,3J7

main89341-28100-E0iTCR11,21199308-199408

GRAY METALLIC,046 ,3J7 ,4K9

main89341-28190iTCR1#,2#..G,V199608-199912

sub89341-28220

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-22010iTCR1#,2#..G,V199005-199912

main89348-22010iTCR11,21199108-199608

main89348-28030iTCR11,21199108-199608

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-28010iTCR11,21199005-199108

main89356-28020iTCR1#,2#..G,STD,V199108-199912

89358NUT, ULTRASONIC SENSOR

main89358-28010iTCR11,21199108-199608

9356755012

main93567-55012

7 parts on this diagram · 2 diagrams in section
