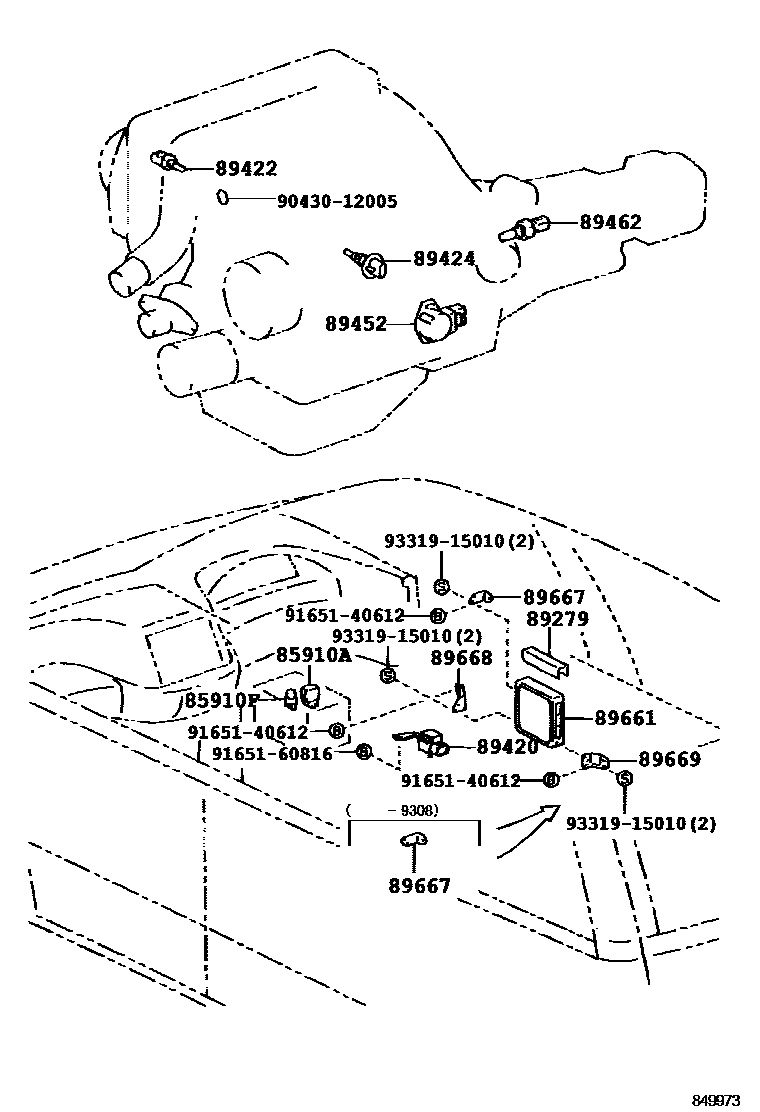

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iTCR1#,2#199005-199408

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iTCR1#,2#199005-199912

89279COVER, ENGINE CONTROL COMPUTER

main89279-28010iTCR1#,2#199005-199912

89420SENSOR ASSY, VACUUM

main89420-28050iTCR10,20..X199608-199801

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iTCR1#,2#199005-199912

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iTCR10,20..X199608-199801

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iTCR1#,2#199005-199401

main89452-20130iTCR1#,2#199608-199912

main89452-22090iTCR1#,2#199401-199608

89462SWITCH, START INJECTOR TIME

main89462-20020iTCR1#,2#199005-199408

89661COMPUTER, ENGINE CONTROL

main89661-28160iTCR11,21199005-199008

sub89661-28161

main89661-28161iTCR11,21199008-199104

sub89661-28162

main89661-28162iTCR11,21199104-199108

sub89661-28220

main89661-28220iTCR11,21199108-199302

main89661-28270iTCR1#,2#199302-199308

sub89661-28330

main89661-28330iTCR1#,2#199308-199408

main89661-28331iTCR10,20199408-199608

main89661-28400iTCR1#,2#199801-199912

main89661-28470iTCR10,20..X199608-199801

main89661-28521iTCR11,21199408-199412

sub89661-28522

main89661-28590iTCR11,21199412-199603

sub89661-28591

main89661-28591iTCR11,21199603-199608

main89661-28780iTCR1#,2#..SPC199608-199801

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28020iTCR1#,2#199005-199912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28010iTCR1#,2#199005-199308

main89668-28040iTCR1#,2#199308-199912

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89667-28020iTCR1#,2#199005-199308

main89669-28030iTCR1#,2#199308-199801

main89669-28040iTCR1#,2#..SPC199408-199912

9043012005

main90430-12005

9165140612

main91651-40612

9165160816

main91651-60816

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
