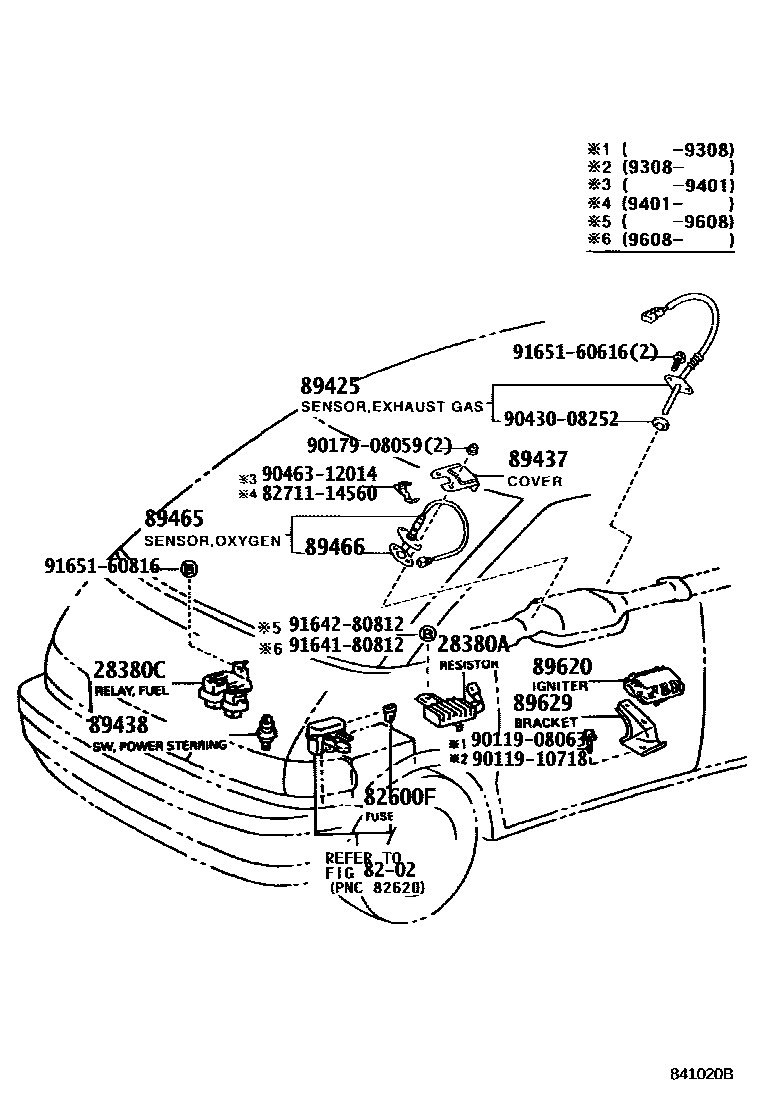

28380ARESISTER, FUEL PUMP

main23080-76010i2TZFZE..TCR1#,2#199408-199912

28380CRELAY ASSY, FUEL PUMP

main28380-76010i2TZFZE..TCR1#,2#199408-199912

8202

82600FFUSE, FUSE BLOCK

main90982-07011iTCR1#,2#199005-199912

main90982-09001iTCR1#,2#199308-199912

main90982-09002iTCR1#,2#199005-199912

main90982-09003iTCR1#,2#199005-199912

main90982-09004iTCR1#,2#199005-199912

main90982-09005iTCR1#,2#199005-199912

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-29455iTCR1#,2#199005-199408

main89425-29895iTCR1#,2#199408-199801

89437COVER, SENSOR

main89437-28080iTCR1#,2#..SPC199408-199912

89438SWITCH, POWER STEERING OIL PRESSURE

main89438-10010iTCR11,21199408-199912

89465SENSOR, OXYGEN

main89465-29495iTCR1#,2#199005-199408

main89465-29675iTCR1#,2#199408-199912

89466GASKET, OXYGEN SENSOR

main89466-20020iTCR1#,2#..EFI199005-199801

main89466-20030iTCR1#,2#..SPC199408-199912

89620IGNITER ASSY

main89621-12010iTCR1#,2#199005-199308

main89621-12050iTCR1#,2#..EFI199308-199608

main89621-26010iTCR11,21199408-199912

89629BRACKET, IGNITER ASSY

main89629-28020iTCR11,21199005-199108

sub89629-28030

main89629-28030iTCR1#,2#199108-199912

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

9011908063

main90119-08063

9011910718

main90119-10718

9017908059

main90179-08059

9043008252

main90430-08252

9046312014

main90463-12014

9164180812

main91641-80812

9164280812

main91642-80812

9165160616

main91651-60616

9165160816

main91651-60816

21 parts on this diagram · 10 diagrams in section
